Top busbar

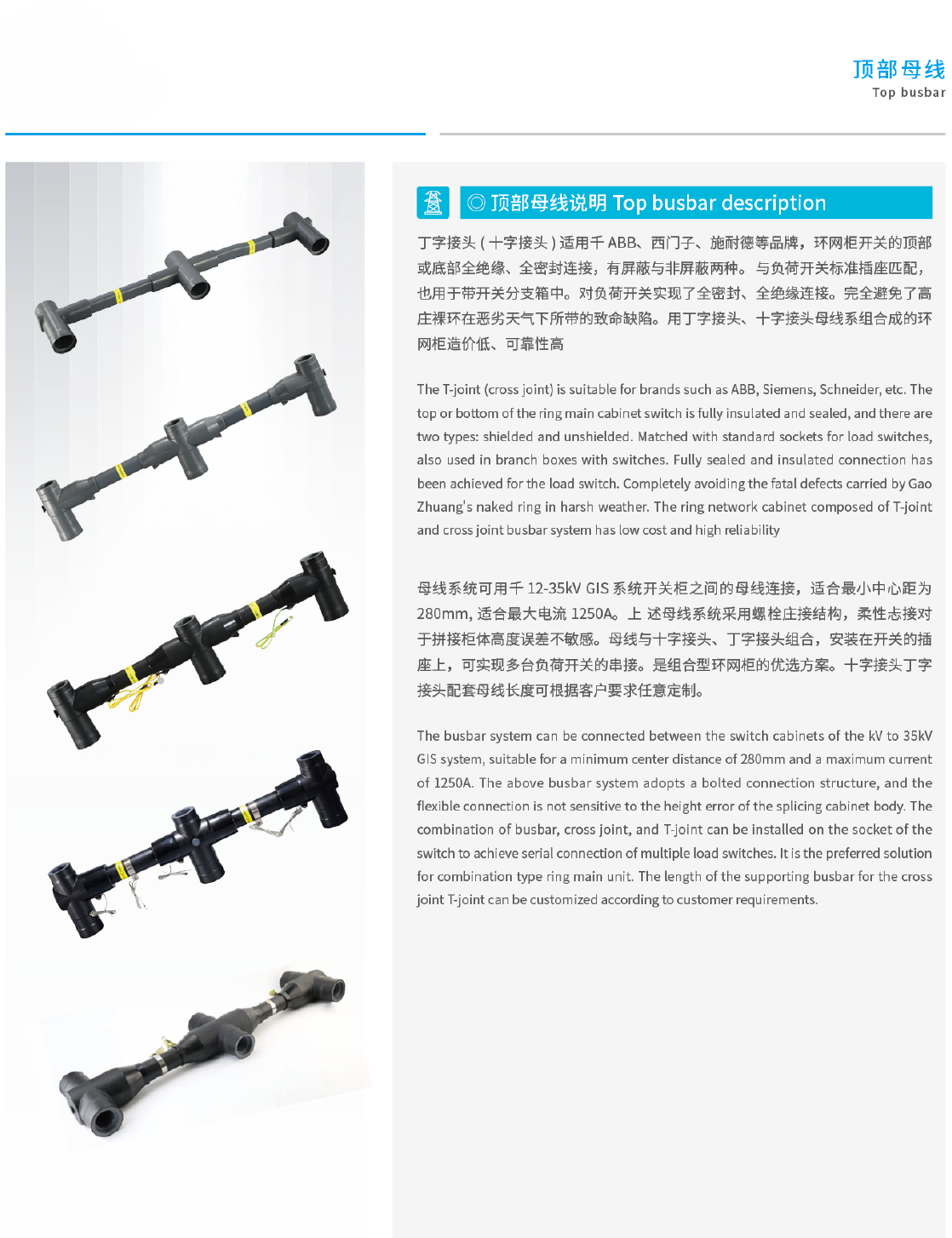

The T-joint (cross joint) is suitable for brands such as ABB, Siemens, Schneider, etc. Thetop or botom of the ring main cabinet switch is fully insulated and sealed, and there aretwo types: shielded and unshielded. Matched with standard sockets for load switches,
also used in branch boxes with switches. Fully sealed and insulated connection hasbeen achieved for the load switch. Completely avoiding the fatal defects carried by GaoZhuang's naked ring in harsh weather. The ring network cabinet composed of T-joint
and cross joint busbar system has low cost and high reliability

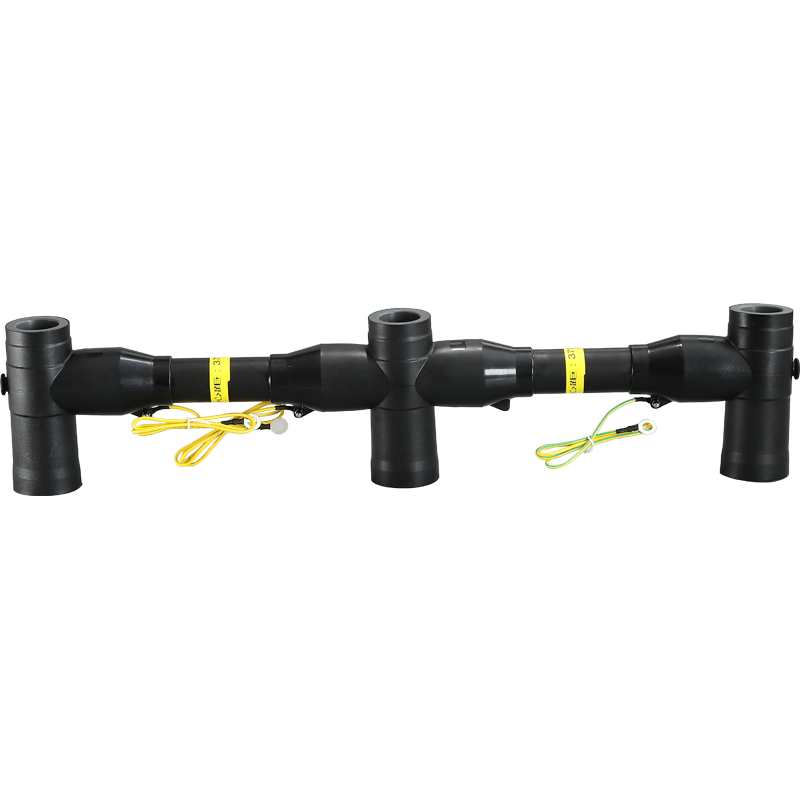

The busbar system can be connected between the switch cabinets of the kV to 35kVGIS system, suitable for a minimum center distance of 280mm and a maximum currentof 1250A. The above busbar system adopts a bolted connection structure, and theflexible connection is not sensitive to the height error of the splicing cabinet body. Thecombination of busbar, cross joint, and T-joint can be installed on the socket of theswitch to achieve serial connection of multiple load switches. It is the preferred solutionfor combination type ring main unit. The length of the supporting busbar for the cross
joint T-joint can be customized according to customer requirements.
