JLSZXW3-17.5F 17.5kV Outdoor Three-Phase Epoxy Resin Type Combined Transformer

Name: JLSZXW3-17.5F 17.5kV Outdoor Three-Phase Epoxy Resin Type Combined Transformer
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1587
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	JLSZXW3-17.5F 17.5kV Outdoor Three-Phase Epoxy Resin Type Combined Transformer
Rated frequency	50/60Hz
Rated insulation voltage	12kV
Series	JLSZXW

Description

Product Overview

The transformer is made up of three single phase combined transformers.It can be used outdoor, Its highest voltage for equipment can be 17.5kV.The JLSZXW3-17.5F is a 17.5kV outdoor three-phase combined transformer, integrating current and voltage transformation for outdoor grid metering, monitoring, and protection.Epoxy resin encapsulation delivers top insulation, weather resistance (moisture, dust, UV, temperature), and mechanical strength, suiting harsh outdoor areas.Highly accurate in three-phase conversion, it meets metering standards, aiding energy measurement and grid management (load balancing, fault detection), with seamless outdoor integration.Compact with standardized mounts, it eases installation and works with common equipment. Epoxy resists corrosion/aging, reducing maintenance and extending life.Ideal for outdoor substations, distribution lines, industrial feeders—blending reliability, precision, durability for 17.5kV systems.

Technical Data

Installation site： Outdoor
Rated Frequency：50/60Hz
Burden power factor：COSФ=0.8(lagging)
Technical standard accords wiht IEC 60044-1&2, IEC 61869-1&2&3

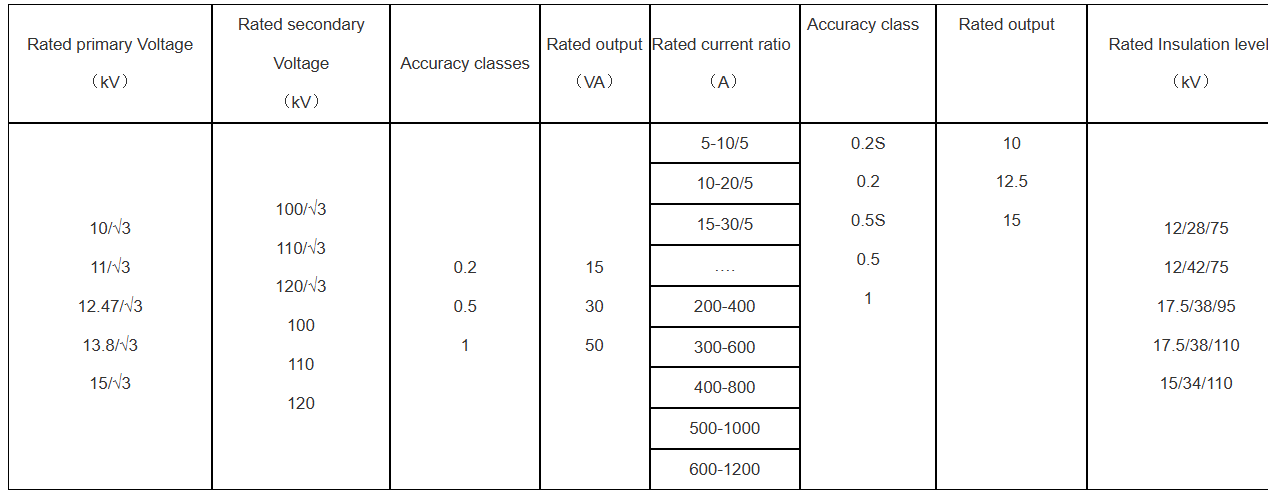

Specification

Note:Upon request we are glad to offer transformers according to other technical specs.

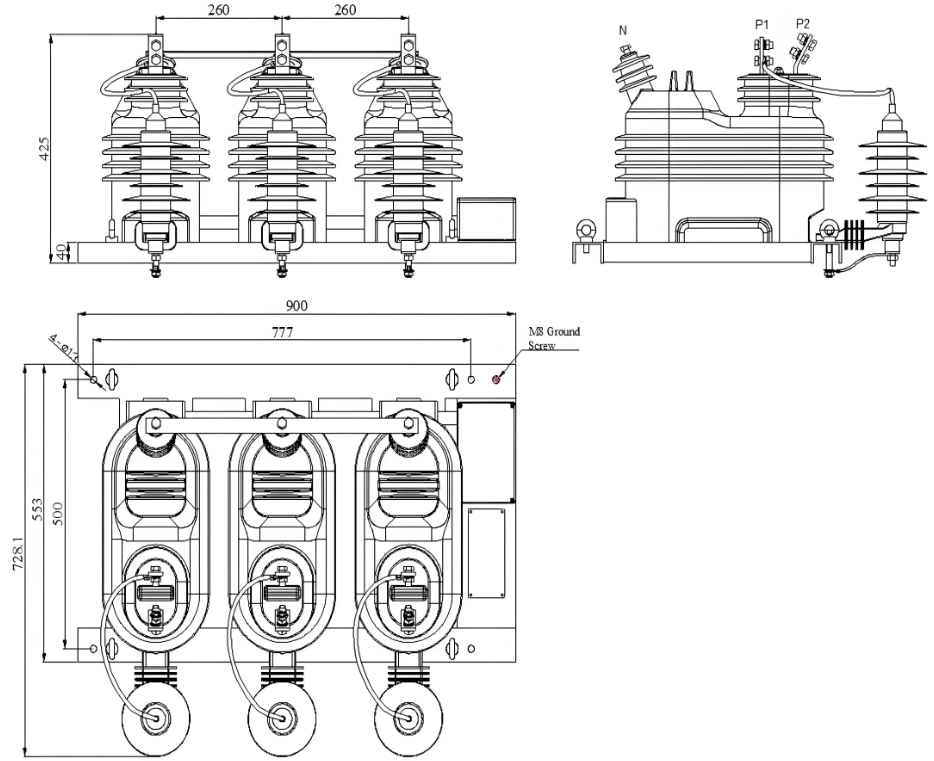

Outline drawing
