JLSZXW2-24 24kV Outdoor Three-Phase combined Combined Transformer

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	JLSZXW2-24 24kV Outdoor Three-Phase combined Combined Transformer
Rated frequency	50/60Hz
Rated insulation voltage	24kV
Series	JLSZXW

Product Detail

Product Overview

This three phase, six compositions combined CT&VT, consists of three semi-insulation VTs of Y-Y wiring and three CTs series connected with phase A,B,C. Secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 24kV for metering/measuring measurement in power system.

Features

use high properties iron core to meet high accuracy,big burden etc.
use epoxy resin cast insulation structure to improve anti-pollution,anti-moisture etc.
use full-sealed cast insulation type.

Technical Data

Outdoor use
Cast-resin insulated
Frequency 50Hz or 60Hz
Rated insulation level: 24/50/125kV
Standards: IEC 60044-1 IEC 61869-1&2

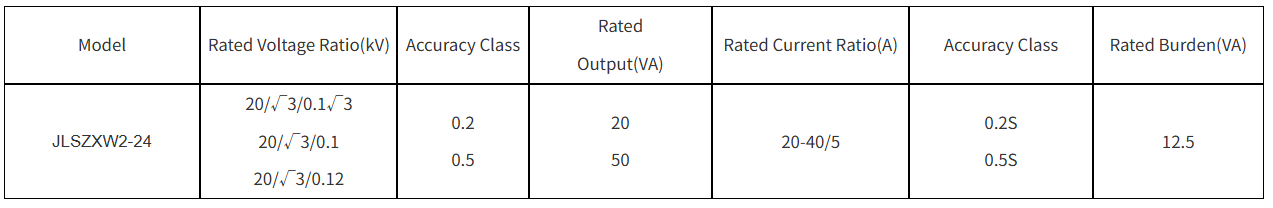

Specification

Note:Upon request we are glad to offer transformers accordign to other technical specs.

Application:use for highest voltage for equipments no more than 17.5kV,for current/voltage measurement in power system.

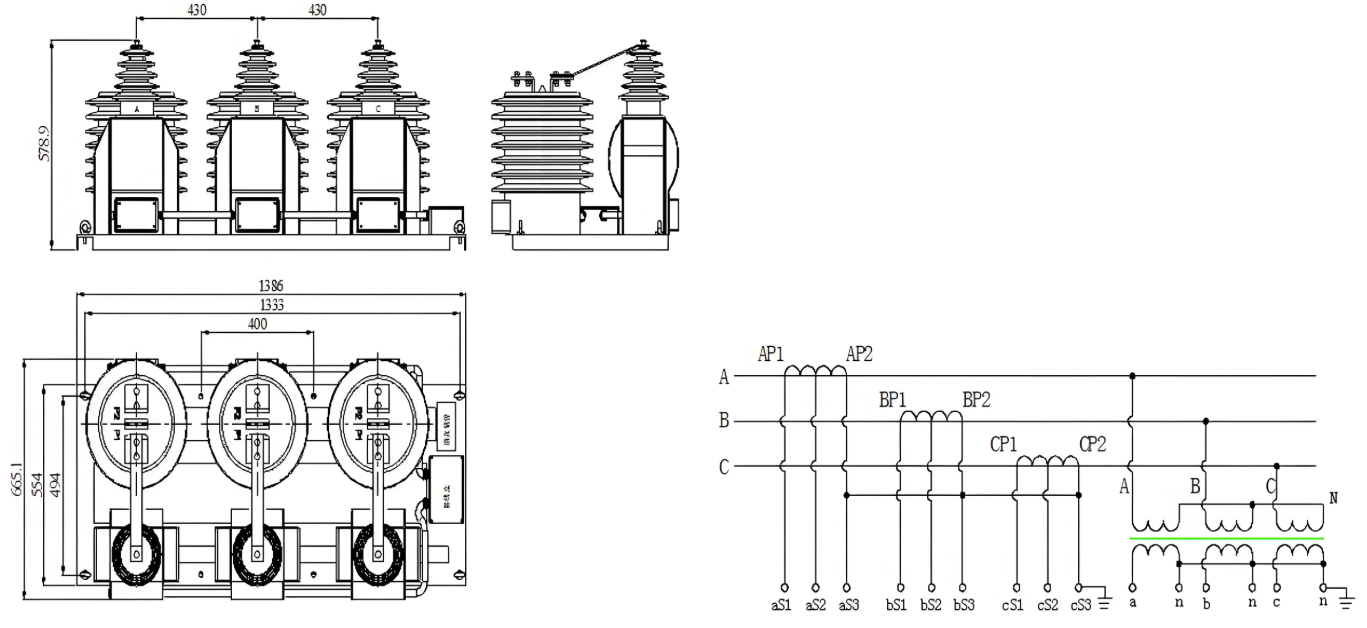

Drawing and Wiring
