JLSZXW1-36 outdoor three phase combined transformer
Key attributes
| Brand | Wone Store |
| Model NO. | JLSZXW1-36 outdoor three phase combined transformer |
| Rated frequency | 50/60Hz |
| Rated insulation voltage | 36kV |
| Series | JLSZXW |
Product descriptions from the supplier
Product Overview
This three phase combined CT&VT consists of three semi-insulation VTs and three CTs. VT connected with CT terminal P1, CT series connected with phase A(B,C), secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 40.5kV for current/voltage measurement in power system.
Technical Data:
- Installation site: outdoor
- Rated Frequency: 50/60Hz
- Burden power factor: Cosφ=0.8（lagging）
- Technical standard accords with IEC 60044-1＆2,IEC 61869-1 & 2 & 3

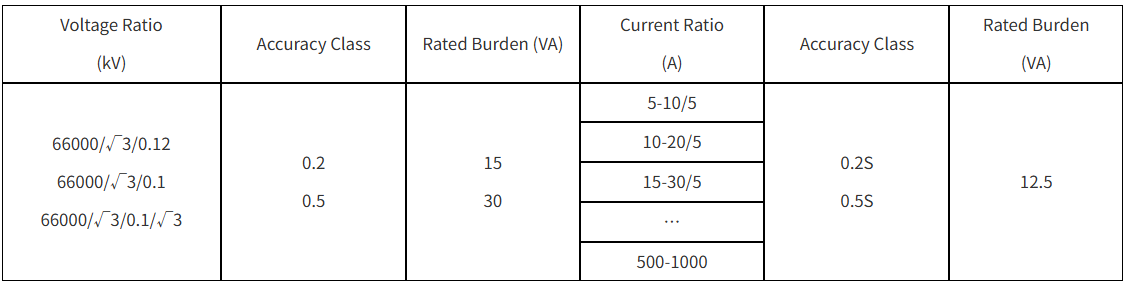

Main technical parameter:
Rated frequency: 50/60Hz:
Rated insulation level: 36/70/170kV (IEC) or 40.55/95/200kV (GB)

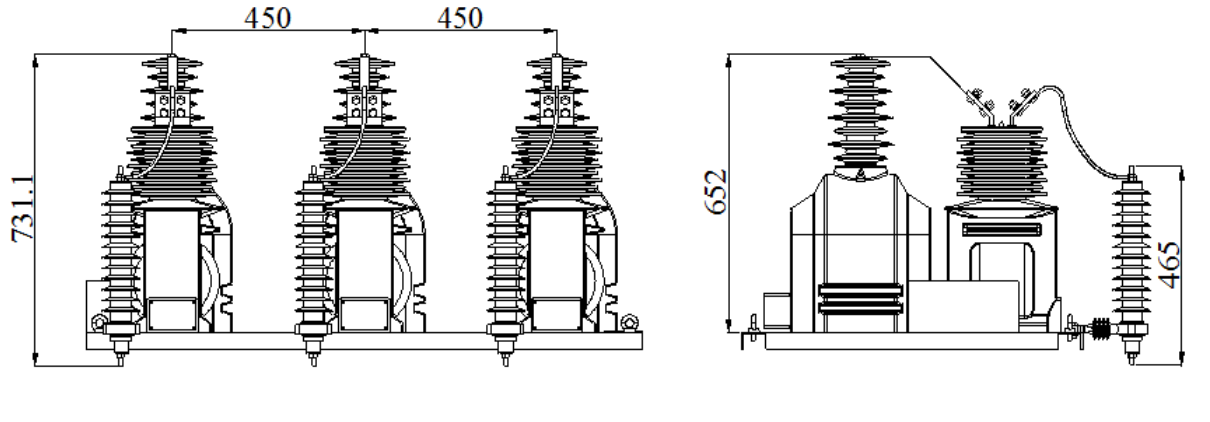

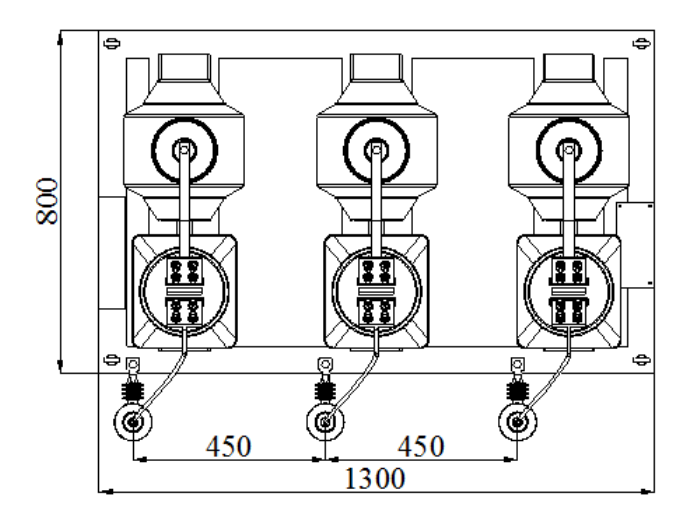

Outline drawing:

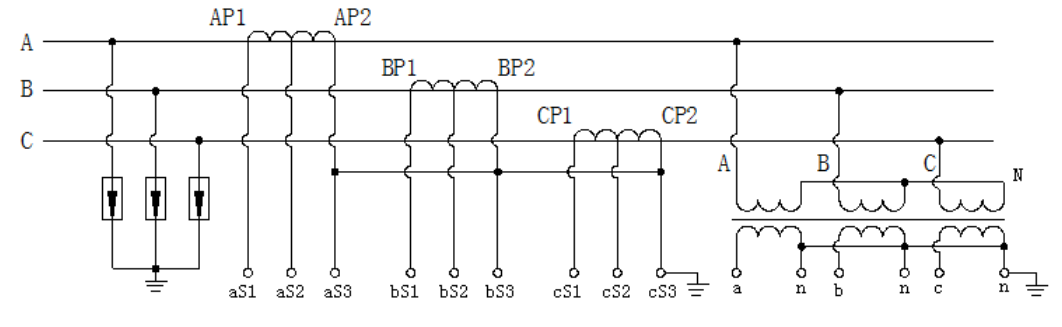

Wiring Diagram:
