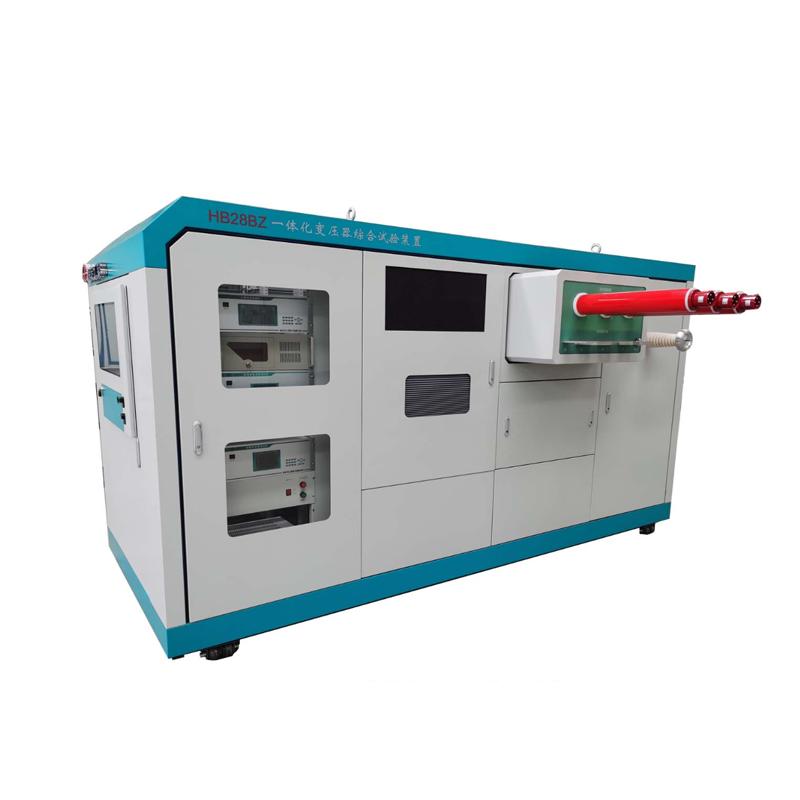

Integrated Transformer Comprehensive Test Device
Key attributes
| Brand | Switchgear parts |
| Model NO. | Integrated Transformer Comprehensive Test Device |
| Rated normal current | 5000A |
| Series | HB28BZ |
Product descriptions from the supplier
Features
The experimental system can detect distribution transformers, American style box type substations, and European style box type substations.
One wiring can complete testing projects such as direct resistance, transformation ratio, on load switch, no-load test, load test, induction withstand voltage, temperature rise test, etc. It can also perform automatic tests such as insulation, dielectric loss, power frequency withstand voltage, zero sequence impedance, etc.
The testing system is equipped with a 20kV high-voltage switching device and a 5000A high current fast short-circuit switching device, which can automatically complete no-load, load, zero sequence impedance, and temperature rise tests. The high-voltage output device can be extended for easy wiring of the test sample.
The experimental system is equipped with a dedicated error testing device, which can quantitatively analyze testing errors and obtain accurate test results
The experimental system has an LED Chinese character display protection screen, which can display the system's working status at any time to ensure the safety of the testing personnel
The experimental system has information technology capabilities and completes data exchange through grid and cloud platform management system connection.
| Class C test equipment | Model | Technical parameters |
|---|---|---|
| DC resistance testing unit | HB5851 | Automatic current testing: 5mA, 40mA, 200mA, 1A,5A,10A |
| dielectric loss testing unit | HB5805 | Output voltage: 100V,250V,500V,1000V,2500V,5000V Short-circuit current: 5mA |
| voltage ratio group testing unit | HB7601 | Range: Capacitance: 3pF~60000pF, Dielectric loss: 0~10%, Ratio: 1-3000 Measurement accuracy: Capacitance: ±(1%× reading + 1pF), Dielectric loss: ±(1%× reading + 0.0004), Ratio: Class 0.2 |
| Impedance test unit | HB6605 | Range: Capacitance: 3pF~60000pF, Dielectric loss: 0~10%, Ratio: 1-3000 Measurement accuracy: Capacitance: ±(1%× reading + 1pF), Dielectric loss: ±(1%× reading + 0.0004), Ratio: Class 0.2 |
| test unit power analyzer | HB2000 | Measurement Range: 0.9 to 10,000; Measurement Accuracy: ±0.2% |
| short-circuit power tester | HB2813 | Voltage Measurement Ranges: 50V,100V,250V,500V (phase voltage); Voltage Measurement Error: ±(0.05% reading + 0.05% range); Current Measurement Ranges: 1A,5A,10A,20A,50A,100A; Current Measurement Error: ±(0.05% reading + 0.05% range) |
| three-phase sinusoidal frequency conversion test power supply | HB28YZ | Voltage Measurement Error: ±(0.2% reading + 0.2% range); Current Measurement Error: ±(0.2% reading + 0.2% range); Power Measurement Error: ±(0.5% reading + 0.5% range) |
| test transformer | YDQ-10/50 | Rated Capacity: 30kVA; Output Voltage: 600V,850V; Output Frequency: 50-200 Hz |
| voltage divider | FC-50 | Rated Capacity: 10kVA; Output Voltage: 50kV |
| high-voltage peak meter | HB2601 | Rated Voltage: 50kV with 1.5% measurement accuracy |
| compensation capacitor bank | HB2819W | Measurement Range: 0-50kV with 1% precision |
| electric high-current switch | HB29GK3 | Rated Voltage: 690V; Compensation Capacity: 260kvar |
| electric disconnect switch | HB29GK2 | Rated Current: 5000A (3-phase) |
| ground conduction resistance tester | HB5878 | Rated Voltage: 10kV; Rated Current: 200A (10A auxiliary contacts) |
| single-phase current source | HB2819Z-1 | Automatic test currents: 200mA, 1A,5A,10A.10A:0.5mΩ~800mΩ (5A): 2mΩ~20,1A:5mΩ~10Ω |
| control system | Features automatic testing switching, measurement range adjustment, low-voltage short-circuit voltage measurement, compensation control, data communication, and safety protection systems. | |
| computer-based system and software | HB2819GL-1 | Test system login, test personnel management, test sample identification, test item setting, test data setting, project switching, status reading, data uploading, environmental parameter reading and judgment. |
| equipment structure and accessories | HB2819ZN-1 | Equipment carrying, high voltage electric switch switching, low voltage electric switch switching, outgoing car drive, high voltage electrical connection, sealing structure. |
