| Brand | Xinyouxiang |
| Model NO. | Integrated Low Voltage Cabinet Test Device |
| type | Integrated testing platform |
| Series | HB68DG |

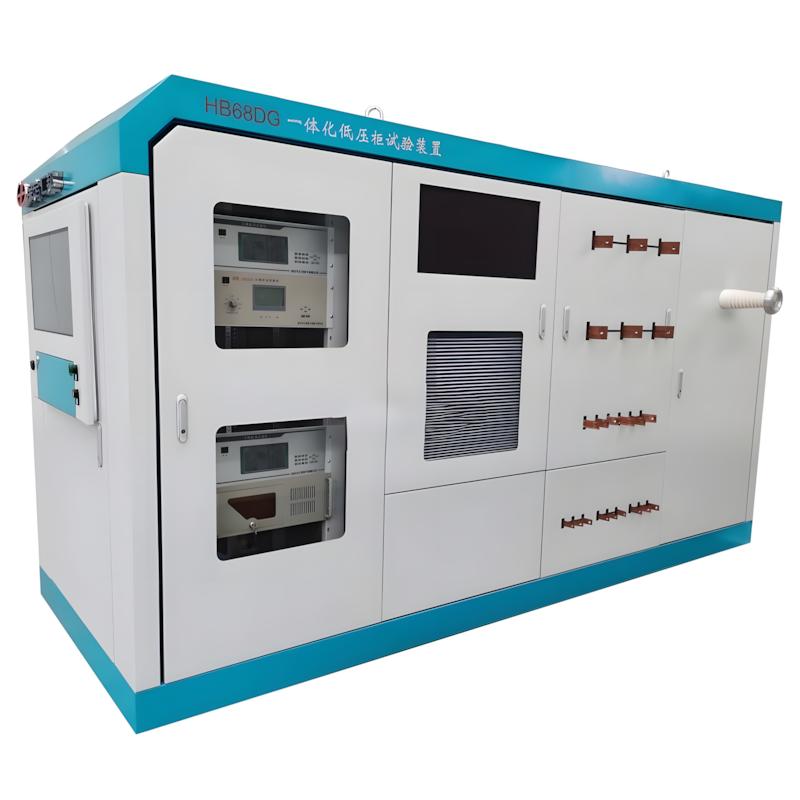

The experimental device adopts an integrated design and is centrally controlled by an industrial computer to automatically complete various electrical tests of high-voltage switch equipment. At the same time, this workstation is equipped with HB37TS switchgear lifting test device and HB37PZ mechanical collision impact test device, which can meet the B-level testing and inspection of low-voltage cabinet equipment.
Features
The testing system can be used to detect low voltage switchgear such as JP cabinets, 0.4KV cable branch boxes, and low voltage switchgear,
The experimental system can complete multiple tests such as dielectric performance, protection level of complete equipment, power on operation test, power frequency overvoltage protection test, temperature rise test, etc.
The experimental system integrates dielectric strength testing unit, grounding wire resistance testing unit, insulation resistance testing unit, impulse voltage testing device, multi-channel three-phase high current generator, multi-channel AC/DC operating power supply and other equipment. All equipment is controlled by an industrial computer and automatically completes various tests.
The experimental system is equipped with multiple wireless humidity rise temperature acquisition devices, which facilitate temperature testing arrangements
The experimental system is equipped with an LED Chinese character display protection screen, which displays the system's working status at any time to ensure the safety of the testing personnel
The trial picking system has information technology functions and is connected to the cloud platform management system through the network to complete data exchange.
Technical Parameters
Class C test equipment |
Model |
Technical parameters |
Grounding resistance tester |
HB5878 |
Test current automatic: 200mA, 1A,5A,10A |
Insulation Resistance Meter |
HB5805 |
Accuracy: ± (10%+5 characters), measurement range: 0.1M–200GΩ, test voltage: 0.5, 1, 2.5, 5 (kV) |
Power frequency withstand voltage tester |
HB2620－5 |
Output voltage: 0-10kV, output current: 50mA |
Impact generating device |
HBCI－20 |
Output voltage: 1–20kV, output waveform: 1.2/50us |
Integrated single-phase control power supply |
|
Output voltage: 0-250V, output current: 12A |
Integrated three-phase AC power supply |
|
Output voltage: 0-500V, output current: 15A |
Integrated DC power supply |
|
Output voltage: 0-300V, output current: 10A |
Class B test equipment |
Model |
Technical parameters |
IP gauge |
|
Measurement range:(0-1) mm |
Integrated power measurement module |
HB2811 |
Measuring voltage: 100V, accuracy 0.2%, measuring current: 5A, accuracy 0.2% |
Wireless temperature detector |
HB6305 |
Route 64 |
Integrated three-phase current generator |
HBDDL－200 |
Output current: 0-200 (A), 3 channels |
Integrated three-phase current generator |
HBDDL－400 |
Output current: 0-400 (A), 2 channels |
Integrated three-phase current generator |
HBDDL－1000 |
Output current: 0-1000 (A), 2 channels |
Test control |
HB2819Z-4 |
Automatic test switching and test range switching of each project tester, AC and DC power supply control measurement, electrical control of high current generator, data communication, safety protection system. |
Computer systems and software |
HB2819GL－4 |
Test system login, test personnel management, test sample identification, test item setting, test data setting, project switching, status reading, data upload, environmental parameter reading and judgment. |
Device structure and accessories |
HB2819ZN－4 |
Detection equipment bearing, electric switch switching, secret time structure. |
It is a high-integration precision testing instrument designed for comprehensive performance detection of low-voltage (LV) cabinets, switchgear, and distribution cabinets. Core functions include insulation resistance testing, continuity & loop resistance testing, protection relay (overcurrent/undervoltage/earth fault) testing, on-load switch performance testing, and auxiliary circuit function verification.
Working principle: Connect the device to the LV cabinet’s incoming/outgoing terminals, protection devices, and auxiliary circuits once. The embedded control unit automatically switches test circuits, outputs standard test signals (voltage/current), collects real-time data via high-precision sampling modules, and compares results with IEC 61439, GB 7251 standards to generate qualified test reports. It integrates multiple test functions into one device, avoiding repeated wiring and improving testing efficiency.
