Indoor Medium Voltage Vacuum Load Break Switch

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Switchgear parts
Model NO.	Indoor Medium Voltage Vacuum Load Break Switch
Rated voltage	12kV
Series	FZN25-12

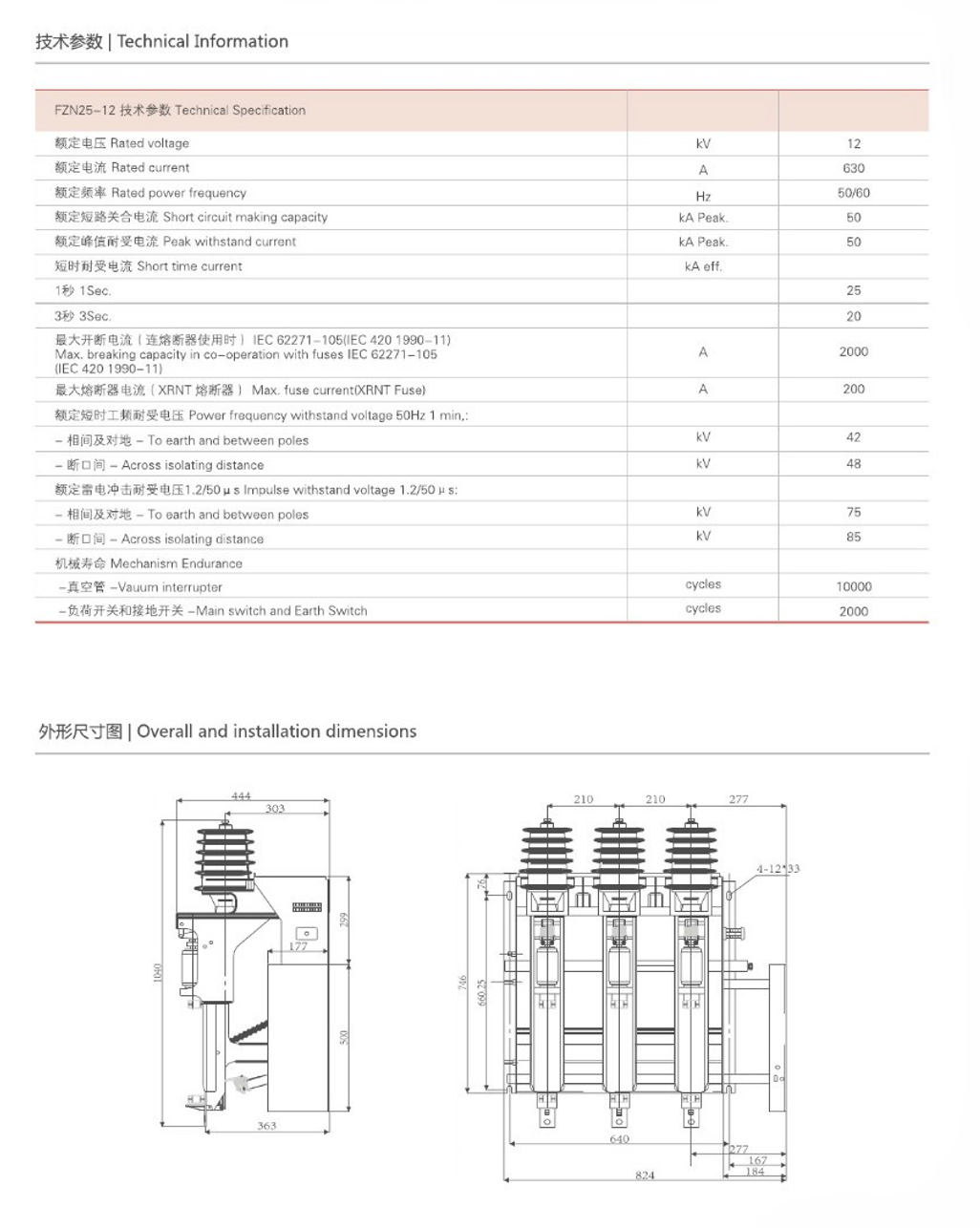

Product Detail

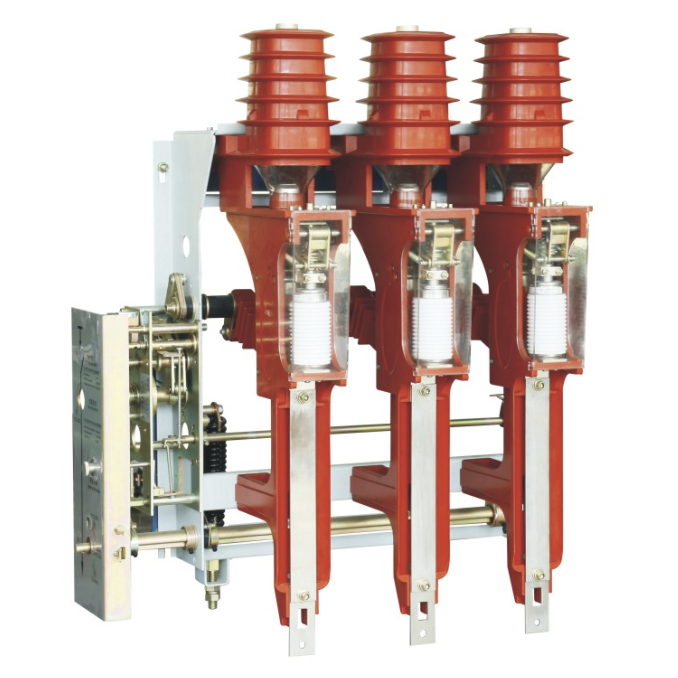

FZN25-12D/T630-20 indoor AC high-voltage vacuum load switch is applied to indoor distribution equipment with three-phase AC 50/60Hz and rated voltage of 12kV. It is widely installed in industrial and mining industries and power transmission and distribution networks, andcanbeusedforEfficientlyprotectequipment such as distribution lines and transformers. This switch has both manual and electric operating mechanisms, allowing for remote control.FZRN25-12D/T125-31.5 indoor AC high voltage vacuum load switch fuse combination, combined with high voltage current limiting fuse, can disconnect fault current and overload current.

Know your supplier

Switchgear parts

VoltEdge Solutions specializes in manufacturing premium MV switchgear accessories for global power distribution systems. Our product range includes circuit breaker modules, disconnector spares, and surge arrestors, engineered for 24kV+ substations and renewable energy plants. With ISO-certified production and 24/7 technical support, we ensure reliability, compliance with IEC standards, and rapid global supply.

Main Categories

Electrical fittings/Equipment Parts

Business Type

Sales

Highest Annual Export (USD)

$300000000

Professional Experience

1 years

Workplace

1000m²
