| Brand | Switchgear parts |
| Model NO. | IEC Rear Connector With Surge Arrester |
| Rated voltage | 51kV |
| Series | RW-HBLQ |
Summary

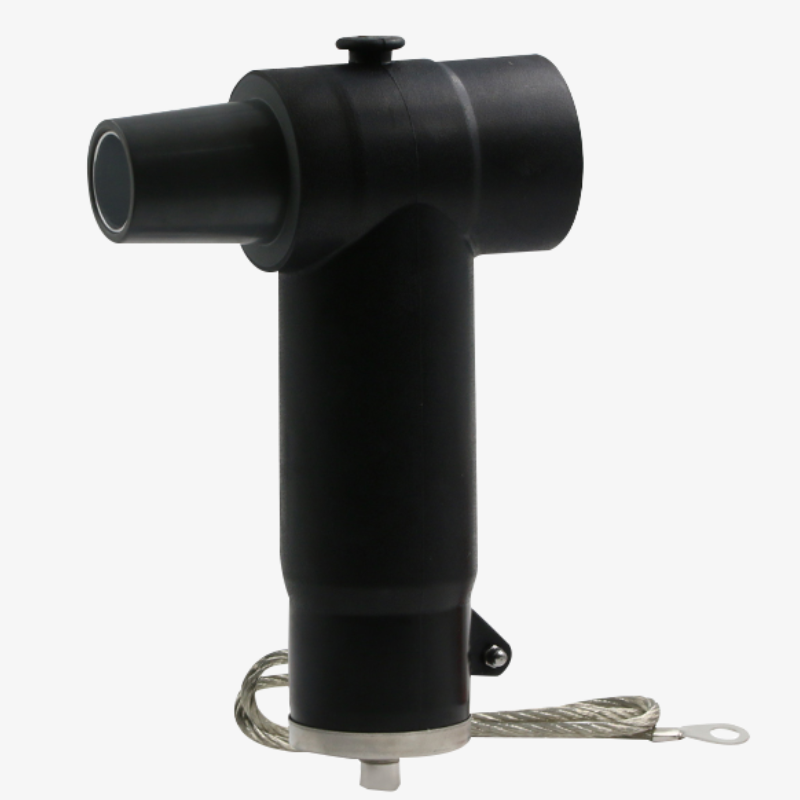

IEC Rear connector with surge arrester can provide reliable over-voltage protection for the electrical system. The external semi conductive Layers of screened type IEC Rear connector with surge arrester to ensure protect the operators when installation and maintenance,and also ensure the equipments in safetyAt the same time, its anti ultraviolet,anti-aging, waterproof, moisture-proof unique properties to ensure that the product in a harsh environment safe and reliable operation.
Standard packing
Body of surge arrester Test report
Silicone grease、towels Bolt stud
Instruction Manual Dust cap
Conductive rod Conformity certificat
Technical specification
Item |
Units |
RW-HBLQ-17/45 |
RW-HBLQ-17/50 |
RW-HBLQ-10/27 |
RW-HBLQ-10/30 |
RW-HBLQ-13/36 |
Product model |
- |
RW-HBLQ-17/45 |
RW-HBLQ-17/50 |
RW-HBLQ-10/27 |
RW-HBLQ-10/30 |
RW-HBLQ-13/36 |
Nominal voltage of a system |
kV |
10 |
10 |
6 |
6 |
10 |
Rated voltage of arrester |
kV |
17 |
17 |
10 |
10 |
13 |
Continuous running voltage |
kV |
13.6 |
13.6 |
8 |
8 |
10.4 |
Nominal discharge current In |
kA |
5 |
5 |
5 |
5 |
5 |
Dc 1mA reference voltage |
kV |
≥24 |
≥25 |
≥14.4 |
≥15 |
≥19.3 |
0.75U1mA leakage current |
μA |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
Steep current impulse residual voltage |
kV |
≤57.8 |
≤57.5 |
≤31 |
≤34.6 |
≤41.3 |
Lightning impulse residual voltage |
kV |
≤45 |
≤50 |
≤27 |
≤30 |
≤36 |
Operating impulse residual voltage |
kV |
≤35 |
≤42.5 |
≤23 |
≤25.6 |
≤30.7 |
Partial discharge at 15kV |
pC |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
2ms square wave impulse current tolerance |
kA |
150 |
150 |
150 |
150 |
150 |
High current shock tolerance |
kA |
65 |
65 |
65 |
65 |
65 |
| Units | RW-HBLQ-26/66 | RW-HBLQ-32/85 | RW-HBLQ-34/85 | RW-HBLQ-34/90 | |
|---|---|---|---|---|---|
| Product model | - | RW-HBLQ-26/66 | RW-HBLQ-32/85 | RW-HBLQ-34/85 | RW-HBLQ-34/90 |
| Nominal voltage of a system | kV | 20 | 20 | 20 | 20 |
| Rated voltage of arrester | kV | 26 | 32 | 34 | 34 |
| Continuous running voltage | kV | 20.8 | 25.6 | 27.2 | 27.2 |
| Nominal discharge current In | kA | 5 | 5 | 5 | 5 |
| Dc 1mA reference voltage | kV | ≥37 | ≥47 | ≥48 | ≥50 |
| 0.75U1mA leakage current | μA | ≤10 | ≤10 | ≤10 | ≤10 |
| Steep slope impact residual voltage | kV | ≤76 | ≤95 | ≤95 | ≤104 |
| Lightning impulse residual voltage | kV | ≤66 | ≤85 | ≤85 | ≤90 |
| Operating impulse residual voltage | kV | ≤56 | ≤75 | ≤75 | ≤80 |
| 25.4kV Partial discharge | pC | ≤10 | ≤10 | ≤10 | ≤10 |
| 2ms square wave impact current tolerance | A | 150 | 150 | 150 | 150 |
| High current shock tolerance | kA | 65 | 65 | 65 | 65 |
| Item | Units | RW-HBLQ-51/134/400 | RW-HBLQ-51/134/600 | RW-HBLQ-51/134/800 |
|---|---|---|---|---|
| Product model | - | RW-HBLQ-51/134/400 | RW-HBLQ-51/134/600 | RW-HBLQ-51/134/800 |
| Nominal voltage of a system | kV | 35 | 35 | 35 |
| Rated voltage of arrester | kV | 51 | 51 | 51 |
| Continuous running voltage | kV | 40.8 | 40.8 | 40.8 |
| Nominal discharge current | kA | 5 | 5 | 5 |
| Dc 1mA reference voltage | kV | ≥73 | ≥73 | ≥73 |
| 0.75U1mA leakage current | μA | ≤10 | ≤10 | ≤10 |
| Steep slope impact residual voltage | kV | ≤154 | ≤154 | ≤154 |
| Lightning impulse residual voltage | kV | ≤134 | ≤134 | ≤134 |
| Operating impulse residual voltage | kV | ≤114 | ≤114 | ≤114 |
| Partial discharge at 45kV | pC | ≤10 | ≤10 | ≤10 |
| 2ms square wave impact current tolerance | A | 400 | 600 | 800 |
| High current shock tolerance | kA | 100 | 100 | 100 |
Note: When Selection,Please indicate the lightning impulse residual voltage value.
-
