IEEE Type Rear Connector

discuss personally

Model

RW-HJT-12/20/600A

RW-HJT-8.7/15/600A

Basic info Product Detail Supplier

Basic info

Brand	Switchgear parts
Model NO.	IEEE Type Rear Connector
Rated voltage	12/20kV
Rated normal current	600A
Series	RW-HJT

Product Detail

Summary

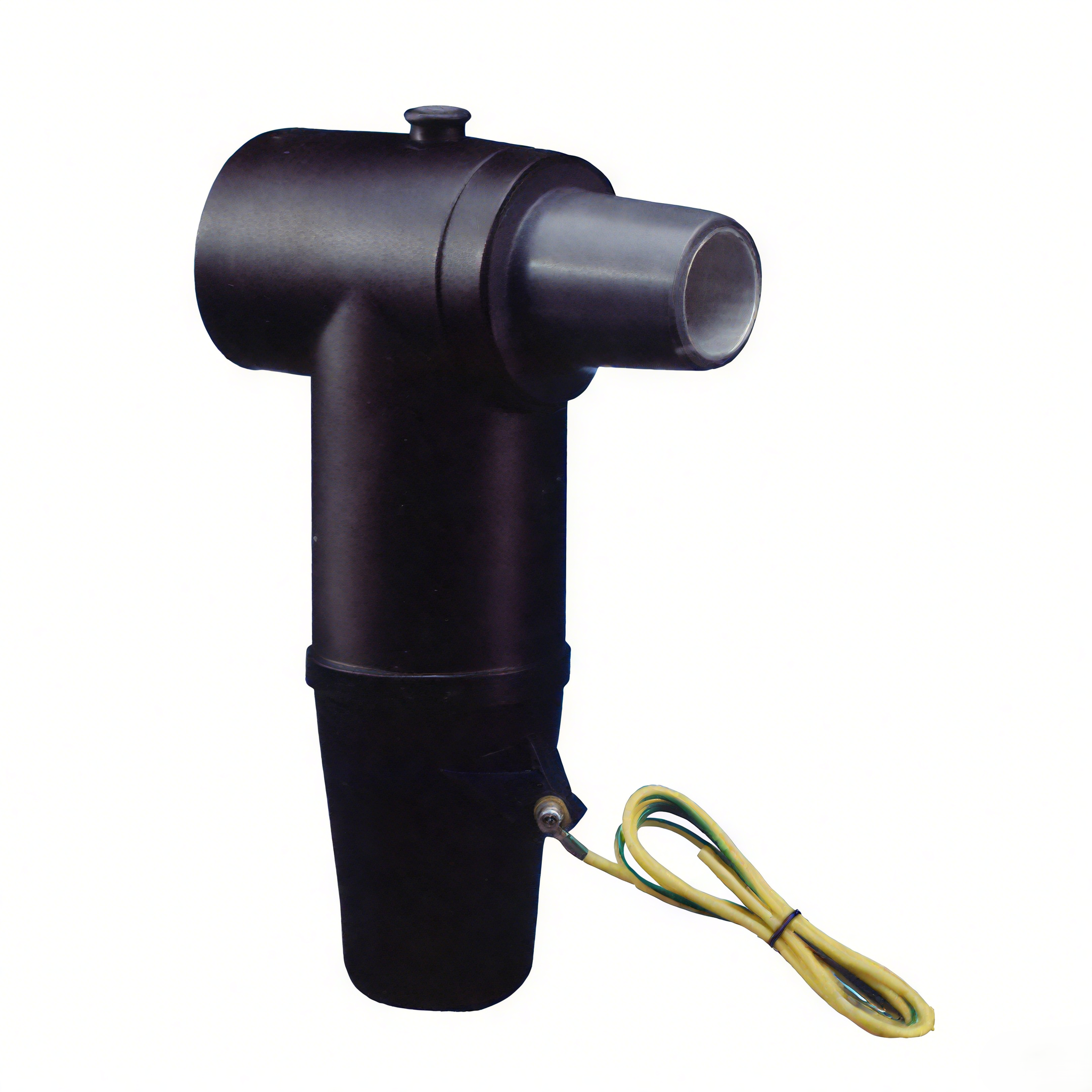

630A IEEE type Rear connector connect with IEEE type tee connector or other model Rear connector,extended cable connection circuit (branch), it can not be directly connected with the sleeve socket, wall bushing and so on. The tail can be plugged directly with insulating plug, but also can be extended to connect with the rear connector of another line or Rear connector with surge arrester. It is suitable for XLPE cable with 25mm²;~400mm² cross-section of cable.

Model & Specification	Applicable highest voltage	Rated current	Cross-section of cable(mm2)	Applicable range of Outside diameter of insulation of cable (mm)
HJT-15/600-50	8.7/15kV	600A	25~50	Φ16~Φ20
HJT-15/600-95	8.7/15kV	600A	70~95	Φ20~Φ23
HJT-15/600-150	8.7/15kV	600A	120~150	Φ23~Φ26
HJT-15/600-240	8.7/15kV	600A	185~240	Φ26~Φ30.5
HJT-15/600-400	8.7/15kV	600A	300~400	Φ30.5~Φ35
HJT-20/600-35	12/20kV	600A	35	Φ18~Φ20
HJT-20/600-70	12/20kV	600A	50~70	Φ20~Φ23
HJT-20/600-120	12/20kV	600A	95~120	Φ23~Φ26
HJT-20/600-185	12/20kV	600A	150~185	Φ26~Φ30.5
HJT-20/600-300	12/20kV	600A	240~300	Φ30.5~Φ35

Note: Selection should depend on the outside diameter of insulation of cable, the cable cross-section only for reference. And wheather need an insulating seal assembly.
