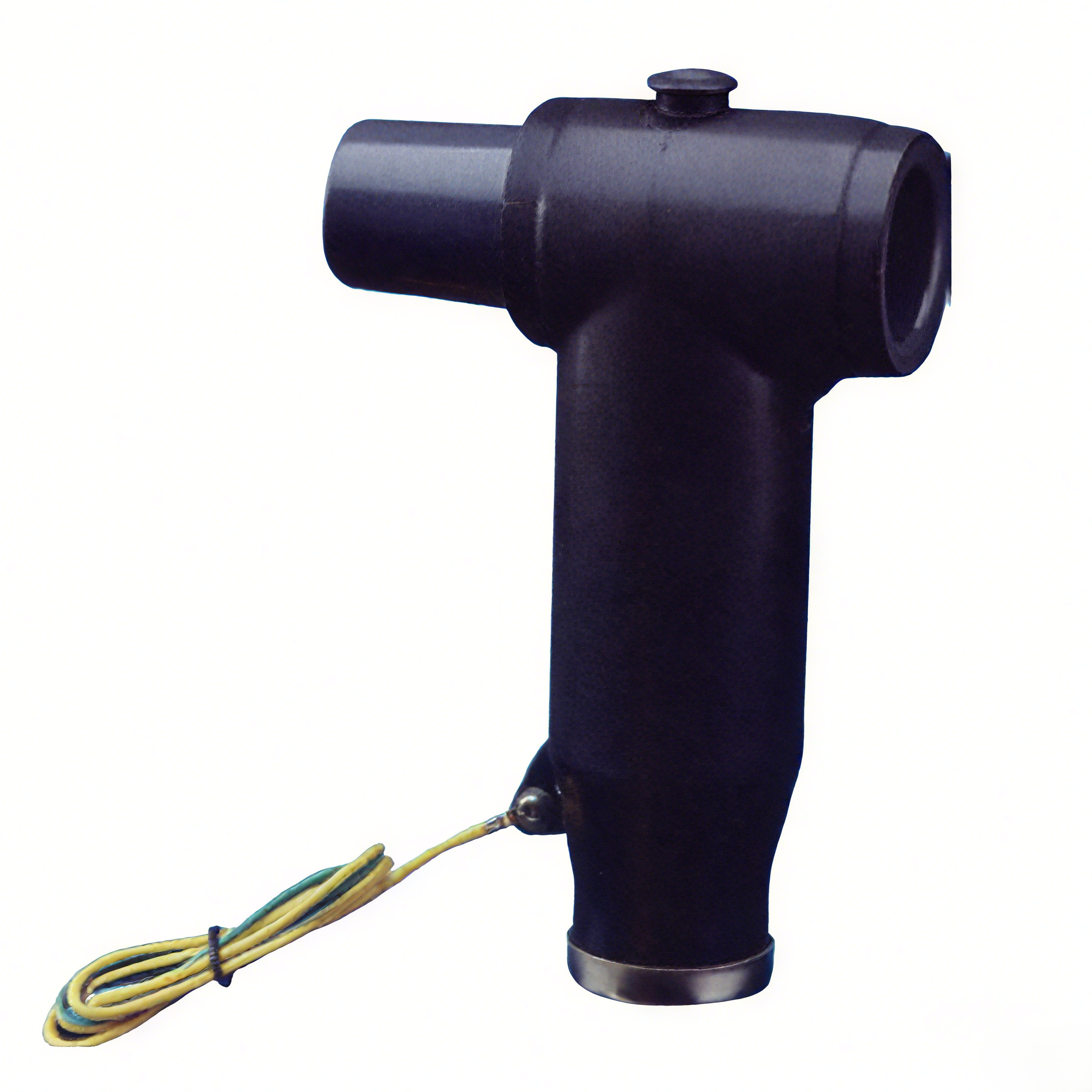

IEEE Rear Connector With Surge Arrester

Name: IEEE Rear Connector With Surge Arrester
Brand: Zhejiang Xinyouxiang Electric Technology Co., Ltd.
SKU: 1707
Availability: InStock

Zhejiang Xinyouxiang Electric Technology Co., Ltd.

2yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Xinyouxiang
Model NO.	IEEE Rear Connector With Surge Arrester
Rated voltage	35kV
Rated normal current	150A
Series	RW-MHBLQ

Description

Summary

IEEE Rear connector with surge arrester can provide reliable over- voltage protection for the electrical system. The external semi conductive Layers of screened type IEC Rear connector with surge arrester to ensure protect the operators when installation and maintenance,and also ensure the equipments in safety.At the same time, its anti ultraviolet, anti-aging, waterproof, moisture-proof unique properties to ensure that the product in a harsh environment safe and reliable operation. Multi adaptability to medium and high voltage scenarios such as 15-35kV, medium and high voltage ring main unit (RMU), gas insulated switchgear (GIS)

Item	HBLQ-17/45	HBLQ-17/50	HBLQ-26/66	HBLQ-34/90
System rated voltage	15kV	15kV	20kV	20kV
System rated voltage of surge arrester	17kV	17kV	26kV	34kV
Continuous operation voltage	13.6kV	13.6kV	20.8kV	27.2kV
Reference voltage (1mA DC)	≥24kV	≥25kV	≥37kV	≥50kV
Leakage current at 0.75 U1mA	≤50μA	≤50μA	≤50μA	≤50μA
Steep current impulse residual voltage	≤51.8kV	≤57.5kV	≤76kV	≤104kV
Lightning impulse residual voltage	≤45kV	≤50kV	≤66kV	≤90kV
Switching impulse residual voltage	≤35kV	≤42.5kV	≤56kV	≤80kV
Long duration current impulse withstand at 2000μs	150A	150A	150A	150A

Note: When Selection,Please indicate the lightning impulse residual voltage value.
