Elbow Type Connector

Name: Elbow Type Connector
Brand: Zhejiang Wone IT Service Co., Ltd...
SKU: 1701
Price: 1.99 USD
Availability: InStock

Zhejiang Wone IT Service Co., Ltd...

2yrs + staff 1000+m² US$300000000+ China

Zhejiang Wone IT Service Co., Ltd...

2yrs + staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Switchgear parts
Model NO.	Elbow Type Connector
Rated voltage	35kV
Rated normal current	200A
Series	RW-PTZT

Product descriptions from the supplier

Description

Summary

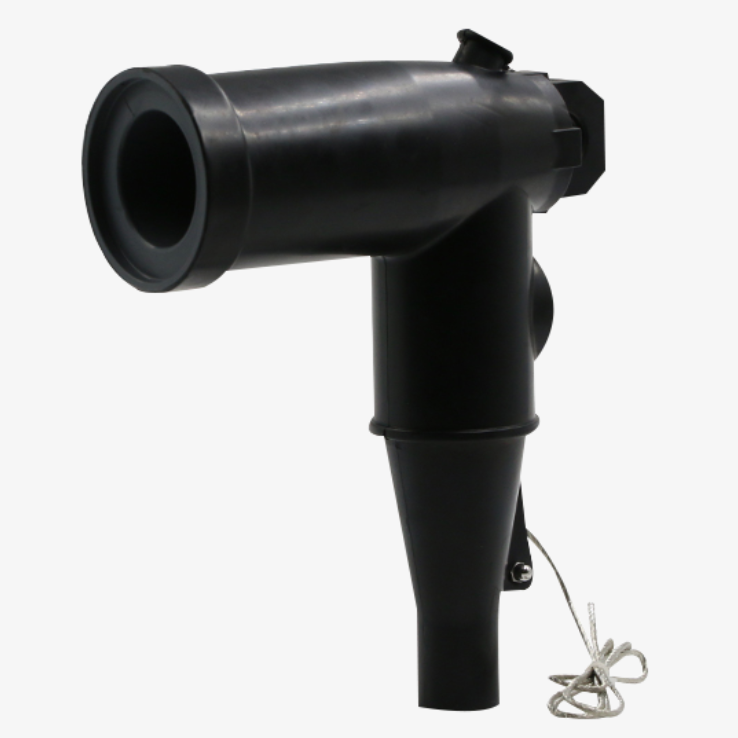

Separable connector is fully insulated, fully sealed connector, is widely used in outdoor power distribution Transformer, American cabinet type transformer, ring main unit and cable branch box, buried transformers and other electrical equipments.lt can be installed on outgoing line of 200A T type connector,20oA Busbar,single-pass (Double type) apparatus bushing and load conversion connector of American cabinet type transformer. Test points can be installed live monitor, in order to check the charged state of the equipment, but also to meet the nuclear phase requirements. Conductive rod connector arc extinguishing material, it can be charged in the state operation, but can not cut offthe short-circuit current; can be used as the load switch to open the current 200A. Applicable for XLPE cable cross-section 25mm²~400mm²

15kV Model & Specification

Model & Specification	Applicable highest voltage	Rated current	Cross - section of cable mm²	Applicable range of Outside diameter of insulation of cable mm²
PTZT - 15/200 - 35	8.7/15kV	200A	35	Φ23.1 - Φ27.1
PTZT - 15/200 - 50	8.7/15kV	200A	50	Φ14.1 - Φ23.1
PTZT - 15/200 - 70	8.7/15kV	200A	70	Φ16.3 - Φ25.7
PTZT - 15/200 - 95	8.7/15kV	200A	95	Φ21.3 - Φ28.2
PTZT - 15/200 - 120	8.7/15kV	200A	120	Φ21.3 - Φ28.2
PTZT - 15/200 - 150	8.7/15kV	200A	150	Φ21.3 - Φ28.2

25kV Model & Specification

Model & Specification	Applicable highest voltage	Rated current	Cross - section of cable mm²	Applicable range of Outside diameter of insulation of cable mm²
PTZT - 25/200 - 50	18/20kV	200A	50	Φ23.1 - Φ27.1
PTZT - 25/200 - 70	18/20kV	200A	70	Φ24.9 - Φ29.0
PTZT - 25/200 - 95	18/20kV	200A	95	Φ27.4 - Φ32.5
PTZT - 25/200 - 120	18/20kV	200A	120	Φ27.4 - Φ32.5
PTZT - 25/200 - 150	18/20kV	200A	150	Φ31.0 - Φ36.1

35kV Model & Specification

Model & Specification	Applicable highest voltage	Rated current	Cross-section of cable mm²	Applicable range of Outside diameter of insulation of cable mm²
PTZT-35/200-50	26/35kV	200A	50	Φ29.5 - Φ33.1
PTZT-35/200-70	26/35kV	200A	70	Φ32.5 - Φ35.4
PTZT-35/200-95	26/35kV	200A	95	Φ34.4 - Φ38.6
PTZT-35/200-120	26/35kV	200A	120	Φ34.4 - Φ38.6
PTZT-35/200-150	26/35kV	200A	150	Φ37.7 - Φ40.5
