| Brand | Rw Energy |
| Model NO. | HYTSC High-Voltage Dynamic Reactive Power Compensation System |
| Rated voltage | 6/10kV |
| Rated frequency | 50Hz |
| Phases | Three-phase |
| Series | HYTSC |

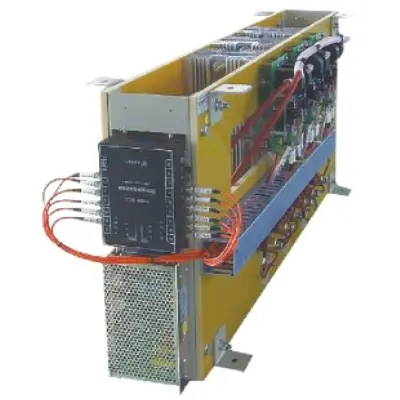

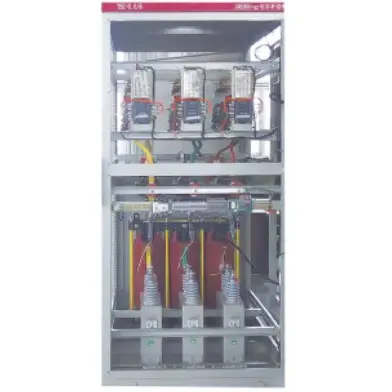

The HYTSC high-voltage dynamic reactive power compensation system is equipped with a fully digital intelligent control platform and high-power series thyristor switching modules.
It enables rapid zero-cross switching of multi-stage capacitor banks, achieving dynamic and precise reactive power compensation for fast-changing loads.
With a response time ≤20ms, the HYTSC system ensures real-time compensation for impact loads and fluctuating industrial processes, improving grid power factor to above 0.9 while stabilizing system voltage.
This advanced design enhances system power quality, reduces losses, and delivers significant economic and operational benefits across demanding industrial environments.
Key Features
Technical Highlights
| Item | Performance |
|---|---|
| Response Time | ≤20ms |
| Switching Method | Thyristor switched capacitor banks |
| Power Factor Improvement | ≥0.9 |
| Control Mode | Real-time dynamic compensation |
| System Compatibility | 6kV / 10kV high-voltage networks |
| Design Standard | Based on advanced international compensation technology |
Applications
Benefits to Customers
Improves efficiency of grid infrastructure
Reduces transformer and line losses Enhances voltage stability and production reliability
Significantly lowers electricity costs and penalty charges
Provides higher stability for automation and intelligent manufacturing
Model Definition
HYTSC-□-□/□-AKX/P6
| Code | Meaning |
|---|---|
| P | Reactor percentage |
| H | Harmonic filter branch |
| X | Indoor/outdoor cabinet type |
| K | Open-delta voltage protection |
| C | Phase-voltage differential protection |
| L | Neutral-point unbalance current protection |
| A/B | Single or double star connection |
| kvar | Single capacitor capacity |
| kvar (set) | Total installation capacity |
| kV | System voltage rating |
Technical Specifications
| Item | Specification |
|---|---|
| Standard | DL/T 604-1996 |
| Rated voltage | 6kV / 10kV |
| System frequency | 50Hz |
| Dynamic response time | ≤20ms |
| Control power | AC380V ±5% |
| Phase structure | 3-phase |
| Recommended bank sizes | 300 / 600 / 750 / 900 / 1000 / 1200 / 1500 / 1800 / 3000kvar |
| Capacitor connection | Δ-type |
| Reactor tuning rate | 6% or 13% |
| Compensation level | Power factor ≥0.9 |
| Protection level | IP20 |
Benefits for End-Users
| Enhancement | Result |
|---|---|
| Voltage stability | Fewer trip failures |
| Reduced harmonic impact | Longer lifespan of motors & transformers |
| Lower network losses | Lower electricity bills |
| Reliable dynamic control | Stable operation of high-impact loads |
| Maintenance-free switching | Reduced OPEX |
Recommended Applications
Designed for scenarios with rapidly changing loads:
Ordering Information Required
To ensure correct configuration, please provide:
