| Brand | Rw Energy |

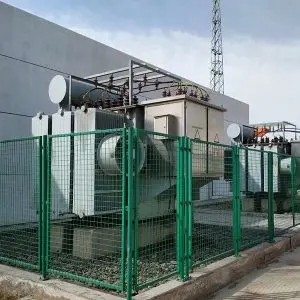

| Model NO. | HYTBBT Series On-load Voltage & Reactive Power Regulation System |
| Rated voltage | 6/10/35kV |
| Rated frequency | 50Hz |
| Series | HYTBBT |
The HYTBBT series on-load voltage and reactive power regulation system is designed for substations with voltage levels ranging from 6 kV to 220 kV, installed on 6 kV / 10 kV / 35 kV busbars.
By integrating on-load tap changer (OLTC) control and reactive power compensation, the device provides comprehensive voltage and power factor management for modern power distribution networks.
Product Overview
The HYTBBT voltage-regulating and capacity-adjustable high-voltage reactive power compensation device is designed for 6kV-220kV power systems and installed on 6kV/10kV/35kV busbars in substations.
It is widely used in power utilities, metallurgy, coal mining, petrochemical industries and other high-voltage networks to improve voltage stability, increase power factor, and reduce system losses.
Key Features
Working Principle (Simplified)
The controller adjusts:
This ensures stable output voltage and proper reactive power balance across the distribution network.
Technical Specifications
| Item | Description |
|---|---|
| Rated System Voltage | 6kV / 10kV / 35kV (supports up to 220kV substations) |
| Frequency | 50Hz |
| Compensation Capacity | Customizable (multi-stage group switching) |
| Control Modes | Automatic voltage regulation + automatic reactive compensation |
| Installation Type | Indoor or outdoor configuration |
| Communication | Remote monitoring optional |
| Protection Functions | Over-voltage, over-current, unbalance, capacitor fault, harmonic impact prevention |
Applications
