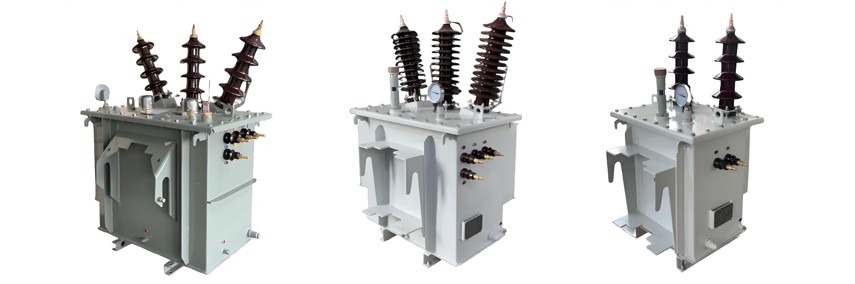

H61 HV/LV distribution transformer

Description ：

The H61 HV/LV distribution transformer is a crucial component in power systems. Designed to step down high - voltage electricity to a lower, more usable voltage level, it plays a pivotal role in both industrial and residential settings. This transformer features high - quality insulation materials, ensuring electrical safety and minimizing the risk of short - circuits.

Its robust construction allows for reliable operation under varying load conditions. Equipped with an efficient cooling system, it can dissipate heat effectively, reducing energy losses and enhancing overall efficiency. Whether powering factories, offices, or homes, the H61 transformer delivers stable and consistent power distribution.

Main function introduction:

• Voltage Conversion

• Power Distribution

• Electrical Isolation

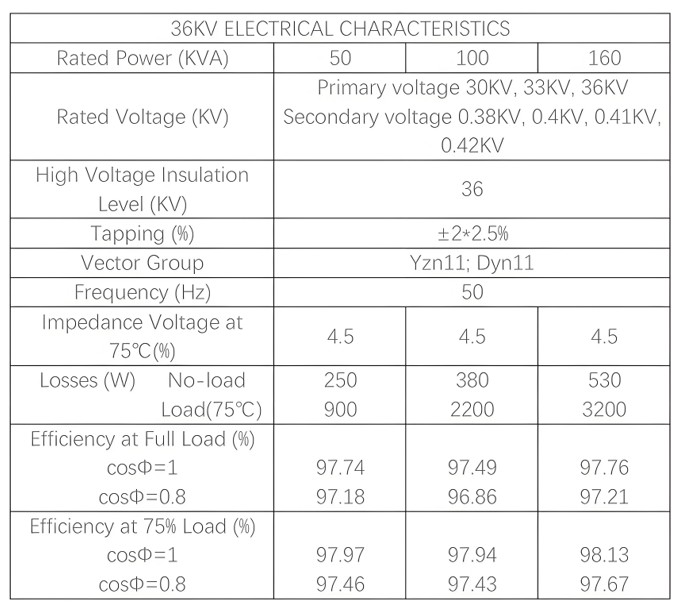

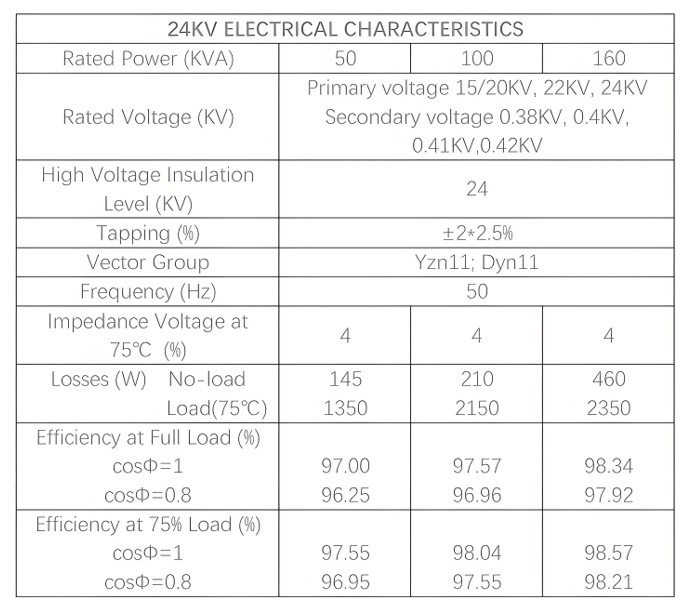

Main Technical Parameters

24KV

36KV

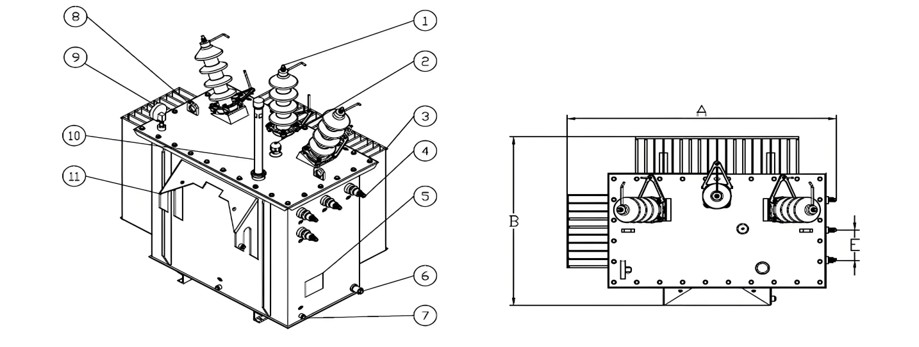

Device structure:

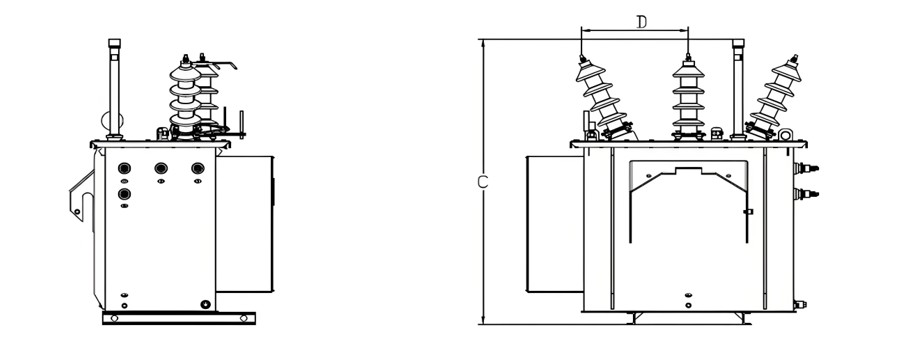

Rear view photo:
