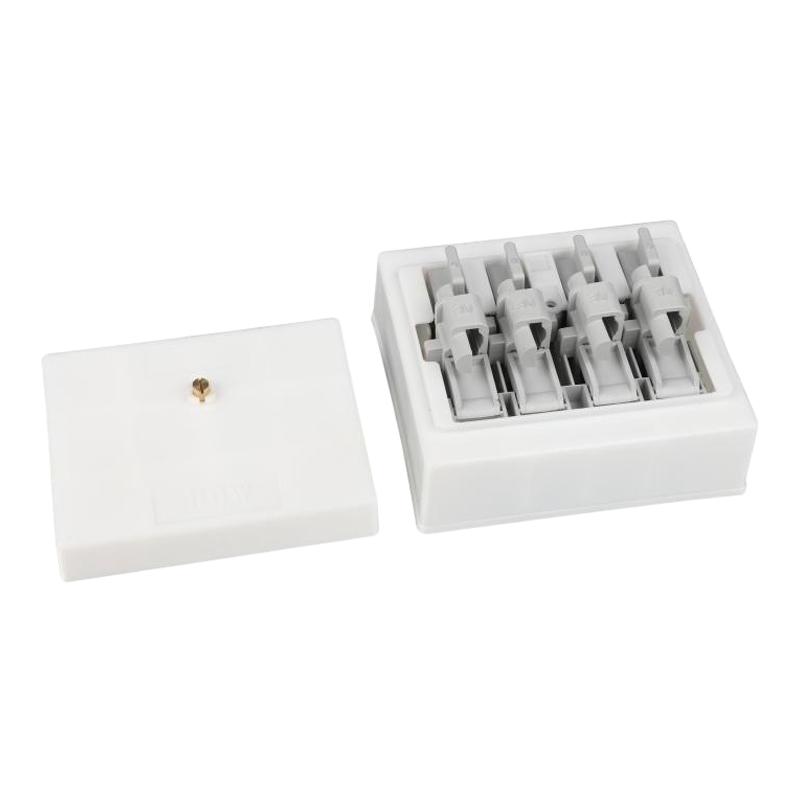

Fuser connection box
Key attributes
| Brand | Wone Store |
| Model NO. | Fuser connection box |
| number of poles | 4p |
| Series | NF |
Product descriptions from the supplier
Two/Four Pole connection box for breaking and counting protection.
Partial repair of a connection without modification of the installation.
Installation in cabinets and counting panels or on control panels.
Made of self-extinguishing synthetic material.
Box consisting of a monobloc base supporting the articulated and sectionable grippers and the sealed cover.
The arrival and departure are equipped with cable clamp 25mm2 accepting bi-metal wires or aluminum copper. Equipped with a lever insulating self-extinguishing material (PA6). Equipped with a fuse holder insulating.
Secured by a M4 stainless steel screw.
The set is IP 4X.
The box includes a terminal cover and a separate cover.For cylindrical fuse cartridge 10x38 and 14x51.
