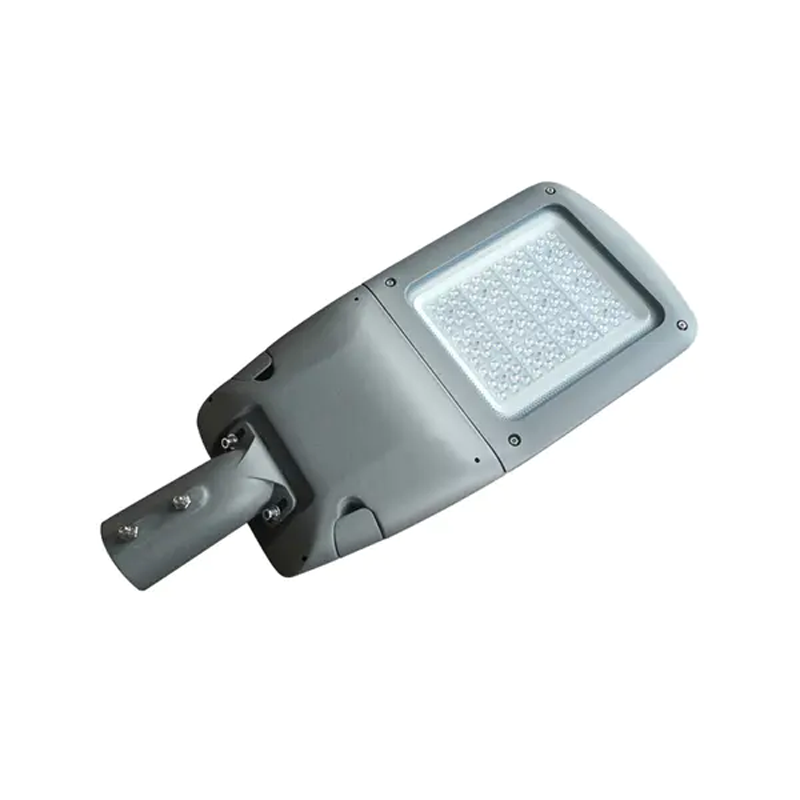

FJ-SL124 Series Street Light
Key attributes
| Brand | Wone Store |
| Model NO. | FJ-SL124 Series Street Light |
| Ingress Protection | IP66 |
| Rated power | 240W |
| Wide voltage input range | AC 100-265V |
| Lumen efficiency | 125lm/W |
| CCT(color temperature) | 3000-6000K |
| CRI(color render index) | ≥70 |
| beam angle | type Ⅰ~Ⅴ |
| PF(Power Factor) | ≥0.95 |
| Series | FJ-SL124 Series |
Product descriptions from the supplier
Overview
70% energy savings and fast return on investment.
Up to 100,000 hours at L70 for low maintenance.
Open drive without tools for easy maintenance.
Integrated ADC12 die-cast aluminum design for excellent heat dissipation.
World-class, recognized quality components (LEDs/drivers, etc.).
I/II/III/IV/V type light distribution can meet different requirements of road lighting.
Stable light output without strobe, power factor 0.95 to maintain grid stability.
IP66, IK08 lamps and lanterns protection level, to meet the high temperature and high humidity and other environmental use.
Can be installed horizontally and vertically, adjustable angle +15°, can meet the needs of different angle lighting.
technical parameters
Model |
Power |
Lumen efficiency |
CCT |
CRI |
Input voltage |
IP |
Beam angel |
PF |
Dimension |
FJ-SL125-30W |
30W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
607*240*117 |
FJ-SL125-50W |
50W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
607*240*117 |
FJ-SL125-60W |
60W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
607*240*117 |
FJ-SL125-80W |
80W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
607*240*117 |
FJ-SL125-100W |
100W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
683*277*118 |
FJ-SL125-120W |
120W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
683*277*118 |
FJ-SL125-150W |
150W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
733*343*116 |
FJ-SL125-200W |
200W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
733*343*116 |
FJ-SL125-240W |
240W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
733*343*116 |
