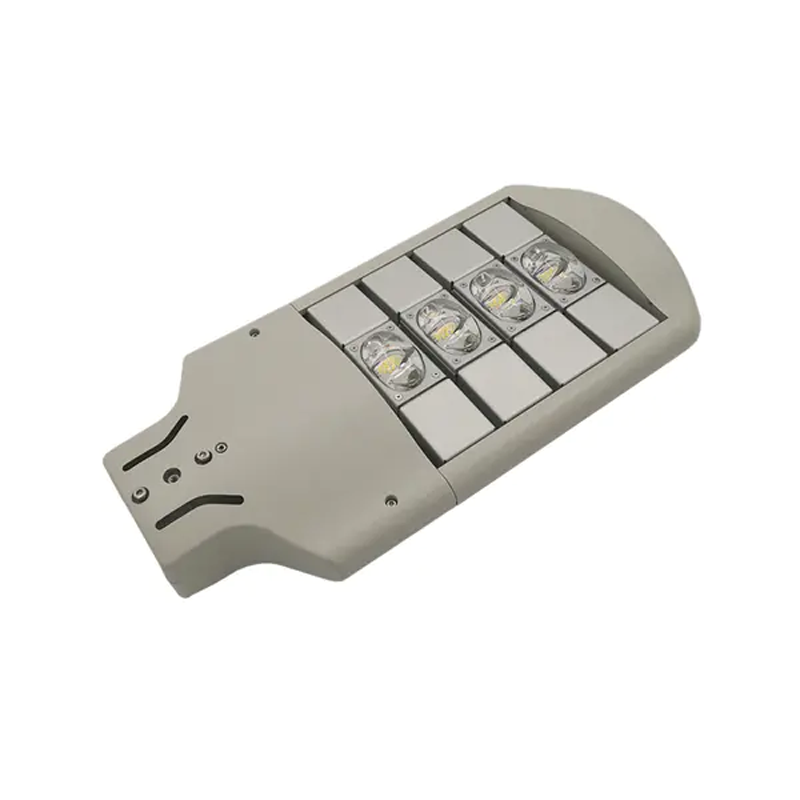

FJ-SL116 Series Street Light
Key attributes
| Brand | Wone Store |
| Model NO. | FJ-SL116 Series Street Light |
| Ingress Protection | IP66 |
| Rated power | 350W |
| Wide voltage input range | AC 100-265V |
| Lumen efficiency | 130~160lm/W |
| CCT(color temperature) | 3000-6000K |
| CRI(color render index) | ≥70 |
| beam angle | type Ⅰ~Ⅴ |
| PF(Power Factor) | ≥0.9 |
| Series | FJ-SL116 Series |
Product descriptions from the supplier
Overview
Integral ADC12 die-cast aluminum design, good heat dissipation;
Up to 100,000 hours at L70, low maintenance cost.
Ⅰ/Ⅱ/Ⅲ/Ⅳ/Ⅴtype light distribution can meet the different requirements of road lighting;
Stable light output without strobe, power factor 0.95 to maintain the stability of the power grid.
IP66, IK10 lamps and lanterns protection level, to meet the high temperature and high
humidity and other environmental use.
technical parameters
Model |
Power |
Lumen efficiency |
CCT |
CRI |
Input voltage |
IP |
Beam angel |
PF |
Dimension |
FJ-SL116-80W |
80W |
130~160lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.9 |
362*145*62 |
FJ-SL116-100W |
100W |
130~160lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.9 |
486*165*62 |
FJ-SL116-120W |
120W |
130~160lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.9 |
545*206*72 |
FJ-SL116-150W |
150W |
130~160lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.9 |
623*235*72 |
FJ-SL116-200W |
200W |
130~160lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.9 |
362*145*62 |
FJ-SL116-240W |
240W |
130~160lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.9 |
486*165*62 |
FJ-SL116-300W |
300W |
130~160lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.9 |
545*206*72 |
FJ-SL116-350W |
350W |
130~160lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.9 |
623*235*72 |
