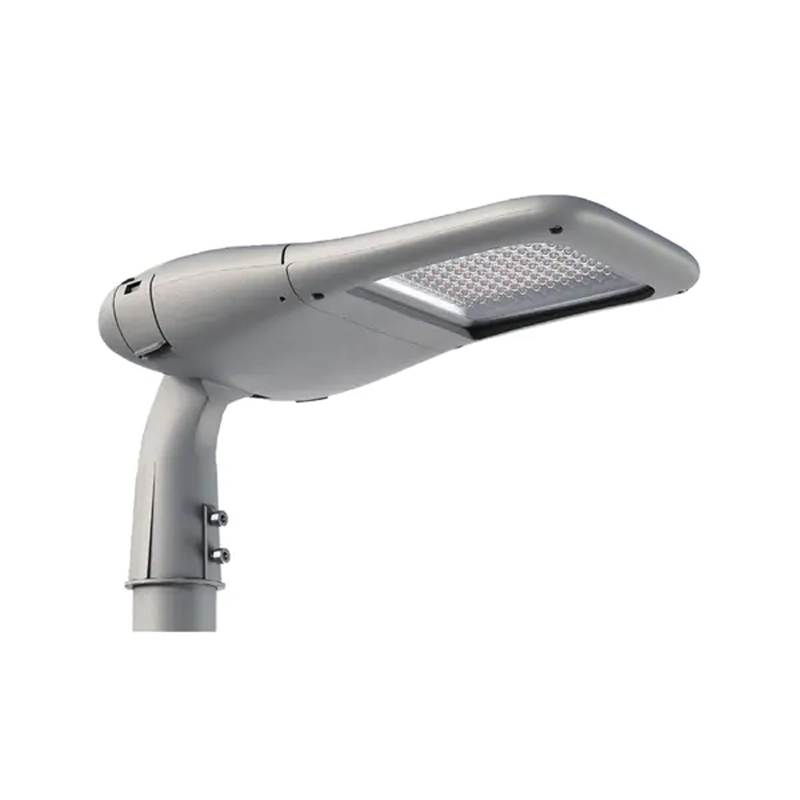

FJ-SL116 Series Street Light

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	FJ-SL116 Series Street Light
Ingress Protection	IP66
Rated power	240W
Wide voltage input range	AC 100-265V
Lumen efficiency	125lm/W
CCT(color temperature)	3000-6000K
CRI(color render index)	≥70
beam angle	type Ⅰ~Ⅴ
PF(Power Factor)	≥0.95
Series	FJ-SL123 Series

Product Detail

Overview

70% energy savings and fast return on investment.

Up to 100,000 hours at L70, low maintenance costs Open drive without tools for easy maintenance Integrated ADC12 die-cast aluminum design for excellent heat dissipation

World-class, recognized quality components (LEDs/drivers, etc.) /II/III/IV/V light distribution to meet the different requirements of road lighting.

Stable light output without flicker, power factor 0.95 to maintain grid stability.

IP66, IK08 lamps and lanterns protection level, to meet the high temperature and high humidity and other environmental use.

Can be installed horizontally and vertically, adjustable angle +15°, can meet the needs of different angle lighting

technical parameters

Model	Power	Lumen efficiency	CCT	CRI	Input voltage	IP	Beam angel	PF	Dimension
FJ-SL123-30W	30W	125lm/w	3000-6000K	>70	AC100-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	660320185
FJ-SL123-50W	50W	125lm/w	3000-6000K	>70	AC100-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	660320185
FJ-SL123-60W	60W	125lm/w	3000-6000K	>70	AC100-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	660320185
FJ-SL123-80W	80W	125lm/w	3000-6000K	>70	AC100-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	738289118
FJ-SL123-100W	100W	125lm/w	3000-6000K	>70	AC100-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	738289118
FJ-SL123-120W	120W	125lm/w	3000-6000K	>70	AC100-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	738289118
FJ-SL123-150W	150W	125lm/w	3000-6000K	>70	AC100-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	738289118
FJ-SL123-200W	200W	125lm/w	3000-6000K	>70	AC100-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	922362140
FJ-SL123-240W	240W	125lm/w	3000-6000K	>70	AC100-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	922362140
