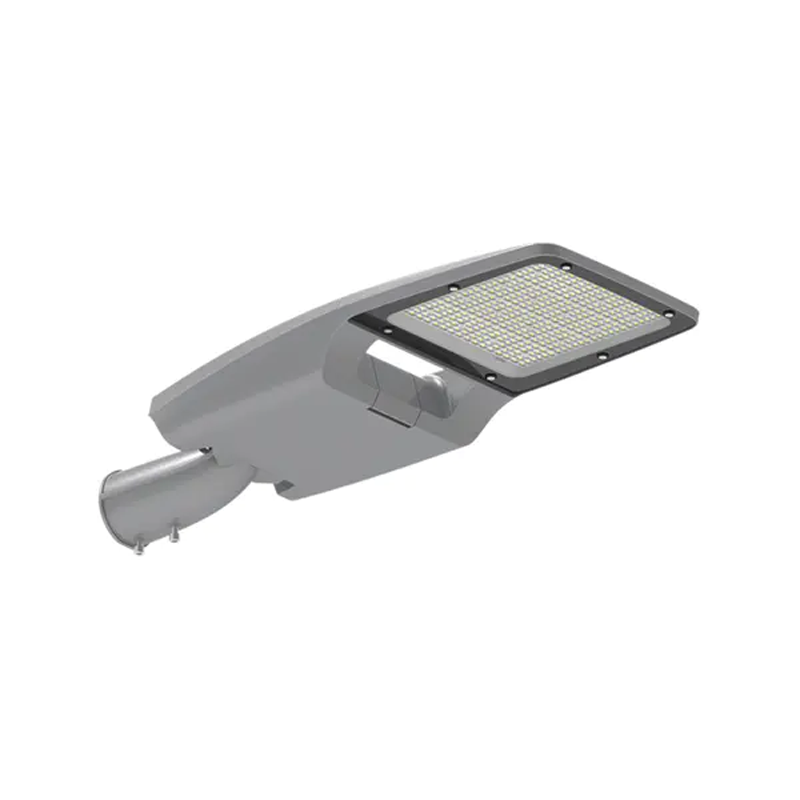

FJ-SL-YS Series Street Light
Key attributes
| Brand | Wone Store |
| Model NO. | FJ-SL-YS Series Street Light |
| Ingress Protection | IP66 |
| Rated power | 300W |
| Wide voltage input range | AC 100-265V |
| Lumen efficiency | 200lm/W |
| CCT(color temperature) | 3000-6000K |
| CRI(color render index) | ≥70 |
| beam angle | type Ⅰ~Ⅴ |
| PF(Power Factor) | ≥0.95 |
| Series | FJ-SL-YS Series |
Product descriptions from the supplier
Overview
hollow design which separates the LED modules and electrical compartment, so each parts heat dissipation are separate, do not interact.
Hollow design can take full advantage of air convection, speed up the heat dissipation of the housing , and improve the heat dissipation performance
The second design concept is combining internal and external fins, it will increase the heat dissipation area and speed up the heat dissipation, and the shape will be more elegant.
Tool-free switch design, it will improve maintenance efficiency
The adjustable holder, 50mm & 60mm for optional, can horizontal installation & vertical installation, tilt up & down 15degree.
The third design concept is special double-hole outgoing line design can meet the requirements of high-voltage outgoing line and 0-10V signal outgoing line at the same time, and solve the problem that many 0-10V dimming projects need separate signal cable output.
The diameter of outgoing line are: 12mm & 9mm.
Can be equipped with anti-fall safety rope.
The lighting modules area add the respirator to balance the internal and external air pressure and prevent the fog.
technical parameters
Model |
Power |
Lumen efficiency |
CCT |
CRI |
Input voltage |
IP |
Beam angel |
PF |
Dimension |
FJ-SL-YS20W-SS |
20W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS30W-SS |
30W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS50W-SS |
50W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS60W-SS |
60W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS80W-SS |
80W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS100W-SS |
100W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS120W-SS |
120W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS150W-SS |
150W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS200W-SS |
200W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS240W-SS |
240W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
FJ-SL-YS300W-SS |
300W |
200lm/w |
3000-6000K |
>70 |
AC100-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
498*180*115 |
