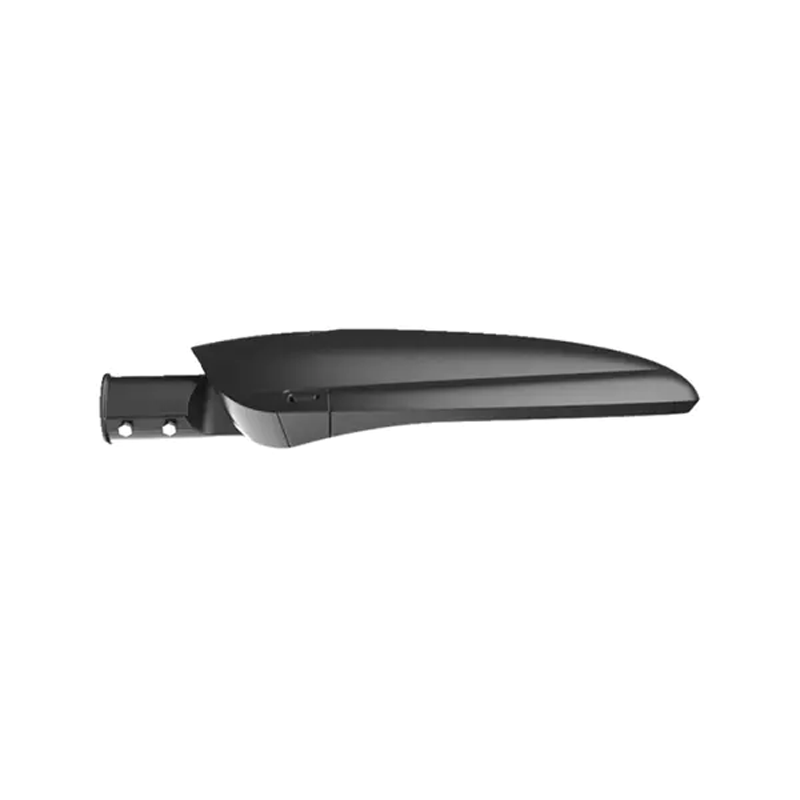

FJ-SL111 Series Street Light

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	FJ-SL111 Series Street Light
Ingress Protection	IP66
Rated power	200W
Wide voltage input range	AC 100-265V
Lumen efficiency	130~160lm/W
CCT(color temperature)	3000-6000K
CRI(color render index)	≥70
beam angle	type Ⅰ~Ⅴ
PF(Power Factor)	≥0.95
Series	FJ-SL111 Series

Product Detail

Overview

Up to 100,000 hours at L70 with low maintenance costs.

Excellent heat dissipation.

Long service life due to high-quality electrical components.

Tool-less drive opening for easy maintenance.

Integrated ADC12 die-cast aluminum design, excellent heat dissipation.

Stable light output without flicker, power factor 0.95 to maintain grid stability.

IP66, IK08 lamps and lanterns protection level, to meet the high temperature and high humidity and other environmental use.

Can be installed horizontally or vertically adjustable +15°, can meet the different angles of lighting needs.

technical parameters

Model	Power	Lumen efficiency	CCT	CRI	Input voltage	IP	Beam angel	PF	Dimension
FJ-SL111-100W	100W	130-160lm/w	3000-6000K	>70	AC180-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	691305134
FJ-SL111-120W	120W	130-160lm/w	3000-6000K	>70	AC180-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	691305134
FJ-SL111-150W	150W	130-160lm/w	3000-6000K	>70	AC180-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	691305134
FJ-SL111-200W	200W	130-160lm/w	3000-6000K	>70	AC180-265V	IP66	Type Ⅰ~Ⅴ	≥0.95	830385165
