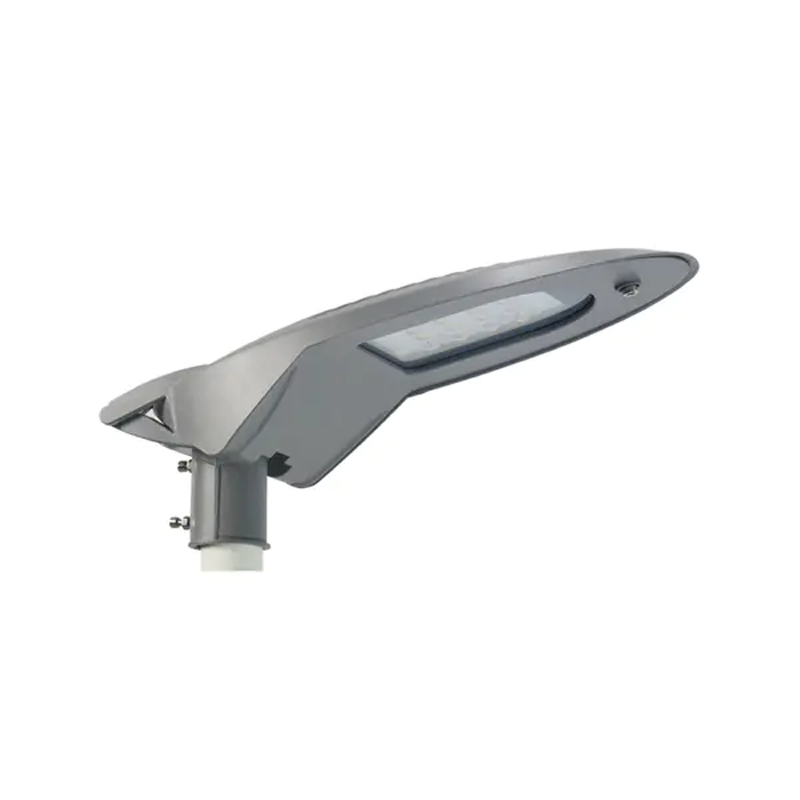

FJ-SL104 Series Street Light
Key attributes
| Brand | Wone Store |
| Model NO. | FJ-SL104 Series Street Light |
| Ingress Protection | IP66 |
| Rated power | 200W |
| Wide voltage input range | AC 100-265V |
| Lumen efficiency | 125lm/W |
| CCT(color temperature) | 3000-6000K |
| CRI(color render index) | ≥70 |
| beam angle | type Ⅰ~Ⅴ |
| PF(Power Factor) | ≥0.95 |
| Series | FJ-SL104 Series |
Product descriptions from the supplier
Overview
Adoption of tempered glass with high light transmittance.
One-piece ADC12 die-cast aluminum design with excellent heat dissipation.
Up to 100,000 hours at L70, low maintenance cost.
I/T/T/IV/V type light distribution can meet different requirements of road lighting.
Stable light output without strobe, power factor 0.95 to maintain grid stability.
IP66, IK08 lamps and lanterns protection level, to meet the high temperature and high humidity and other environmental use.
Can be installed horizontally and vertically, adjustable angle +15°, can meet the different angles of lighting needs.
technical parameters
Model |
Power |
Lumen efficiency |
CCT |
CRI |
Input voltage |
IP |
Beam angel |
PF |
Dimension |
FJ-SL104-30W |
30W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
475*238*103 |
FJ-SL104-50W |
50W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
475*238*103 |
FJ-SL104-80W |
80W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
646*303*129 |
FJ-SL104-100W |
100W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
646*303*129 |
FJ-SL104-120W |
120W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
646*303*129 |
FJ-SL104-150W |
150W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
864*374*172 |
FJ-SL104-200W |
200W |
125lm/w |
3000-6000K |
>70 |
AC180-265V |
IP66 |
Type Ⅰ~Ⅴ |
≥0.95 |
864*374*172 |
