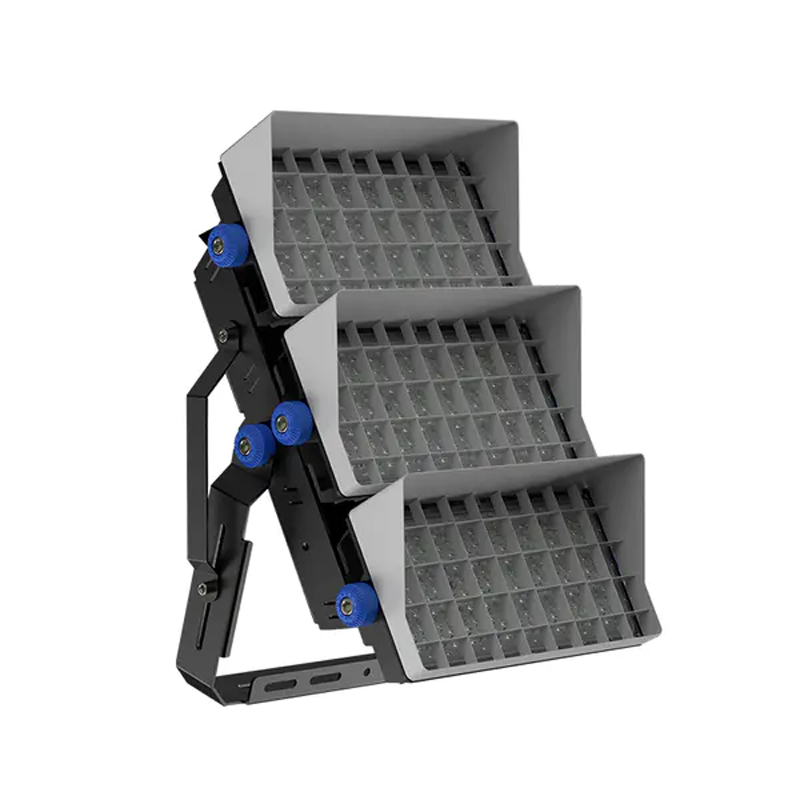

FJ-FL-G06 Series High Bay Light
Key attributes
| Brand | Wone Store |
| Model NO. | FJ-FL-G06 Series High Bay Light |
| Ingress Protection | IP66 |
| Rated power | 2000W |
| Wide voltage input range | AC 100-277V |
| Lumen efficiency | 130~150lm/W |
| CCT(color temperature) | 3000-6000K |
| CRI(color render index) | ≥80 |
| beam angle | 15°/30°/45°/60° |
| PF(Power Factor) | ≥0.98 |
| Series | FJ-FL-G06 Series |
Product descriptions from the supplier
Overview
G06 pitch lights represent the future of energy efficient lighting for industrial
applications worldwide, saving more than 50% energy compared to traditional light sources;
Low maintenance costs and low carbon emissions;
With its cutting-edge technology and unique optical design, its performance is far superior to traditional lamps;
Professional lighting distribution of 5/10/15/30/60 degrees to reduce light glare;
Advanced airflow thermal management by riveting heat pipes to f ins;
Hat technology, seamless tubing and fins patented technology;
IP66 waterproof rating, wind resistance class 17.
technical parameters
Model |
Power |
Lumen efficiency |
CCT |
CRI |
Input voltage |
IP |
Beam angel |
PF |
Dimension |
FJ-FL-G06-500W |
500W |
130~150lm/w |
3000-6000K |
>80 |
AC100-277V |
IP66 |
15°/30°/45°/60° |
≤0.98 |
φ349x540x250 |
FJ-FL-G06-1000W |
1000W |
130~150lm/w |
3000-6000K |
>80 |
AC100-277V |
IP66 |
15°/30°/45°/60° |
≤0.98 |
φ604x540x520 |
FJ-FL-G06-1500W |
1500W |
130~150lm/w |
3000-6000K |
>80 |
AC100-277V |
IP66 |
15°/30°/45°/60° |
≤0.98 |
φ604x540x790 |
FJ-FL-G06-2000W |
2000W |
130~150lm/w |
3000-6000K |
>80 |
AC100-277V |
IP66 |
15°/30°/45°/60° |
≤0.98 |
φ604x540x1060 |
