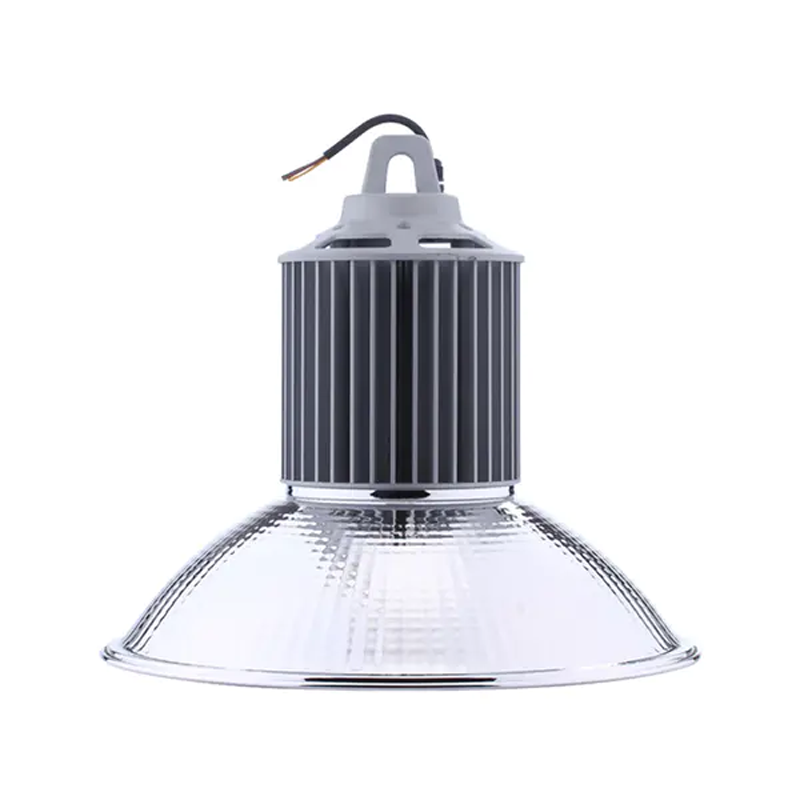

FJ-IL-G01 Series High Bay Light

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	FJ-IL-G01 Series High Bay Light
Ingress Protection	IP65
Rated power	300W
Wide voltage input range	AC 100-265V
Lumen efficiency	130lm/W
CCT(color temperature)	3000-6000K
CRI(color render index)	≥80
beam angle	45°/60°/90°/120°
PF(Power Factor)	≥0.95
Series	FJ-IL-G01 Series

Product Detail

Overview

Professional finned heat sink, air convection design, optimized air ducts,all-round three-dimensional heat dissipation.

Adopt heat pipe riveting technology, combined with HDT technology and die-casting technology, fast heat conduction.

No lead, mercury and other pollutants.

Fast startup.

Long life time.

80% less power consumption than traditional lamps.

technical parameters

Model	Power	Lumen efficiency	CCT	CRI	Input voltage	IP	Beam angel	PF	Dimension
FJ-IL-G01-60W	60W	130lm/w	3000-6000K	>80	AC100-265V	IP65	45°/60°/90°/120°	≥0.95	φ435xH382
FJ-IL-G01-80W	80W	130lm/w	3000-6000K	>80	AC100-265V	IP65	45°/60°/90°/120°	≥0.95	φ435xH382
FJ-IL-G01-100W	100W	130lm/w	3000-6000K	>80	AC100-265V	IP65	45°/60°/90°/120°	≥0.95	φ435xH414
FJ-IL-G01-120W	120W	130lm/w	3000-6000K	>80	AC100-265V	IP65	45°/60°/90°/120°	≥0.95	φ435xH414
FJ-IL-G01-150W	150W	130lm/w	3000-6000K	>80	AC100-265V	IP65	45°/60°/90°/120°	≥0.95	φ435xH454
FJ-IL-G01-240W	200W	130lm/w	3000-6000K	>80	AC100-265V	IP65	45°/60°/90°/120°	≥0.95	φ435xH489
FJ-IL-G01-240W	240W	130lm/w	3000-6000K	>80	AC100-265V	IP65	45°/60°/90°/120°	≥0.95	φ435xH510
FJ-IL-G01-300W	300W	130lm/w	3000-6000K	>80	AC100-265V	IP65	45°/60°/90°/120°	≥0.95	φ435xH510
