distribution box
Key attributes
| Brand | Wone Store |
| Model NO. | distribution box |
| Rated voltage | 400V |
| Rated normal current | 200A |
| Series | S31 |
Product descriptions from the supplier

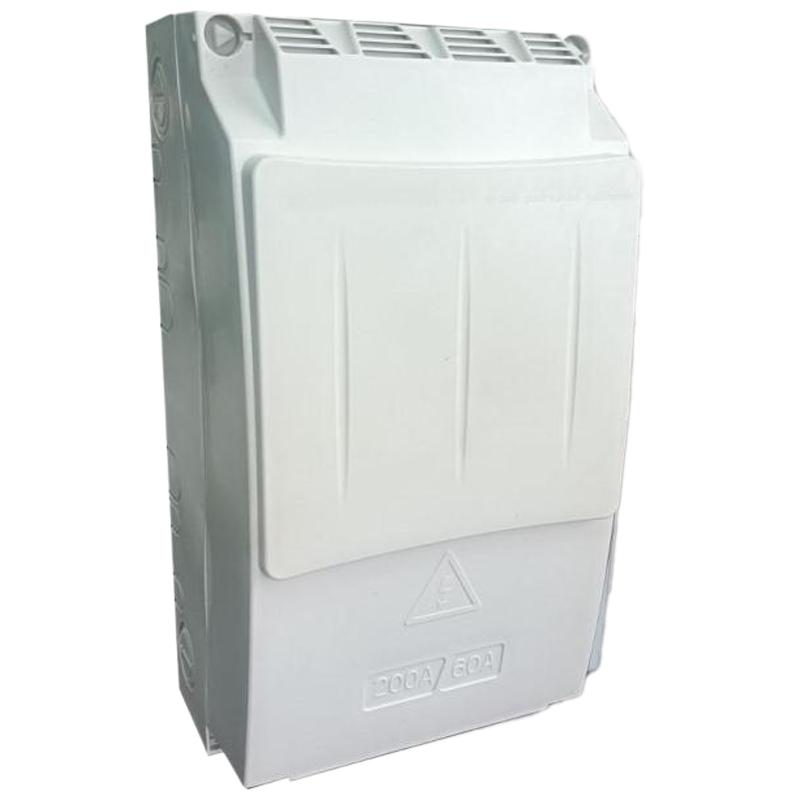

The floor distributor consists of a base with a cover made of synthetic material, 2 base support bars and a terminal block.
The impact protection index of the distributor is IK10.
The main terminal block is removable and allows for a stripping connection for conductors with cross-sections from 25 to 95mm2;Cu, or bars from 24 to 96mm2;.
The power is limited to 45kVA per distributor. The tightening of the terminals is done with a 6-point insulated key.
The floor distributor receives 14x51 and 22x58 bases with lugs
The distributor allows up to 6 single-phase outputs or 2 three-phase outputs within the limit of 45kVA per distributor.
It is designed according to HN62-S-31
About install
The 200A floor distributor can branch off up to 6 single-phase connections or 2 three-phase connections a par
configuration
6*60A single phase or 2*60A 3-phase power supply
dimension（LxWxH）:390x210x162
