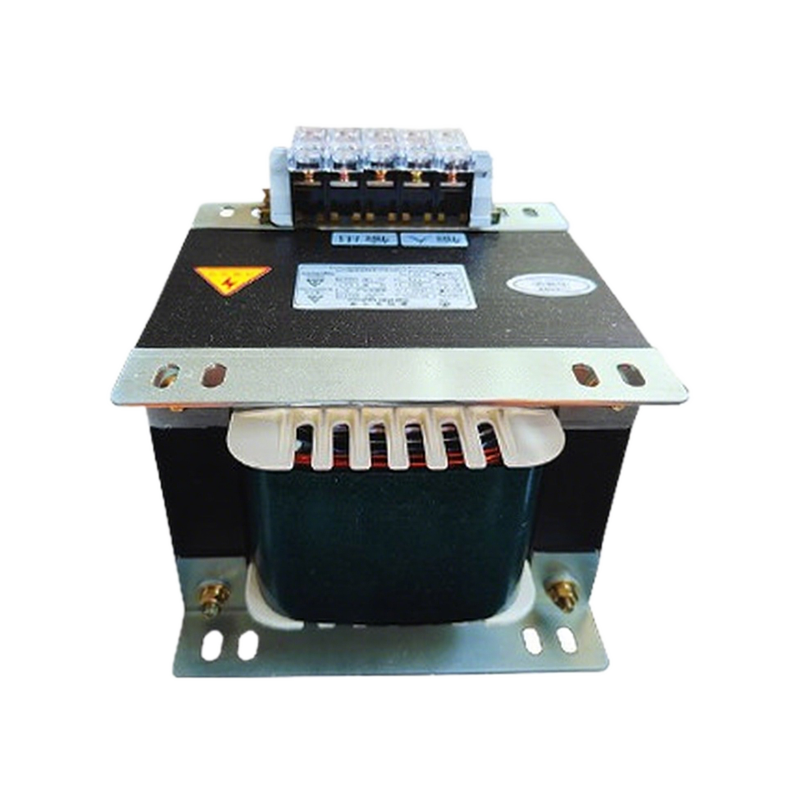

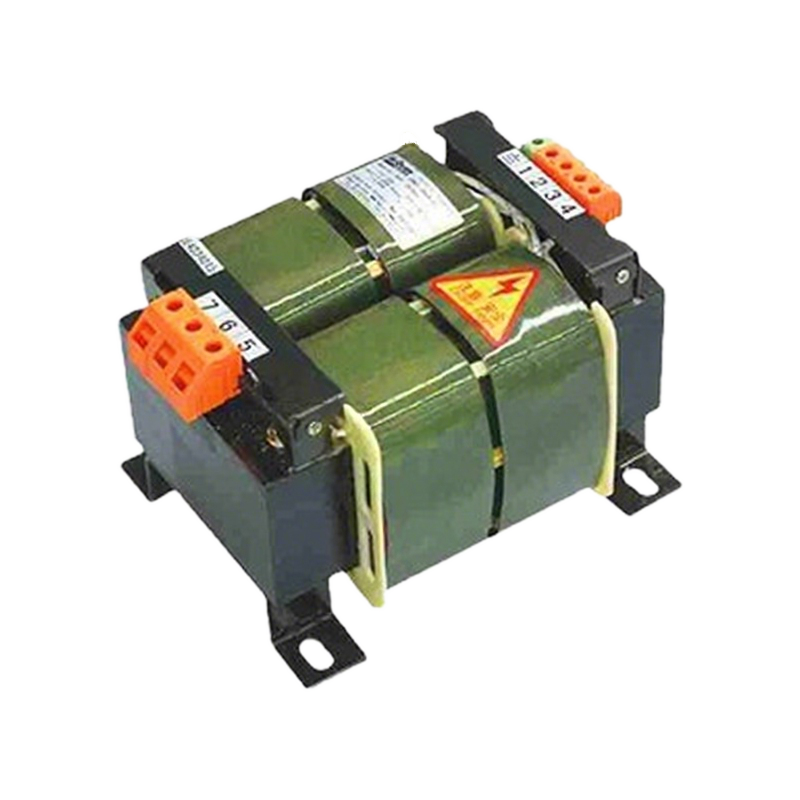

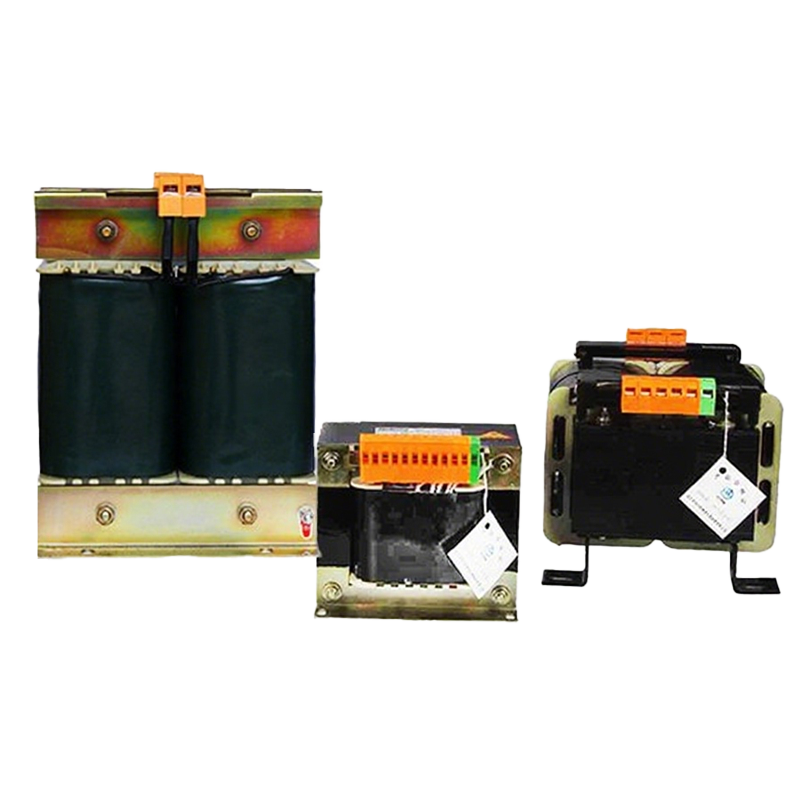

CXK Series control transformer
Key attributes
| Brand | POWERTECH |
| Model NO. | CXK Series control transformer |
| Rated capacity | 5kVA |
| Series | CXK Series |
Product descriptions from the supplier
Overview
1. Installation methods can be vertical or horizontal, with advantages of being compact, secure, good heat dissipation, and strong load capacity.
2. Using a sedimentation-type integral impregnation process, providing strong resistance to vibration, moisture, and oil contamination
Environmental Conditions for Used
Altitude: ≤ 2000m (products for altitudes above 2000m can be customized)
Ambient temperature: -40℃ ~+55℃
Relative humidity:≤ 95%
Applications:
The CXK series marine control transformers are suitable for ship lighting, control, and isolation power supply. Machine tool control transformers include the JBK series and BK series, with main func tions similar to the CXK series, suitable for lighting, control power supply, signal lamp power supply, and isolation power supply for mechanical equipment in various industries.
If you need to know about more parameters, Please check the model selection manual.↓↓↓
Or you are welcome to contact us.↓↓↓
