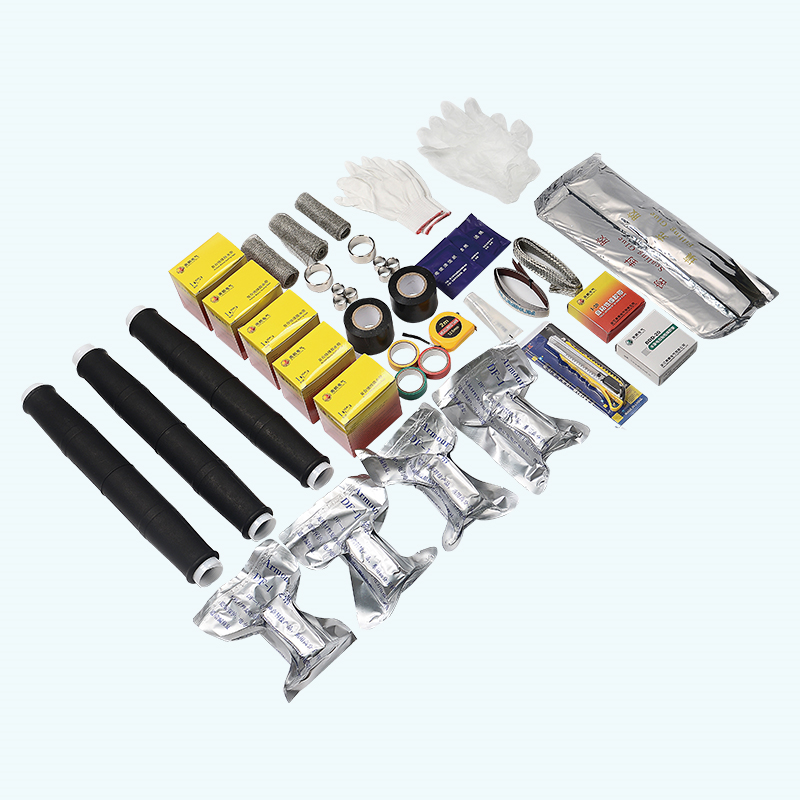

Cold shrinkable joint kit
Key attributes
| Brand | Switchgear parts |
| Model NO. | Cold shrinkable joint kit |
| Rated voltage | 35kV |
| Series | JLS |
Product descriptions from the supplier
Cold shrink cable accessories are widely used in the infrastructure construction of power cable transmission and distribution networks. They use liquid silicone rubber to ensure excellent insulation and high recovery elasticity. After installation, they always provide constant and persistent radial pressure to the cable body, with small partial discharge and "breathing in" with the cable body. The terminal body is matched with cold shrink finger sleeves, cold shrink insulation tubes, and cold shrink terminal sealing tubes to ensure excellent elastic sealing and moisture-proof performance of the accessories. Easy installation, low technical dependence on operation, short stripping distance during cable pretreatment, and small installation space required. The grounding adopts constant force spring technology, which does not require welding or copper wire tying, making it faster and more reliable.
Serial No |
Product name |
Spec model |
Applicable of cable cross-section mm² |
3 Cores |
|||
1 |
26/35kV Cold shrinkable joint kit |
JLS - 35/3.1 |
50 - 120 |
2 |
JLS - 35/3.2 |
150 - 240 |
|
3 |
JLS - 35/3.3 |
300 - 400 |
|
4 |
JLS - 35/3.4 |
500 |
|
5 |
12/20kV Cold shrinkable joint kit |
JLS - 20/3.1 - 1/2 |
25 - 50 |
6 |
JLS - 20/3.2 - 1/2 |
70 - 120 |
|
7 |
JLS - 20/3.3 - 1/2 |
150 - 240 |
|
8 |
JLS - 20/3.4 - 1/2 |
300 - 400 |
|
9 |
8.7/15kV Cold shrinkable joint kit |
JLS - 15/3.1 |
25 - 50 |
10 |
JLS - 15/3.2 |
70 - 120 |
|
11 |
JLS - 15/3.3 |
150 - 240 |
|
12 |
JLS - 15/3.4 |
300 - 400 |
|
13 |
JLS - 15/3.5 |
500 - 630 |
