CJT1 Series AC Contactor
Zhejiang Wone IT Service Co., Ltd...
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Switchgear parts |
| Model NO. | CJT1 Series AC Contactor |
| Rated normal current | 150A |
| Series | CJT1 |
Product descriptions from the supplier
Description
Application
CJT1 series AC contactor (hereinafter referred to ascontactor) is suitable for the power system of AC 50Hzand rated working voltage up to 660V or the power system of rated working current up to 150A at 380Vand rated working current up to 100A at 660V underAC－3 utilization, to make and break circuit in a fardistance, or to frequently start and control AC motor.The contactor can be combined with thermal overloadrelay or electronic protection equipment to form intoan electromagnetic starter, to protect the circuit againstpossible overload. The products are in conformity withsuch standards as GB 14048.4 and IEC 60947-4-1.
Main Technical Data
| Type | Ui (V) | Ue (V) | Ith (A) | Ie under intermittent periodic duty - AC-1 | Ie under intermittent periodic duty - AC-2 | Ie under intermittent periodic duty - AC-3 | Ie under intermittent periodic duty - AC-4 | AC-3 Pe (kW) |
|---|---|---|---|---|---|---|---|---|
| CJT1-10 | 690 | 220 | 10 | 10 | 10 | 10 | 10 | 2.2 |
| 380 | 10 | 4 | ||||||
| 660 | 5 | 5 | 5 | 4 | ||||
| CJT1-20 | 690 | 220 | 20 | 20 | 20 | 20 | 20 | 5.5 |
| 380 | 20 | 10 | ||||||
| 660 | 12 | 12 | 12 | 10 | ||||
| CJT1-40 | 690 | 220 | 40 | 40 | 40 | 40 | 40 | 11 |
| 380 | 40 | 20 | ||||||
| 660 | 25 | 25 | 25 | 20 | ||||
| CJT1-60 | 690 | 220 | 60 | 60 | 60 | 60 | 60 | 17 |
| 380 | 60 | 30 | ||||||
| 660 | 40 | 40 | 40 | 35 | ||||
| CJT1-100 | 690 | 220 | 100 | 100 | 100 | 100 | 100 | 28 |
| 380 | 100 | 50 | ||||||
| 660 | 60 | 60 | 60 | 50 | ||||
| CJT1-150 | 690 | 220 | 150 | 150 | 150 | 150 | 150 | 43 |
| 380 | 150 | 75 | ||||||
| 660 | 100 | 100 | 100 | 75 |

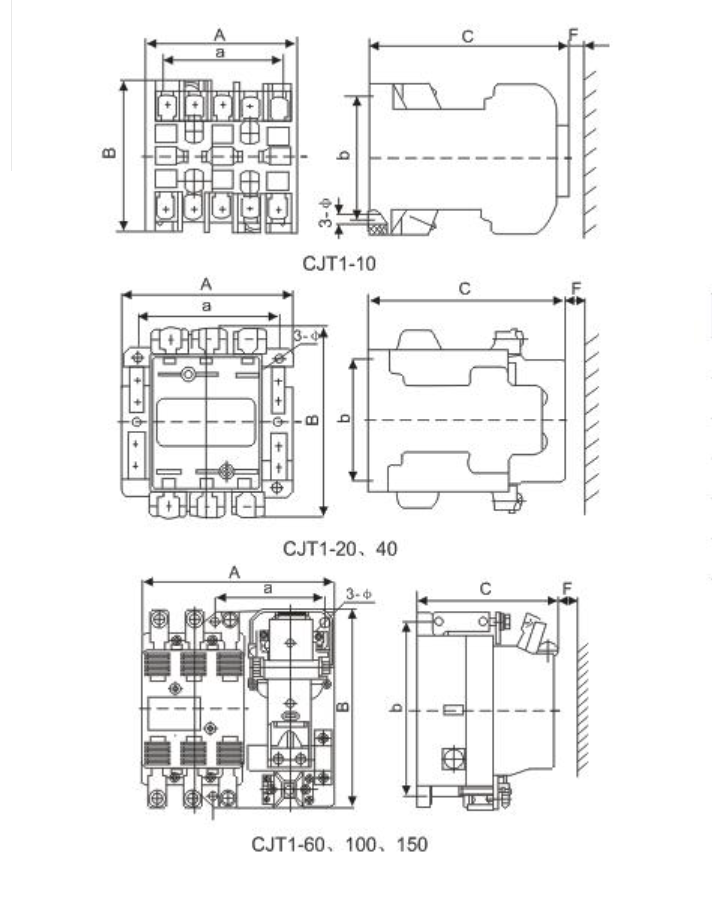

External And Installation Size
| Type | A | a | B | b | C | φ | F |
|---|---|---|---|---|---|---|---|
| CJT1-10 | 70 | 56 | 70 | 58 | 95 | 4.5 | >15 |
| CJT1-20 | 94 | 76 | 104 | 68 | 110 | 5 | >15 |
| CJT1-40 | 116 | 100 | 131 | 75 | 126 | 5.5 | >15 |
| CJT1-60 | 171 | 98 | 182 | 160 | 137 | 7 | >35 |
| CJT1-100 | 198 | 110 | 206 | 180 | 143 | 9 | >45 |
| CJT1-150 | 222 | 130 | 234 | 205 | 154 | 11 | >55 |
