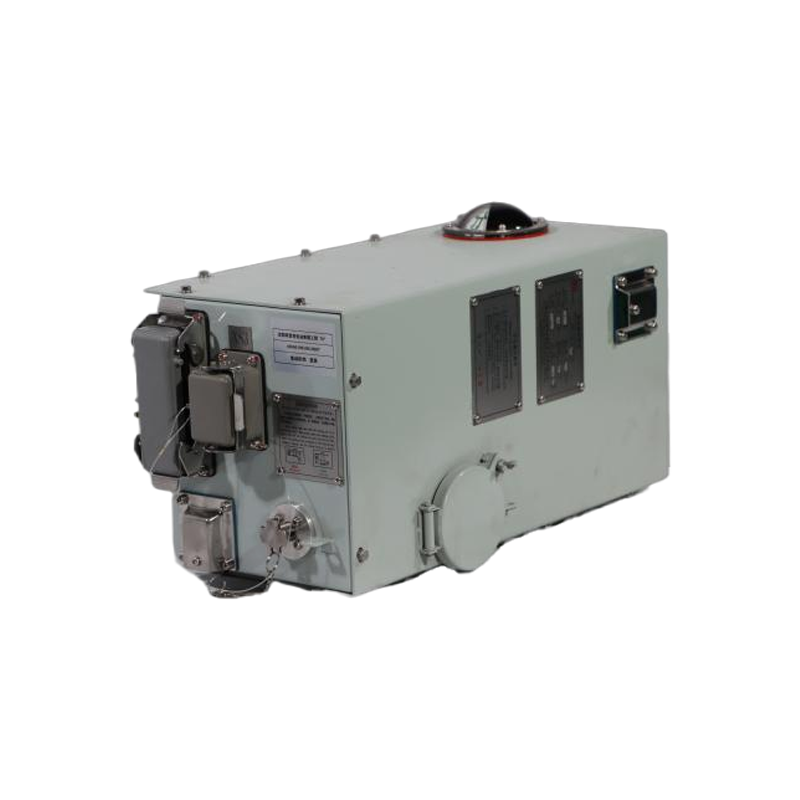

CJ34 Grounding switch and isolation switch dedicated mechanism

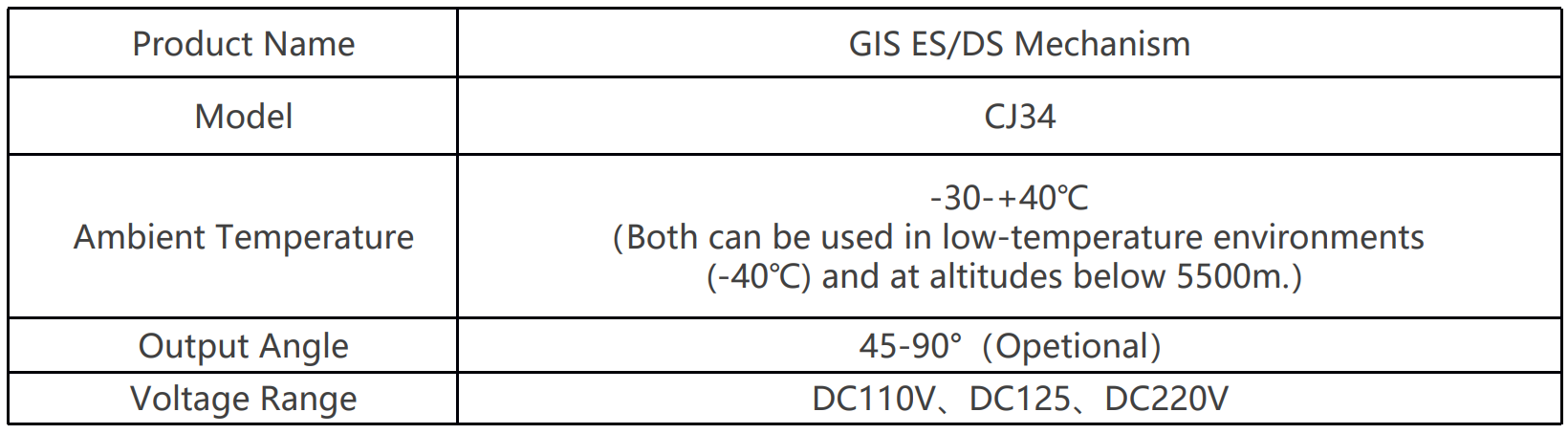

Key attributes
| Brand | Switchgear parts |
| Model NO. | CJ34 Grounding switch and isolation switch dedicated mechanism |
| Rated voltage | 110kV |
| Series | CJ34 |
Product descriptions from the supplier
The CJ34 grounding switch and isolation switch dedicated mechanism is an integrated driving component designed specifically for 110kV-252kV high-voltage grounding switches and isolation switches. With the core advantages of "dual equipment adaptation, coordinated opening and grounding, and strong outdoor reliability", it accurately completes opening and closing and grounding operations through spring energy storage to drive the two types of switches. It is widely used in outdoor substations and transmission line hubs, providing integrated power support for high-voltage equipment maintenance, isolation, and safe grounding.
The CJ34 electric operating mechanism is available for ZF10-126, ZF5T-126, ZF12-126, ZF4A-126, ZF31-126
ZF21-126, ZF29-126, ZF25-126, ZF39-126, ZF35-126, ZF34-252 and their required torques
Equivalent for the closing and opening of isolating switches, grounding switches, and load switches.
This organization ensures the opening and closing position and output angle through the forward and reverse rotation function of the motor and the use of worm gear transmission. The institution has both manual and electric functions.
