CBGS-0 Gas-Insulated Switchgear

Name: CBGS-0 Gas-Insulated Switchgear
Brand: Chengdu Fabo Automated Turnkey Equipment Co., Ltd.
SKU: 1645
Availability: InStock

Chengdu Fabo Automated Turnkey Equipment Co., Ltd.

11yrs + staff 20000+m² US$400000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Schneider
Model NO.	CBGS-0 Gas-Insulated Switchgear
Rated voltage	38kV
Series	CBGS-0

Description

General

CBGS-0 Medium Voltage (MV) switchgear is compact and easy to install and operate. Due to the insulating gas as well as the solidly insulated busbar and cable connections the medium voltage circuit is protected from environmental influences reducing the risk of arc flash events.

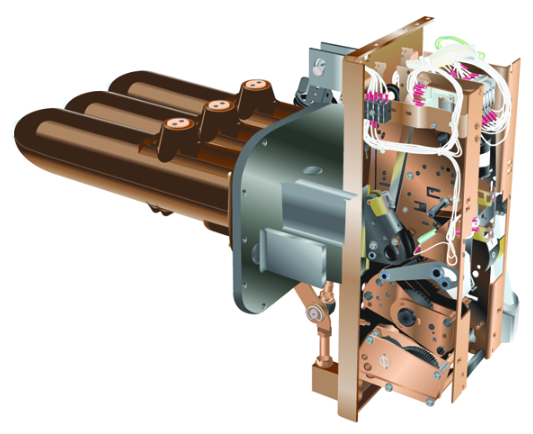

Each section consists of a sealed-for-life SF₆ tank which contains the fixed SF range circuit breaker and disconnect switch. By design there is no gas handling throughout the service life of the equipment from installation until recycling at the end of life of the switchgear.

Front accessible and ideal for a variety of applications from transformer substations to primary power distribution in markets ranging from mining and metals renewable installations container substations and heavy industry where space is at a premium.

CBGS-0 Gas-Insulated Switchgear

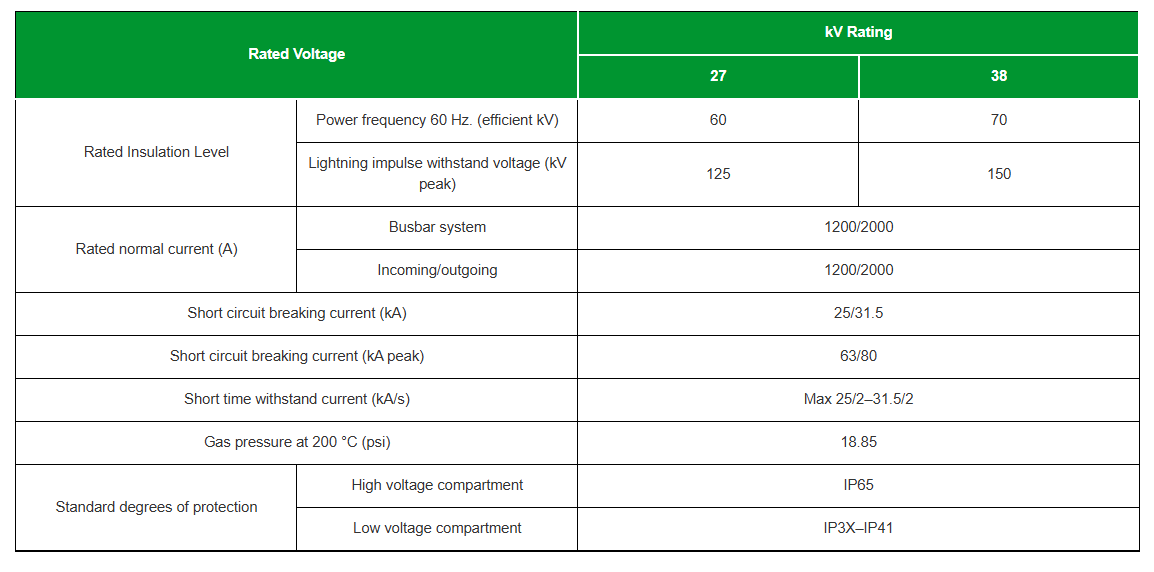

Ratings

CBGS-0 Gas-Insulated Switchgear

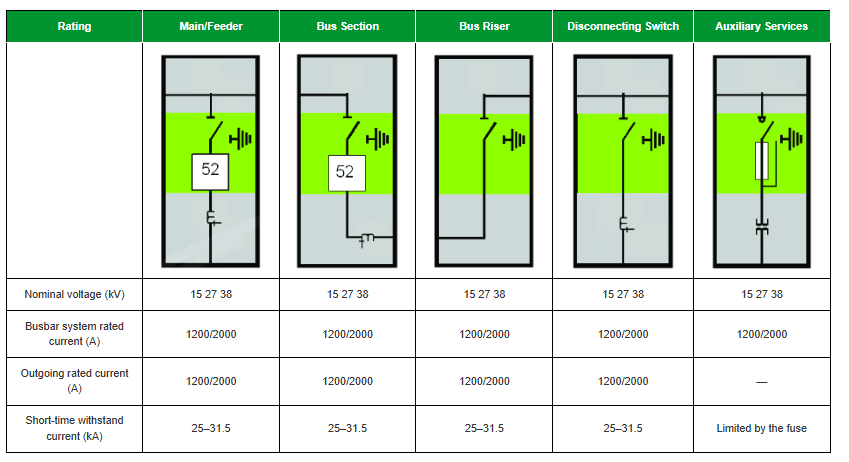

General Electrical Characteristics

CBGS-0 Gas-Insulated Switchgear

Know your supplier

Schneider

Chengdu Fabo Automated Turnkey Equipment Co., Ltd.
11yrs 20000+m² US$400000000+ China

Online store

On-time delivery rate

Response time

100.0%

≤4h

Company overview

Workplace: 20000m² Total staff: Highest Annual Export(usD): 400000000

Services

Business Type: Manufacture/Sales

Main Categories: Medium and High Voltage Switchgear/Construction Equipment and Tools/Lightning Protection and Electrical Insulation/Substations and E-Houses/Power Electronic Equipment/Electrical Panel and Controlgear/Power Quality Equipment

Negotiable

Pricing calculator

Model

CBGS-0，38kV

Warranty by

Whole life care manager

Whole-life care management services for equipment procurement, use, maintenance, and after-sales, ensuring safe operation of electrical equipment, continuous control, and worry-free electricity consumption.

The equipment supplier has passed platform qualification certification and technical evaluation, ensuring compliance, professionalism, and reliability from the source.
