| Brand | ABB |
| Model NO. | Air-insulated switchgear for green application/Ring Main Unit12kV 17.5kV |
| Rated voltage | 17.5kV |
| Rated frequency | 50/60Hz |
| Series | UniGear 500R |

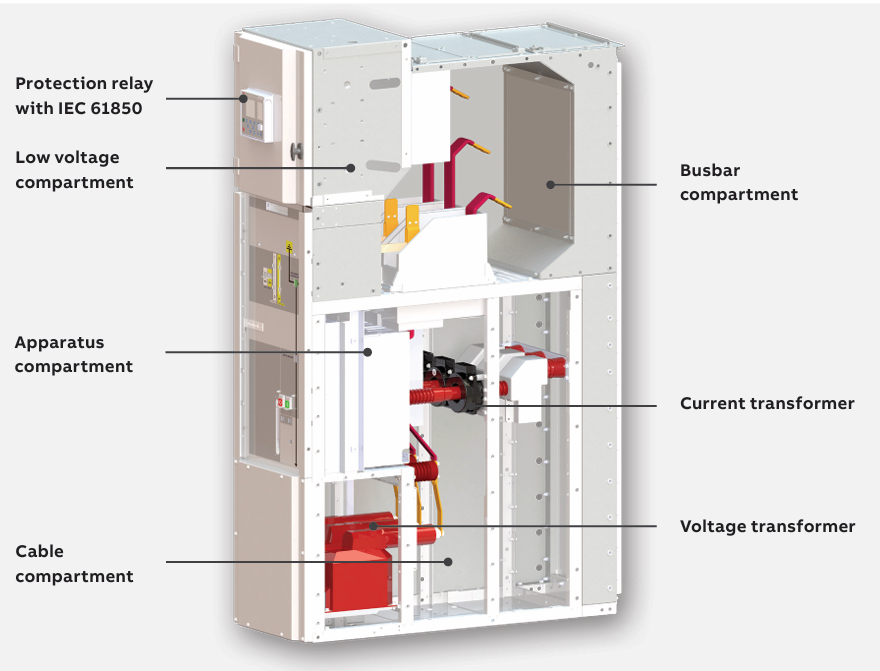

UniGear 500R is very space efficient solution, designed to reduce the width of the medium-voltage airinsulated switchgear. Panel design is only 500 mm wide for feeder current up to 2000 A.Its compact design makes UniGear 500R ideal for container installation for primary distribution.
One of the main characteristics of the UniGear 500R switchgear is the isolation of the circuit-breaker from the main busbars by means of the three position disconnector.
Standards: IEC, ENA
Design: LSC-2A, PM
Accessibility type: A
Internal arc class: FLR
Highly customized versions available
Switchgear can be back to wall installed
Fully type tested according to IEC 62271-200
Fitted with safety interlocks
Vacuum circuit-breaker in a removable arrangement
Vmax vacuum circuit breaker with spring actuator
Current and voltage sensors
Conventional current and voltage instrument transformers
Relion® protection and control relays
Optical arc fault protection
Surge arresters
Substation management unit COM600S
Smart Asset Management solutions
| Switchgear | Unit | 12 kV | 17.5 kV |
|---|---|---|---|
| Internal Arc Classification (IAC) | - | AFLR | AFLR |
| Rated voltage | kV | 12 | 17.5 |
| Maximum service voltage | kV | 12 | 15.4 |
| Insulation levels / power frequency / lightning impulse | kV | 12 / 28 / 75 | 17.5 / 38 / 95 |
| Rated frequency | Hz | 50 / 60 | 50 / 60 |
| Rated main busbar current (40°C) | A | ...4 000 | ...4 000 |
| Rated feeder current (40°C) | A | ...2 000 | ...2 000 |
| Rated short-time current | kA × 3 s | ...31.5 | ...31.5 |
| Arc proof withstand current (IEC 62271-200) | kA × 1 s | ...31.5 | ...31.5 |
| Height | mm | 2 200 ... 2 533* | 2 200 ... 2 533* |
| Width | mm | 500 / 1 000 | 500 / 1 000 |
| Depth | mm | 1 320 | 1 320 |
| Technical catalog | - | 1VCP000285 | 1VCP000285 |
