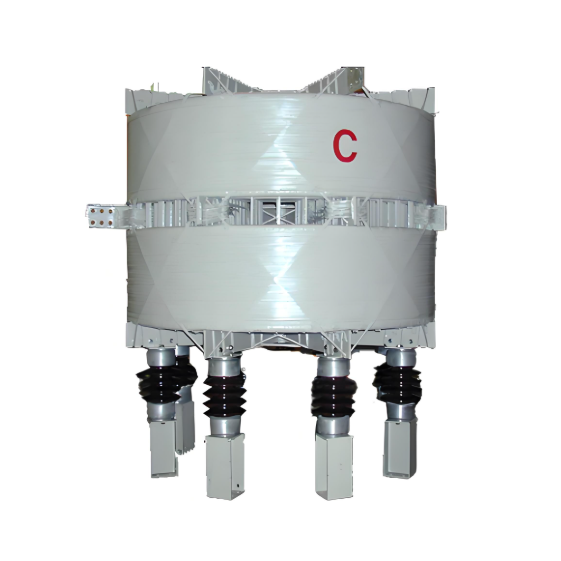

Air-Core Split current-limiting Reactors
Zhejiang Powertech electric CO.,Ltd.
7yrs +
staff 580000+m² US$120000000+
Key attributes
| Brand | POWERTECH |
| Model NO. | Air-Core Split current-limiting Reactors |
| Rated voltage | 66kV |
| Rated frequency | 50/60Hz |
| Series | FKD (S) CKL |
Product descriptions from the supplier
Description
Product Overview
Product model: FKD (S) CKL-XX (voltage level)-2xXX (rated current)-XX (reactance) Example: FKSCKL-10.5-2x3000-10.Main application fields: power plants, power stations, industrial and mining enterprises, and user distribution stations at 63kV and below.
Product superiority
Suitable for power systems at 66kV and below, with a rated current range of 2x1,000~2x80,000A, a noise level below 58dB, and F (H) insulation class, for both indoor and outdoor application. Widely applied in power plants, power stations, industrial and mining enterprises, and user distribution stations.
The product features good inductive linearity, precise inductance value, low losses, uniform temperature distribution, high insulation strength, high mechanical strength, low partial discharge, low noise, small size, light weight, moisture-proof, flame-retardant, strong overload capability, high reliability, no pollution, maintenance-free, and good environmental performance. It can be installed and operated both outdoor and indoor, especially in places requiring high dynamic thermal stability, fire performance, and outdoor operation, where its advantages can be fully utilized.
Product-related parameters
Rated Current: 2x1,000~2x80,000A
Rated Voltage: 66kV and below
Noise level: ≤58dB
Insulation class: F (H)
Application: Both indoor and outdoor
