| Brand | Schneider |
| Model NO. | 15kV Smart MV Air Insulated Switchgear/Ring Main Unit |
| Rated voltage | 15kV |
| Series | SureSeT |
Smarter
SureSeT digitizes and simplifies your electrical distribution system with embedded sensors and EcoStruxure™ connectivity. Now you can operate and monitor equipment from a distance with proactive, condition-based maintenance and powerful insights, anywhere, anytime.
Smaller
25% smaller than previous generations and powered by the innovative EvoPact™ digital circuit breaker. SureSeT’s compact, compartmentalized design allows you to do more with less.
Stronger
SureSeT boasts a durable design, tested above normal industry standards with 3x more operations. Together with condition-monitoring capabilities that provide up to 5x longer maintenance cycles.
| Designation | Unit | Value |
|---|---|---|
| Rated voltage | kV | 5, 15 |
| Rated frequency | Hz | 50/60 |
| Rated power frequency withstand voltage | kV | 38 |
| Rated short-circuit breaking current | kA | 25, 40 |
| Rated duration of short circuit | s | 2 |
| Rated normal current | A | 1200, 2000 |
| Rated operation sequences | - | O-0.3s-CO-15s-CO O-0.3s-CO-3min-CO O-3min-CO-3min-CO |
| Mechanical endurance | Nb operations | 30,000 |
| Electrical endurance at nominal current | Nb operations | 30,000 |
| Electrical endurance on short circuit | Nb operations | 100 |

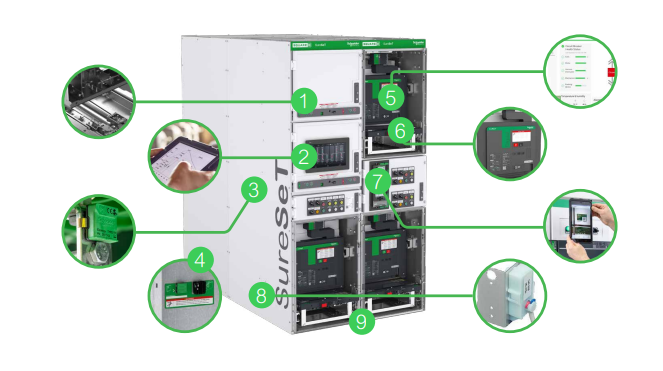

Integrated electric racking：Selectable on circuit breaker and auxiliary device compartments. (VT, CPT)
Digital control：Operate live equipment from a smart device or HMI to maintain a greater working distance.
Thermal monitoring：Wireless sensors help detect temperature anomalies to reduce risks.
Environmental monitoring：Wireless sensors help detect abnormal humidity and accelerated aging.
Circuit breaker monitoring：Monitor wear and tear through embedded sensors for preventive maintenance.
Stackable breakers：Two-high breaker configurations available up to 15 kV 2000A 40kA.
QR code access：Quickly connect to the Digital Logbook for paperless documentation and records.
Internal arc detection：Optical sensors and relay provide fast internal arc clearance, decreasing risks.
Compartmentalized narrow design：26" wide sections with separation of breakers, low voltage, and auxiliary devices.
