| Brand | Xinyouxiang |
| Model NO. | 10-20 kV tunnel plug-in quick connector (aluminum alloy waterproof shell) |
| Rated voltage | 12/20kV |
| Series | JCKL |

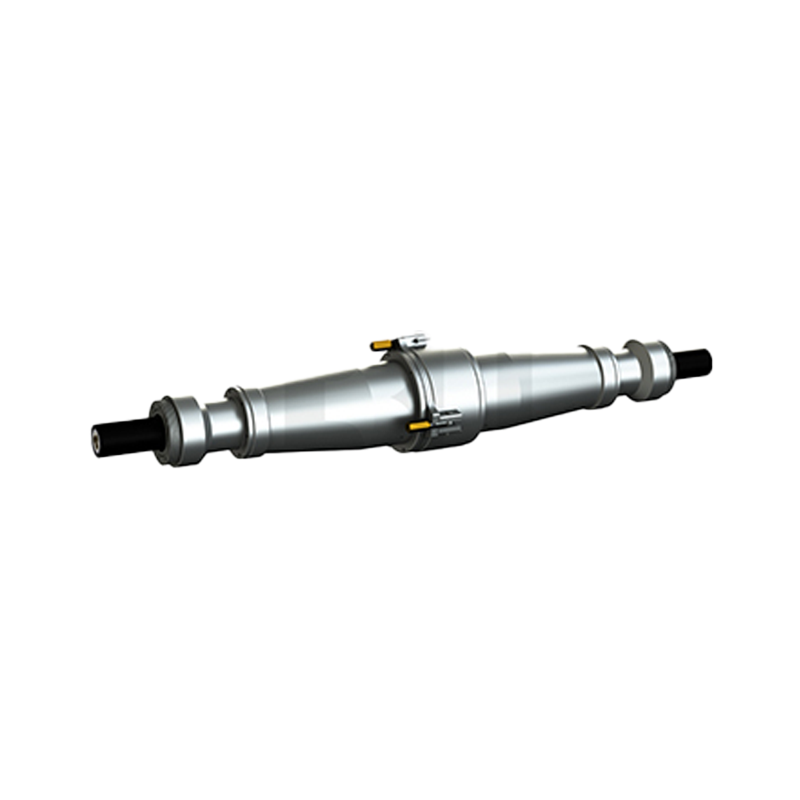

10-20 kV tunnel plug-in quick connector (aluminum alloy waterproof shell) is a modular connection component designed specifically for high-voltage cable tunnel environments
Product Introduction
Product Model: JCKL
Applicable cross-section: 50-150mm ²
Product follows standard: GB/T 12706
Operating requirements: System rated voltage of 8.7kV/15kV; 12kV/20kV
The long-term maximum operating voltage of the system Um: 17.5kV/24kV
Rated current: 250A-630A
Impact withstand voltage level (BIL): 95kV/125kV
System frequency: 50Hz
Line design service life: greater than 30 years
Parameters and performance
The conductor adopts a plug-in structure, which is easy to install;
Insulation adopts cold shrink silicone rubber insulation connection;
Adopting aluminum alloy shell, the product has strong impact resistance;
The product is waterproof, fireproof, corrosion-resistant, cold resistant, high temperature resistant, and aging resistant.
Scope of Application
Widely applicable to harsh outdoor environments and highly polluted flammable and explosive places; Used for connecting cables for shield tunneling machines in subway tunnels, irrigation tunnels, air defense tunnels, and other tunnel constructions.
