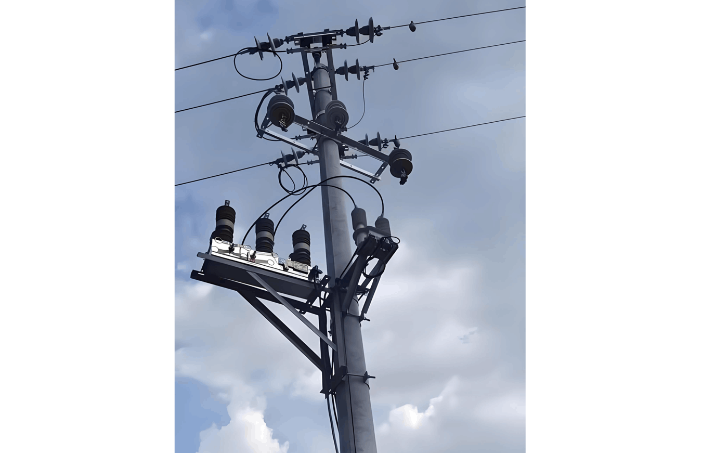

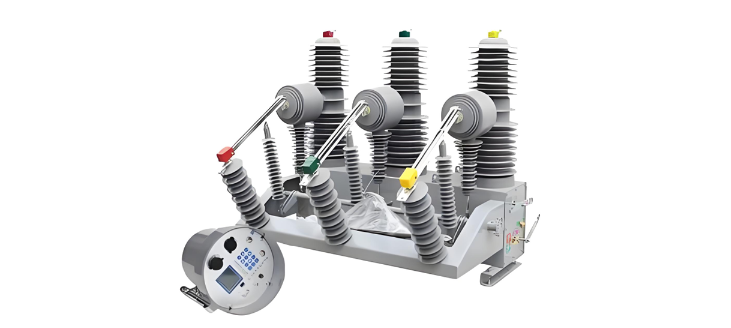

Applications of Low-Voltage Pole-Mounted Circuit Breakers

Low-voltage pole-mounted circuit breakers (typically referring to low-voltage circuit breakers installed on utility poles or support columns) play an important role in protection and control within power systems. Their main applications include:

• Distribution Line Protection: Serving as the main or branch circuit protection switch for low-voltage distribution lines. When overloads, short circuits, or ground faults occur on the line, the circuit breaker automatically trips to interrupt the fault current, protecting the safety of the line and equipment and preventing the expansion of accidents.
• Fault Isolation and Selectivity: In complex distribution networks, selective protection can be achieved by properly configuring low-voltage circuit breakers with different characteristics. When a fault occurs on a branch circuit, only the breaker on that branch operates, while the upstream main-line breaker remains closed, thus minimizing the outage area and improving power supply reliability.
• Power Control and Line Sectioning: Used to control the switching of circuits, facilitating line maintenance, repair, and operational scheduling. These breakers can serve as sectionalizing switches, dividing long lines into multiple segments for easier management and fault location.

• Overload and Short-Circuit Protection: The core function is to protect the line and connected equipment from damage due to overcurrent. Overload protection is typically achieved using thermal-magnetic or electronic trip units with inverse-time characteristics, while short-circuit protection is provided by electromagnetic trip units that act instantaneously.
• Outdoor Environment Applications: Due to their outdoor pole-mounted installation, these circuit breakers usually have a high degree of protection (e.g., IP65), making them resistant to rain, dust, sunlight, and temperature variations, thus adapting well to harsh outdoor operating conditions.
• Motor and Equipment Protection: When installed on poles near electrical equipment (such as pumps or fans), the circuit breaker can provide direct power control and protection against short circuits and overloads for such equipment.
• Smart Grid Applications: With the development of smart grids, some modern low-voltage pole-mounted circuit breakers are equipped with communication modules (such as GPRS, LoRa, or power line carrier communication), enabling remote monitoring, data acquisition, remote switching control, and fault alarms, thus becoming integral components of intelligent distribution networks.

In summary, low-voltage pole-mounted circuit breakers are primarily used at outdoor branch points or near equipment in low-voltage distribution networks, providing functions such as line protection, fault isolation, operational control, and intelligent management.
