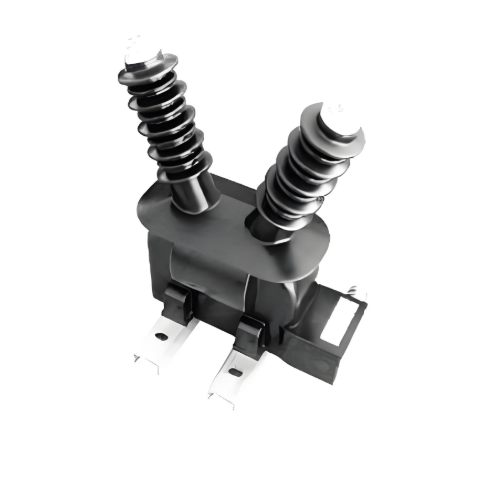

High - Efficiency, Simplified, Smart: Outdoor VT/PT Solutions for Installation, Commissioning & O&M
Wone Store
2yrs +
staff 1000+m² US$300,000,000+ China
In power grid construction and refurbishment projects, the installation efficiency, commissioning accuracy, and O&M convenience of outdoor Voltage Transformers (VTs/PTs) directly impact project timelines, operational costs, and system reliability. This solution is specifically designed to optimize the full lifecycle management of outdoor VTs/PTs. Through innovative technologies and lean design, it significantly enhances the efficiency and safety of construction, acceptance testing, and O&M phases.
1. High-Efficiency Installation: Empowered by Modular & Standardized Design
- Modular Prefabrication, Reduced On-site Risk:
- Core Advantage of Gas-Insulated PTs: Factory pre-assembled and pre-filled gas-insulated PTs (e.g., GIS-style) enable "ready-to-install" deployment. Drastically reduces (>50%) complex on-site steps like gas filling and component assembly, eliminating risks associated with gas moisture treatment and sealing.
- Lightweight Design, Simplified Hoisting:
- Utilizing high-strength composite insulators instead of traditional porcelain insulators reduces equipment weight by >30%. Optimized center of gravity ensures stable and efficient lifting.
- Standardized lifting points and balance indicators. Provides standardized prefabricated foundation templates with optimized anti-settlement and drainage solutions, guaranteeing right-first-time foundations eliminating rework.
- Foolproof Design, Precise Wiring:
- Laser-etched permanent markings on critical connections. Terminal blocks clearly arranged per IEC/GB standards (e.g., dual numbering). Test terminals equipped with transparent protective covers to prevent accidental contact, enabling fast and accurate wiring.
2. Smart Commissioning: Accelerated Energization via Pre-testing & Standardization
- Comprehensive Factory Testing, Zero-Defect Delivery:
- All-parameter high-standard tests (polarity, ratio, winding resistance, dielectric loss & capacitance, power frequency withstand voltage, partial discharge, etc.) performed before dispatch. Complete data and authoritative test reports (including electronic copies) provided, offering reliable benchmarks for field acceptance.
- Efficient On-Site Verification:
- Dedicated test adapters and standardized commissioning procedures enable swift verification of key parameters like ratio and polarity, reducing acceptance time by >40%.
3. Simplified O&M: Low-Maintenance Design & Smart Monitoring System
- "Low-Maintenance" Engineering Design:
- Long-life reliable sealing technology (e.g., metal-welded seals, high-elasticity gaskets) combined with coreless structure design significantly reduces routine maintenance needs (recommended maintenance interval >10 years), lowering O&M costs by >35%.
- Facilitated O&M Access: Features tool-free quick-access oil/gas sampling valves (leak-proof design), and ground-level visible oil level/density gauges (temperature-compensated), eliminating the need for climbing or specialized equipment.
- Smart Condition Awareness & Efficient Diagnostics:
- Supports integration of high-precision online monitoring units (reserved interfaces for PD monitoring, DGA, dielectric loss, etc.) enabling real-time equipment condition alerts.
- Provides detailed step-by-step guidance manuals with graphics (including AR-guided tutorials): Covering installation, commissioning, preventive testing, condition assessment, and typical defect handling. Reduces resolution time by >30% and enhances field operation accuracy.
4. Core Value: The Efficiency vs. Reliability Win-Win
- Efficient Construction: Modular prefabrication and lightweight design compress on-site construction time by >40%, reducing safety risks.
- Accurate Commissioning: Comprehensive factory testing ensures zero-defect energization, boosting commissioning efficiency by >40%.
- Economical O&M: "Low-maintenance" design and smart monitoring reduce periodic maintenance frequency by >50%, lowering lifecycle costs by >35%.
- System Reliability: Standardized installation and precise maintenance ensure long-term stable operation, minimizing unplanned outages.
07/19/2025
Recommended

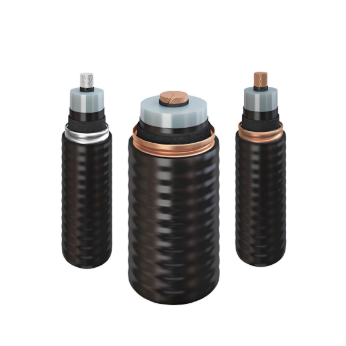

Integrated High-Voltage Cable Solutions for Southeast Asia
I.Background and ChallengesSoutheast Asia is experiencing rapid economic growth, with an average annual increase in electricity demand exceeding 5%. However, the region’s unique environmental conditions pose significant challenges to power transmission:High Temperature and Humidity: Average annual temperatures range from 28°C to 35°C, with humidity often exceeding 80%, accelerating cable insulation aging.Salt Mist Corrosion: Coastal areas exhibit high salt content, leading to me

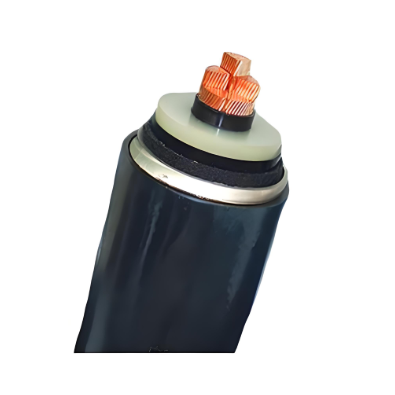

Single-Core Shielded Thin-Wall High-Voltage Cable Solution
AbstractThis solution addresses common industry challenges such as physical damage, chemical corrosion, and electromagnetic interference faced by high-voltage cables in complex environments. The core of the solution is a novel single-core shielded thin-wall high-voltage cable. Through innovative double-layer XLPE protection, a composite shielding structure, and an optional optimized outer sheath design, it delivers exceptional mechanical protection, insulation performance, shielding effectiven

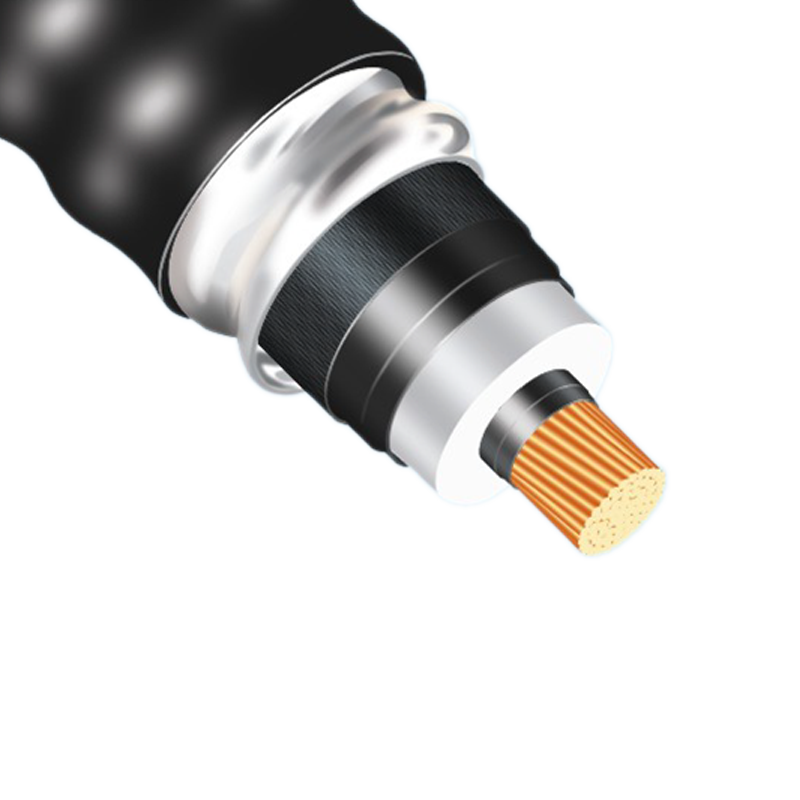

Adaptability Solution for High-Voltage Cables in Extreme Environments
Application ScenariosThis solution is primarily designed for high-voltage power transmission needs in extreme climate regions such as deserts and polar areas. It is suitable for:Photovoltaic power stations in desert regionsPower supply systems for polar research stationsTransmission lines in plateau and desert regionsOther harsh environments with significant temperature variations and strong sandstormsII. Core Technological InnovationsApplication of Specialized MaterialsSilicone rubber ins

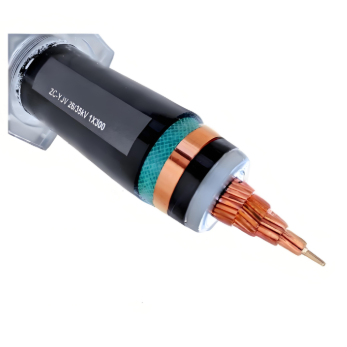

Comprehensive High-Performance Fire-Resistant and Flame-Retardant High-Voltage Cable Solution
