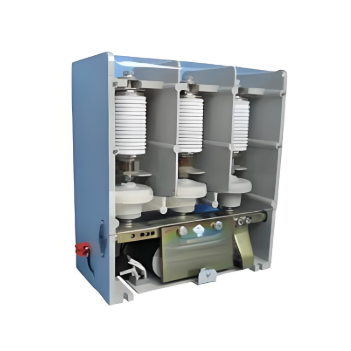

ABB Vacuum Contactor KC2 Power Supply System Technical Transformation Plan

Issue Overview
The 10kV air compressor starting system of a company utilizes the ABB vacuum contactor KC2 as the control component for the operating circuit. The dedicated wide-voltage power supply module paired with this contactor presents the following issues:

1. Frequent failures: The power supply module fails to properly transition the voltage from 300V to 12V, resulting in fuse blowouts.

2. Poor heat dissipation: Enclosed installation of the module leads to insufficient heat dissipation, accelerating component aging.

3. High costs: The original module costs approximately 5,000 RMB per unit, leading to excessive maintenance expenses.

II. WONE Technical Transformation Plan
Core Approach: Adopt a "functional decomposition" strategy to separate the contactor’s pull-in and holding functions, each powered by different sources.

System Composition:

1. Original power supply module: Handles only the instantaneous pull-in function, outputting 300V DC to drive the contactor pull-in.

2. New 12V power supply module: Manages the long-term holding function, providing the maintaining current to the contactor coil after pull-in.

3. Control relay: Enables automatic control of power switching after pull-in completion.

4. Isolation diode: Prevents interference between different power sources.

Working Principle:

• During startup, the original module outputs 300V DC to instantly pull in the contactor.

• After the contactor pulls in, the auxiliary contact activates the control relay.

• Once the control relay operates, it cuts off the original module’s power supply circuit and simultaneously connects the 12V holding power supply.

• The 12V power supply provides maintaining current to the contactor coil, ensuring normal operation.

III. Implementation Plan
Equipment List:

Installation Requirements:

1. The 12V power supply module should be installed in a well-ventilated location outside the cabinet.

2. All wiring must comply with electrical installation standards.

3. Newly added components should be fixed with brackets to ensure secure installation.

IV. Advantages of the Plan

1. Cost-effectiveness: The total transformation cost is approximately 160 RMB, significantly lower than the 5,000 RMB original module.

2. Reliability:

• The original module’s operation changes from continuous to instantaneous, significantly extending its lifespan.

• The 12V power supply module is a standard industrial component, highly reliable and easy to replace.

3. Maintainability: The newly added module is installed in a location convenient for maintenance, allowing simple and quick replacements.

4. Safety: Electrical isolation ensures safe system operation.

5. Proven effectiveness: Similar transformations have been operating stably for two years, with significant results.

V. Implementation Results
This plan thoroughly resolves the original design flaws through technical innovation, achieving:

• Equipment failure rate reduced by over 90%.

• Annual maintenance costs reduced by more than 80%.

• Equipment availability increased to 99.5%.

• Maintenance response time shortened from several days to a few hours.
