TYD Capacitor voltage transformer

Product introduction:
 Capacitor voltage transformer is mainly used in power frequency power system to meet the IEC/IEEE standard, outdoor rated voltage 40.5-1100kV, frequency 50/60Hz neutral point effective grounding system/neutral point non effective grounding system to provide voltage signals for electrical measuring instruments and protection and con trol devices, and also as coupling capacitor for power carrier communication system.
Product features:
●It has excellent performance in suppressing ferromagnetic resonance. With a speed saturation damping device, it has fast transient response and can reliably damp ferromagnetic resonance. It can meet the test requirements of 320 times of ferromagnetic resonance under 0-1.5Un, and can effectively suppress ferromagnetic resonance within 10 cycles. The peak value of the secondary voltage of the product drops to 5% of the peak value of the secondary voltage before the short circuit within 0.02s.
●Capacitor voltage transformer has medium voltage switch function, which is convenient for on-site operation and maintenance.
●Porcelain bushing and flange are used for integral casting to reduce bolt connection, improve sealing perfor mance and reduce the risk of oil leakage.
●It is easy to install and maintain. Phoenix Contact terminals are used to facilitate user wiring.
●The oil tank is of cast aluminum structure, which is free of rust after long-term use.

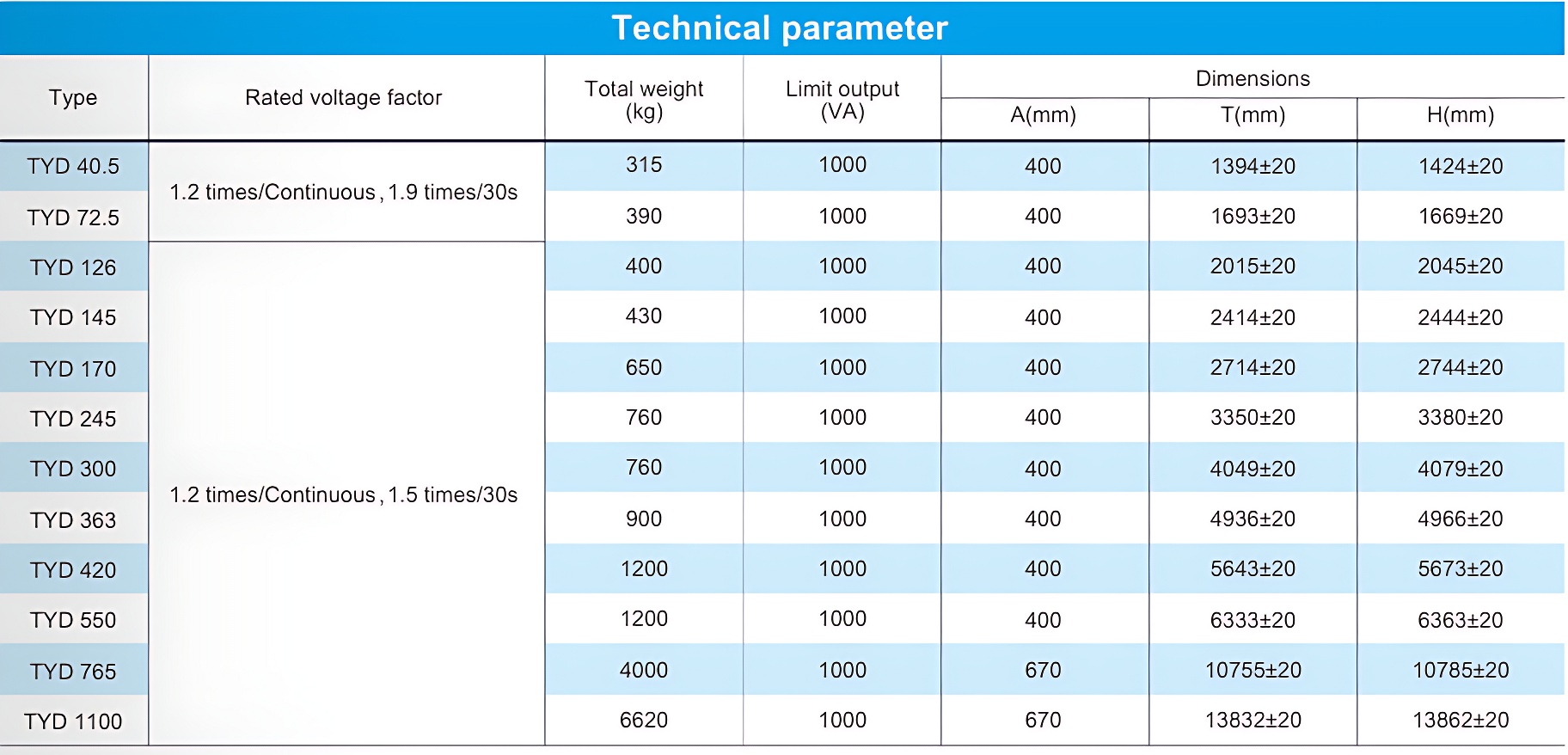

Remark: Approximate dimensions and weights for special requirements, please consult us.
