JDCF Oil immersed inductive voltage transformer
Key attributes
| Brand | Wone |
| Model NO. | JDCF Oil immersed inductive voltage transformer |
| Rated voltage | 40.5kV |
| Series | JDCF |
Product descriptions from the supplier
Product introduction:

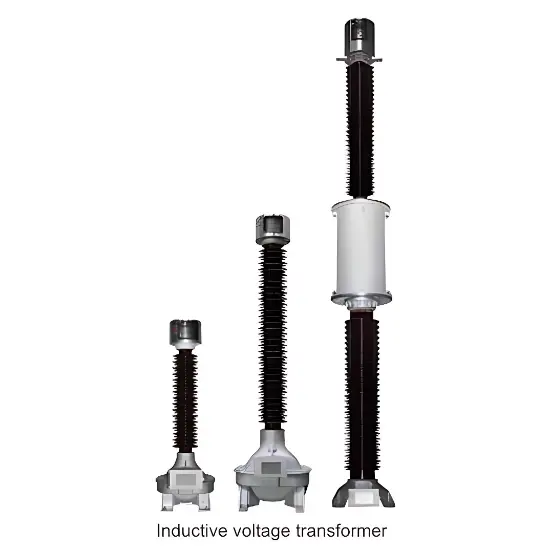

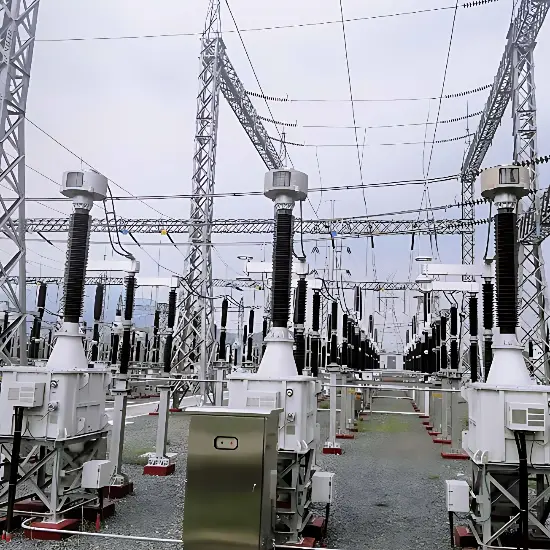

Inductive voltage transformer JDCF series oil immersed electromagnetic voltage transformer is a voltage transformer with transformer oil and insulating paper as the insulating medium. It protects measuring instruments and relays in the power system, and makes the secondary side equipment miniaturized and standardized. It is an indispensable power equipment in the substation.
Product features:
●It has the characteristics of fast transient response.
●Meet the requirements of IEC 61869-3, CFE NRF-026, IEEE57.13 and other technical standards.
●For single-stage electromagnetic voltage transformer, the upper part is the expander part, the middle part is the porcelain bushing part, the bottom part is the oil tank, and the internal part is the body part. The transformer body contains winding and capacitor voltage equalizing screen, which are bound together.
●The product has small size, light weight, large load and stable dielectric loss.

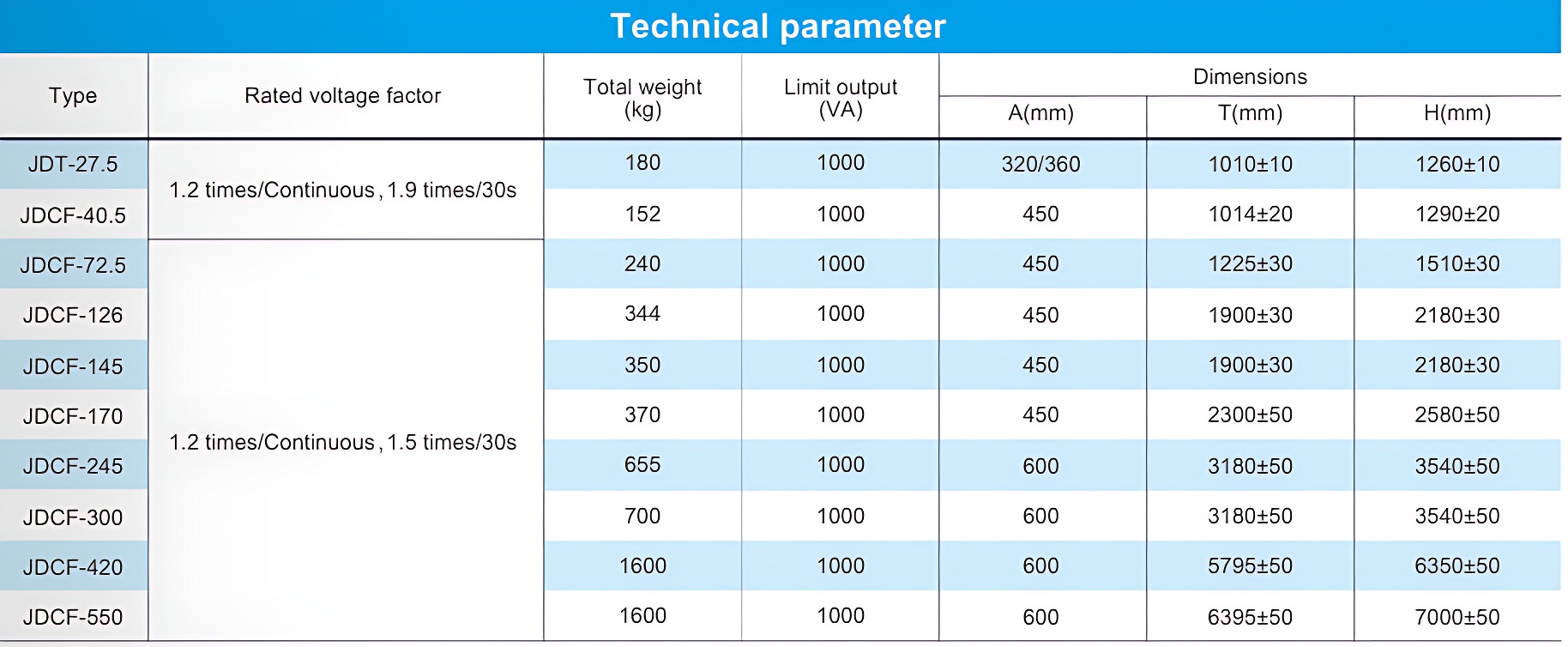

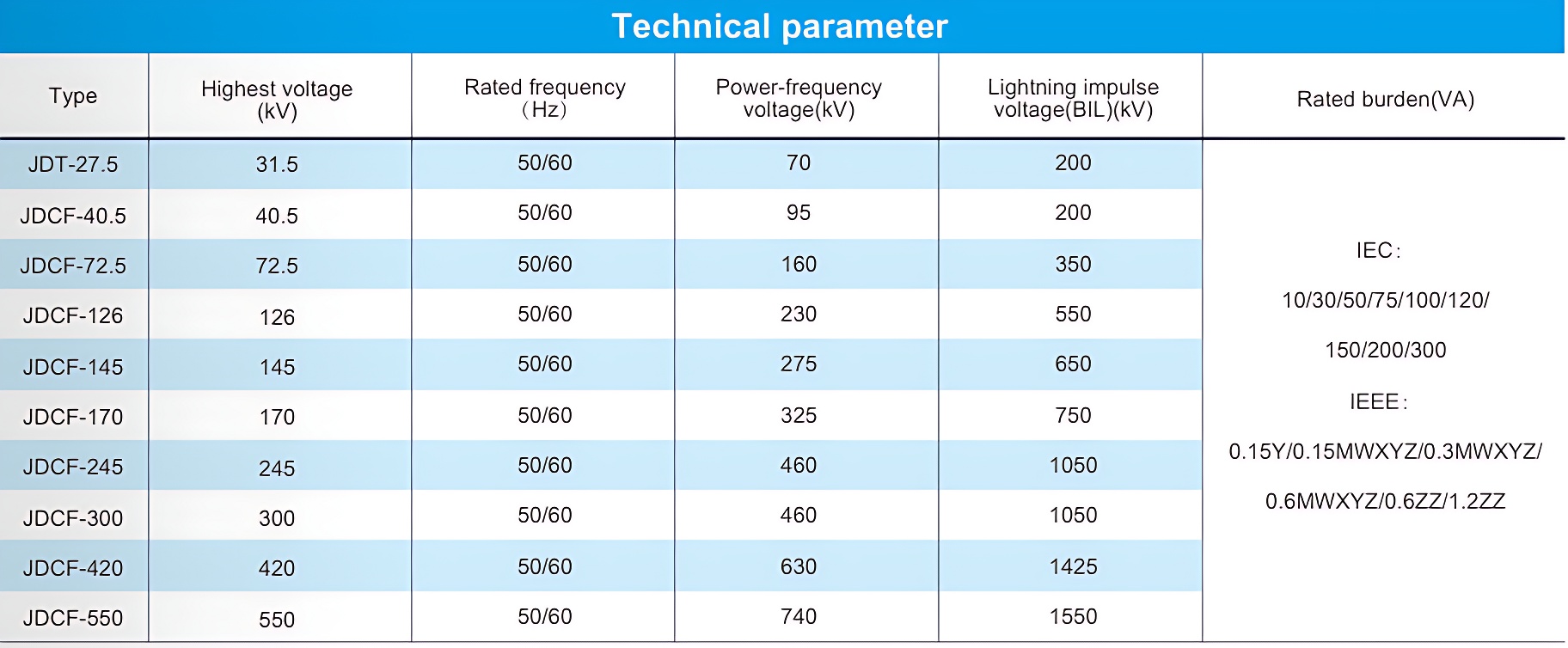

Remark: Approximate dimensions and weights for special requirements, please consult us.
