TG Combi Series Gas-insulated combined current and voltage transformer

discuss personally

Model

TG Combi-123/145

Basic info Product Detail Supplier

Basic info

Brand	Rockwell
Model NO.	TG Combi Series Gas-insulated combined current and voltage transformer
Rated voltage	420kV
Series	TG Combi Series

Product Detail

Overview

TG Combi is built for revenue metering and protection in high voltage networks. The integration of two functionalities (VT and CT) in one single equipment provides benefits in terms of cost of the equipment, footprint usage, time for erection /commissioning, cables for interconnection, foundations and structures.

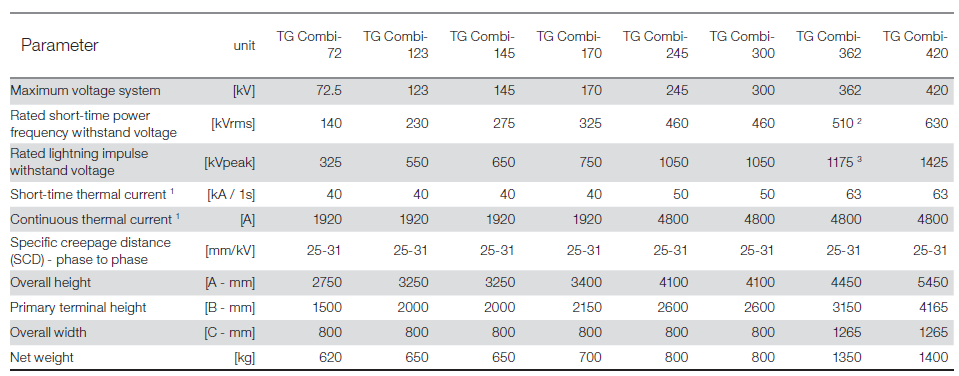

Technology parameters

Know your supplier

Rockwell

Wenzhou Rockwell Transformer Co., Ltd. It is a high - tech enterprise integrating R & D, production, sales, and service. It focuses on the manufacturing of power transformers and supporting equipment, and is committed to providing efficient, reliable, and energy - saving power transmission and distribution solutions for global customers. We can offer: •Distribution transformers and substations •Outdoor switchgears and breakers(recloser) •Switchgears and it’s components (GIS, RMU, VCB, SF6 CB) Market and Service: We always take customers as the orientation and provide customized services according to their requirements. Our products are exported to the Middle East, Africa, Northern Europe, South America, and many other countries and regions. Drive the future of electricity with technological innovation and become a leading global supplier of intelligent power equipment.

Main Categories

High Voltage Electrical Apparatus

Business Type

Design/Manufacture/Sales

Highest Annual Export (USD)

$100000000

Professional Experience

12 years

Workplace

60000m²

占位

占位
