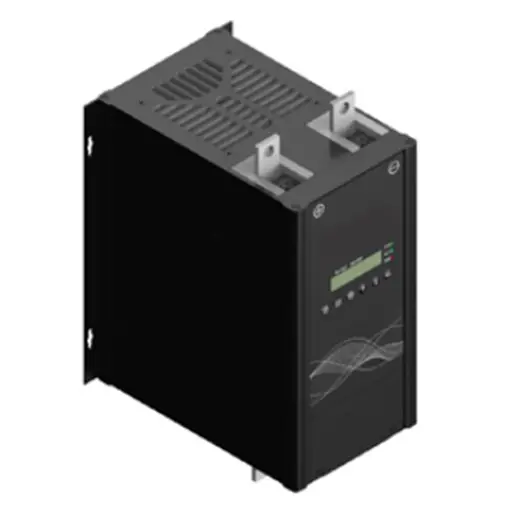

Solid State Circuit Breaker 800VDC Ultra Fast Protection

Name: Solid State Circuit Breaker 800VDC Ultra Fast Protection
Brand: Zhejiang Rockwell Energy Technology Co., Ltd.
SKU: 3242
Availability: InStock

Zhejiang Rockwell Energy Technology Co., Ltd.

13yrs 100+ staff 30000+m² US$100000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Rw Energy
Series	RW-SCB
Input Voltage	300VDC - 800VDC ±10%
Efficiency	99.7%

Description

Product Description

In modern DC power distribution, millisecond-level protection is no longer sufficient. Our 800VDC Solid State Circuit Breaker (SSCB) sets a new industry benchmark, offering microsecond-level fault interruption to safeguard your most sensitive and expensive power electronics. With an industry-leading 99.7% efficiency, it delivers maximum protection with minimum energy loss, making it the ideal choice for next-generation energy systems.

Model Electrical

Model No.	Rated Output Current [A]	Overload Current [A]	Output Power (DC750V) kW	Dimensions H×W×D (mm)
DC-SCB-750-0070	70	84	50	187×141×162
DC-SCB-750-0100	100	120	75	187×141×162
DC-SCB-750-0140	140	168	105	226×162×225
DC-SCB-750-0200	200	240	150	226×162×225
DC-SCB-750-0350	350	420	260	292×177×240
DC-SCB-750-0400	400	480	300	292×177×240

Basic Parameters

Category	Parameters	Specifications
Power Characteristics	Input Voltage (Uin)	300VDC - 800VDC ±10%
	Output Voltage (Uout)	Uin
	Efficiency	99.7%
Protection Features	Short-circuit Instantaneous Protection	250% - 400% Rated Current
	Instantaneous Protection Time	< 5μs
	Short-delay Short-circuit Protection	110% Rated Current (110% - 230% Adjustable)
	Short-delay Protection Time	< 50μs
	Long-delay Overload Protection	110% Rated Current (105% - 120% Adjustable)
	Long-delay Protection Time	10s (1 - 60s Adjustable)
	Under-voltage Protection	280VDC
	Over-voltage Protection	900VDC ± 5%
	Over-temperature Protection	85°C Alarm / 90°C Trip
	Fault Record	32 Groups
Control & Connectivity	Digital Inputs (DI)	5* Programmable DI, PNP (For 70A/100A: 3* Programmable DI, PNP)
	Relay Outputs	3* Programmable (For 70A/100A: 2* Programmable)
	Communication	Built-in RS485, Modbus RTU
	Control Mode	Communication, I/O Terminal, Local Panel
Environmental Conditions	IP Rating	IP20
	Humidity	5% - 95%, Non-condensing
	Altitude	< 1000m: No derating; > 1000m: Derating required (1.5% per 100m)
	Operating Temperature	-20°C to 40°C: No derating

Product Dimensions

Solid State Circuit Breaker 800VDC Ultra Fast Protection
