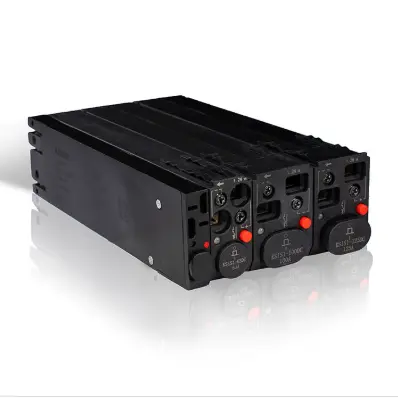

Low Voltage DC Solid State Circuit Breaker

Name: Low Voltage DC Solid State Circuit Breaker
Brand: Zhejiang Rockwell Energy Technology Co., Ltd.
SKU: 3250
Availability: InStock

Zhejiang Rockwell Energy Technology Co., Ltd.

13yrs 100+ staff 30000+m² US$100000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Rw Energy
Series	SSCB
Interrupting rating	25kA
Electricity metering accuracy	1%
Electrical durability	106 cycles

Description

Overview

This is a multi-functional intelligent circuit breaker. The product integrates power electronic semiconductor technology, low-voltage electrical equipment technology and digital intelligent communication technology to realize low-power operation, remote switching, dual protection, metering and other functions in small size. The product has mechanical breakpoint, which meets the requirements of electrical insulation and isolation.

Application Scope

Load side power distribution of 4G/5G telecom system
Power management of low voltage DC application
Special field application

Main Tech. Specs

Unless otherwise stated, it’s generally regarded as the resistance load in 25℃ RT environment.

Parameter	Min.	Typical	Max.	Unit
Operating voltage range	-40		-60	Vdc
Interrupting rating		25		kA
Voltage metering accuracy			0.5	%FS
Current metering accuracy			1	%FS
Electricity metering accuracy			2	%
Switch on acting time		15		μs
Switch off acting time		50		μs
Electrical durability		10⁶		cycles
Short circuit interrupting times		100		cycles

The main function

Protection function	Protection features	Description
Under voltage	Self-recovery	At default settings, the breaker will disconnect the main circuit when its DC voltage is below - 40V for > 10s. When it returns to above - 42V, the breaker will automatically return to previous status.
Over voltage	Limited self-recovery	At default settings, when its voltage is above -63V for >10s, the breaker will disconnect the main voltage. When it returns to below - 60V, the breaker will automatically return to previous status. When its voltage is above -66V, the breaker will totally disconnect the main voltage and could not self-recover.
Overload	limited self-recovery	Overcurrent alarm and protection functions can be customized by customers; Under the default setting: Overcurrent alarm threshold 66.15A Primary overcurrent protection threshold 69.3A Primary overcurrent protection delay 120s The secondary overcurrent protection function is related to the rated current: More than 130%In for 0.2 seconds, the electronic switch will disconnect.
Short circuit	limited self-recovery	Try self-recovery every few milliseconds and stop self-recovery if failed for 3 times within 30s.
Over temperature	Self-recovery	Triggered by overheat of inside or terminal, electronic switch off.

Installation Dimensions（mm）

Low Voltage DC Solid State Circuit Breaker
