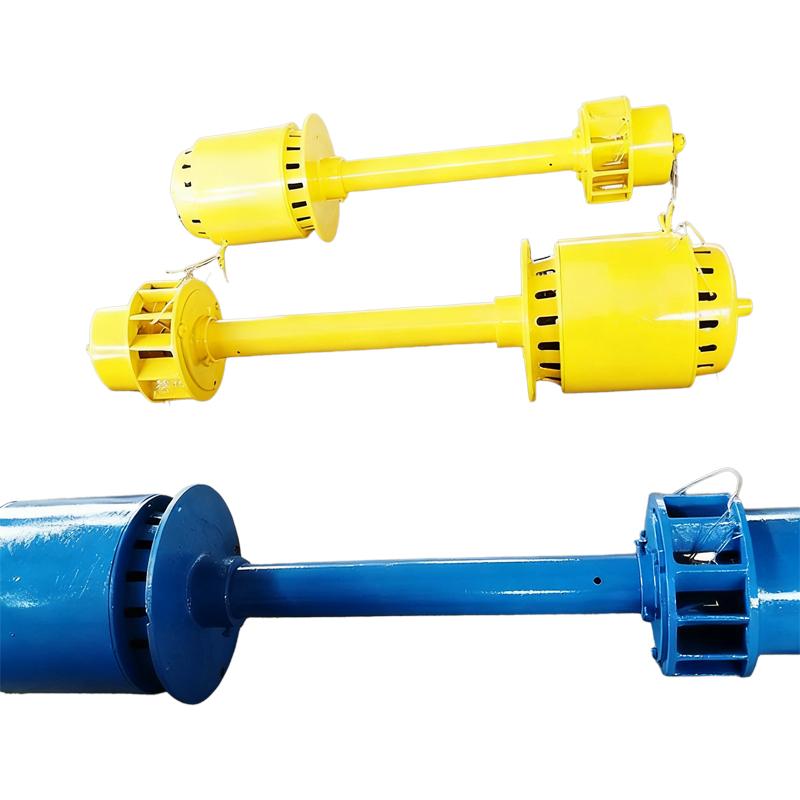

Small Kaplan Turbine For Micro Hydropower
Key attributes
| Brand | Wone Store |
| Model NO. | Small Kaplan Turbine For Micro Hydropower |
| Rated voltage | 230/400V |
| Rated frequency | 50/60Hz |
| Rated Output Rating | 5kW |
| Series | ZD760-LM |
Product descriptions from the supplier

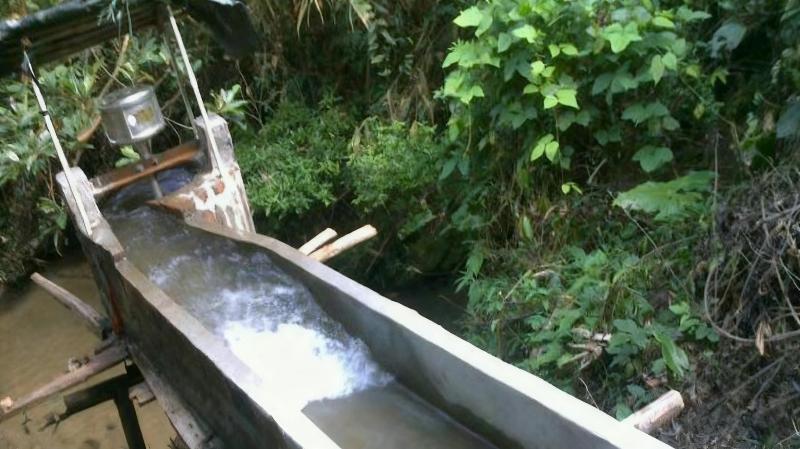

Kaplan turbines and axial-flow turbines are widely used in small water levels, small rivers, small dams and other low water heads. The small axial flow turbine generator is composed of a generator and an impeller coaxially. Working principle and installation method: choose a suitable installation place (a river course, the stone place of the downstream river course), build the water course with concrete and stone; use wood as a sluice; use wire mesh as a filter; use concrete and stone to make a spiral shell ; Construct a flared draft tube under the spiral shell. The miniature axial flow generator is suitable for the head of 1.5m-5.5m.
Equipment Features
1. Suitable for the development of low water head larger flow of water resources;
2. Appliceable to large and small head change load changes of power plant;
3. For the low head,head and power changed greatly power station,can stably under various working conditions;
4. This machine is a vertical shaft device,has the advantages of simple structure,convenient repair,equipment,low price,easy to realize the direct drive etc.
Specifications
| Efficiency | 80(%) |
| Output | 1-5(kW) |
| Voltage | 220 or 380(V) |
| Current | 5/10/16/25(A) |
| Frequency | 50/60(Hz) |
| Rotary Speed | 1000-1500(RPM) |
| Phase | Three(Phase) |
| Altitude | ≤3000(meters) |
| Protection Grade | IP44 |
| Temperature | －25～＋50℃ |
| Relative Humidity | ≤90% |
| Safety Protection | Short circuit Protection |
| Insulation Protection | |
| Over Load Protection | |
| Grounding Fault Protection | |

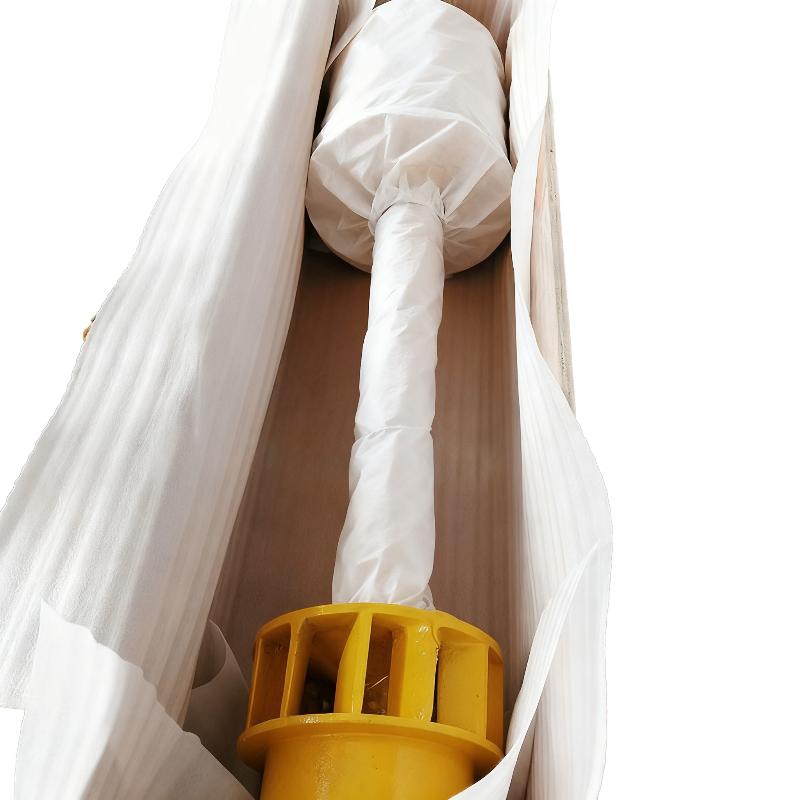

| Packing Material | Woodenbox |
