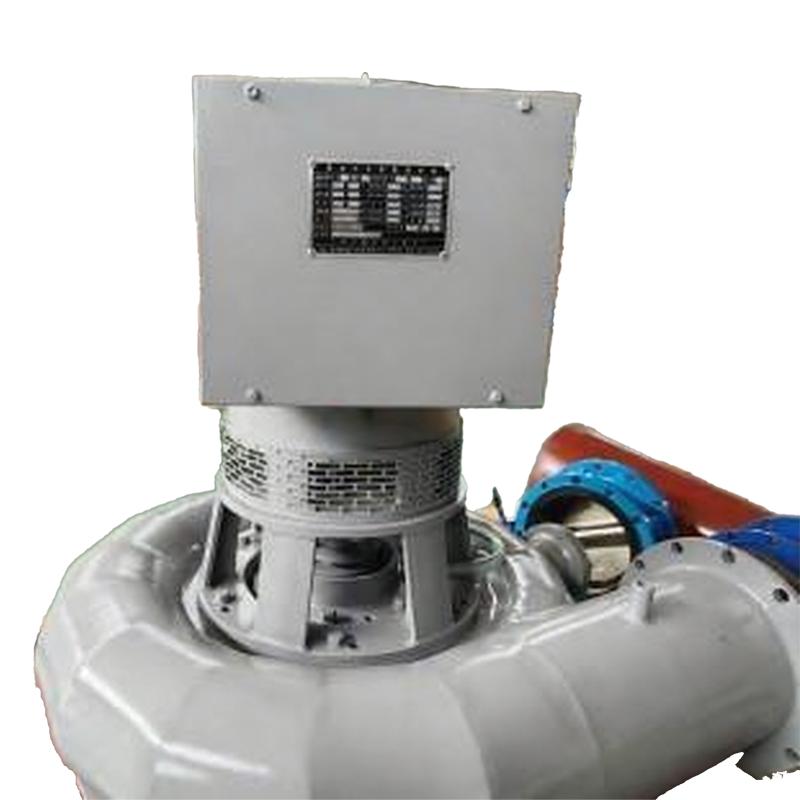

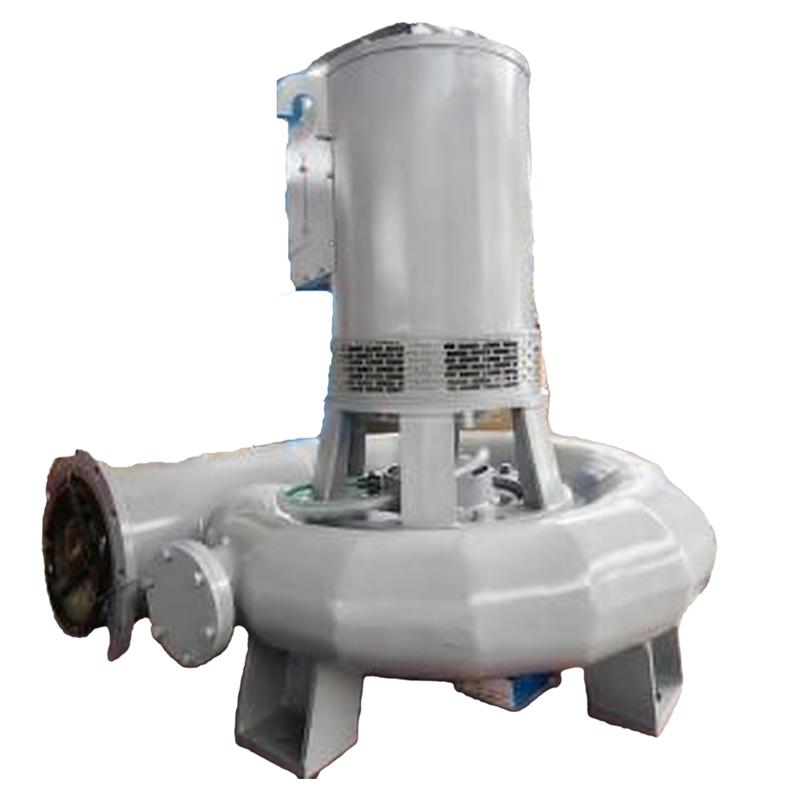

Mini Pico Francis Water Turbine Generator
Key attributes
| Brand | Wone Store |
| Model NO. | Mini Pico Francis Water Turbine Generator |
| Rated voltage | 230/400V |
| Rated frequency | 50/60Hz |
| Rated Output Rating | 8kW |
| Series | SFW8 |
Product descriptions from the supplier
Generators
We selects only high quality generators to include with our systems, ensuring efficient operation, long life, and low maintenance. In most cases, the rotating speed of the generator is 1500 rpm or slower to maximize longevity and minimize efficiency losses in the drive system.
Governors
Governors can range from relatively simple devices to highly complex systems for larger, grid-connected hydro projects. Regardless of complexity, however, the basic function remains the same: maintain a constant RPM at the generator, and therefore a constant voltage and frequency. We will be happy to discuss your site requirements and recommend the appropriate governor type.
Needle Nozzle Control
If flow changes frequently, the optional needle nozzle can simplify adjustments and eliminate the need to shut down the turbine. It permits infinitely variable flow adjustment, from zero to maximum design flow, while the turbine is running. Forster needle nozzles have stainless steel needles and beaks for extremely long life.
Specifications
| Rated Head | 10-20(meters) |
| Rated Flow | 70-100(l/s) |
| Efficiency | 85(%) |
| Pipe Diameter | 200(mm) |
| Output | 8-10(kW) |
| Voltage | 220 or 380(V) |
| Current | 37.5(A) |
| Frequency | 50 or 60(Hz) |
| Rotary Speed | 1000-1500(RPM) |
| Phase | Three(Phase) |
| Altitude | ≤3000(meters) |
| Protection Grade | IP44 |
| Temperature | －25～＋50℃ |
| Relative Humidity | ≤90% |
| Safety Protection | Short circuit Protection |
| Insulation Protection | |
| Over Load Protection | |
| Grounding Fault Protection | |
| Packing Material | Woodenbox |
