Single-phase Keypad Smart Energy Meter GSD7666-G

Name: Single-phase Keypad Smart Energy Meter GSD7666-G
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 2108
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	Single-phase Keypad Smart Energy Meter GSD7666-G
Rated frequency	50/60Hz
Series	GSD

Description

GSD7666 - G is an advanced single - phase smart meter with modular design to measure energy accurately for commercial & residential customers, with a wide range of functions, smart measurement & flexible communication modules for remote reading & management. It could be used for either prepayment (compliant with STS standard) or postpayment applications(optional), with outstanding anti - tampering functions like detection of terminal cover opening to help utilities in revenue protection. It could communicate with CIU or DCU (Data Concentrator Unit for AMR/AMI system) by different communication modes like PLC/GPRS/3G/4G/RF based on requirements.

Main Features

Dual-relay
Multi-tariff
DLMS/COESM compliant
Infrared port/RS485
Tamper detection & recording
LCD display capable of reading without power
Active/reactive energy measurement
Double CT for phase & neutral line
Disconnecting on overload & no-credit condition
Prepayment/postpayment mode optional
Plug & play module of PLC/GPRS/3G/4G/RF
Display scroll button or STS keypad (optional)
Programmable warning of load limit & low credit

Electrical parameters

ELECTRICAL PARAMETERS
VOLTAGE
Nominal voltage Un	230V
Limited voltage	70% ~ 120%Un
FREQUENCY
Nominal frequency fn	50 ~ 60Hz
Tolerance	±5%
CURRENT
Basic current(Ib)	5A
Maximum current(Imax)	60A (80A/100A optional)
Starting current(Ist)	20mA
Active energy constant	1000imp/kWh
MEASUREMENT ACCURACY
Active energy as IEC62053 - 21	Class 1.0
Power consumption
Voltage circuit	<2W <8VA
Current circuit	<1VA
TEMPERATURE RANGE
Operation range	-25°C ~ +70°C
Storage range	-40°C ~ +85°C

INSULATION
Insulation level	4kV rms 1min
Impulse withstand voltage	8kV 1.2/50 μs
Insulation system classification	Protection class II
ELECTRO MAGNETIC COMPATIBILITY
ELECTROSTATIC DISCHARGES
Contact discharge	8kV
Air discharge	15kV
ELECTROMAGNETIC RF FIELDS
27MHz to 500MHz typical	10V/m
100kHz to 1GHz typical	30V/m
Fast transient burst test	4kV
MECHANICAL REQUIREMENTS
Meter case protection class	IP54
Insulation system classification	Protection class II
Maximum cable size	8 mm

Split-type Structure for Anti-tampering Protection

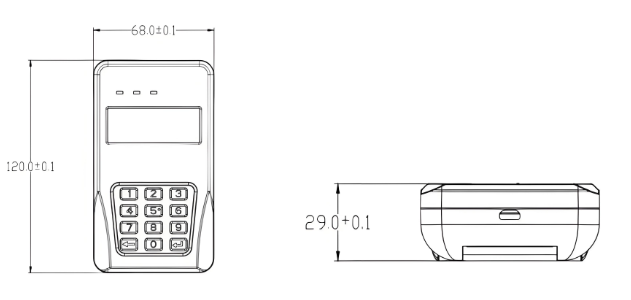

The CIU (Customer Interface Unit) is optional, linking to the MCU (Metering & Control Unit) with communication modes of M-bus, PLC or RF based on requirements.
The CIU is installed inside the customer's home for inputting prepayment token and searching for information, while the MCU is normally installed in a meter enclosure away from the customer's home.
