S Series switching power supply

Name: S Series switching power supply
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1452
Price: 47.00 USD
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	S Series switching power supply
Rated power	500W
Certification	CE
Insulation resistance	≥100MΩ(500VDC)
Wide voltage input range	AC100V-260V
rated output of CH1	48V,10A
Wide frequency range	47-63Hz
Series	S Series

Description

15 - 3000W Chassis - type Switching Power Supplies without PFC (with an independent housing for easy installation) have a relatively wide power coverage and a relatively sturdy structure, but lack power factor correction. Their application scenarios are concentrated in fields that are cost - sensitive, have lenient energy efficiency standards, and require a certain degree of protection.

●Industrial auxiliary equipment: Such as control power supplies for small conveyor belts, local lighting systems in workshops, power supply modules for non-precision testing instruments, etc. The casing can provide basic dust and moisture protection, and the scenarios where they are used have a high tolerance for power grid harmonics.

●Commercial low-cost equipment: Power supplies inside small commercial refrigerators, vending machines, and simple security monitoring host units, etc. These need to be fixedly installed and have requirements for physical protection of the power supply, but do not need to comply with strict energy efficiency regulations.

●Regionally characteristic electromechanical products: Small water pumps in some regions, household dehumidifiers (non-energy-saving models), etc. The casing design meets the equipment integration requirements, and there are no mandatory requirements for power factor locally.

●Temporary or outdoor equipment: Power supplies for mobile stage lighting, outdoor temporary power supply boxes (for short-term use), etc. The casing can improve durability, and short-term use has limited impact on the power grid.

It should be noted that their application is limited in regions with strict energy efficiency regulations (such as the EU and North America), and they are not suitable for sharing the power grid with precision electronic equipment to avoid abnormalities caused by harmonic interference.

Features:

Wattage:15W-3000W

Miniature size, non-PFC

Universal AC input

LED indicator for power on

Protections:Short Circuit/Over Load/Over Voltage/Over Temp

Built-in EMI filter with tiny ripple

100% full load burn-in test

2 Years Warranty

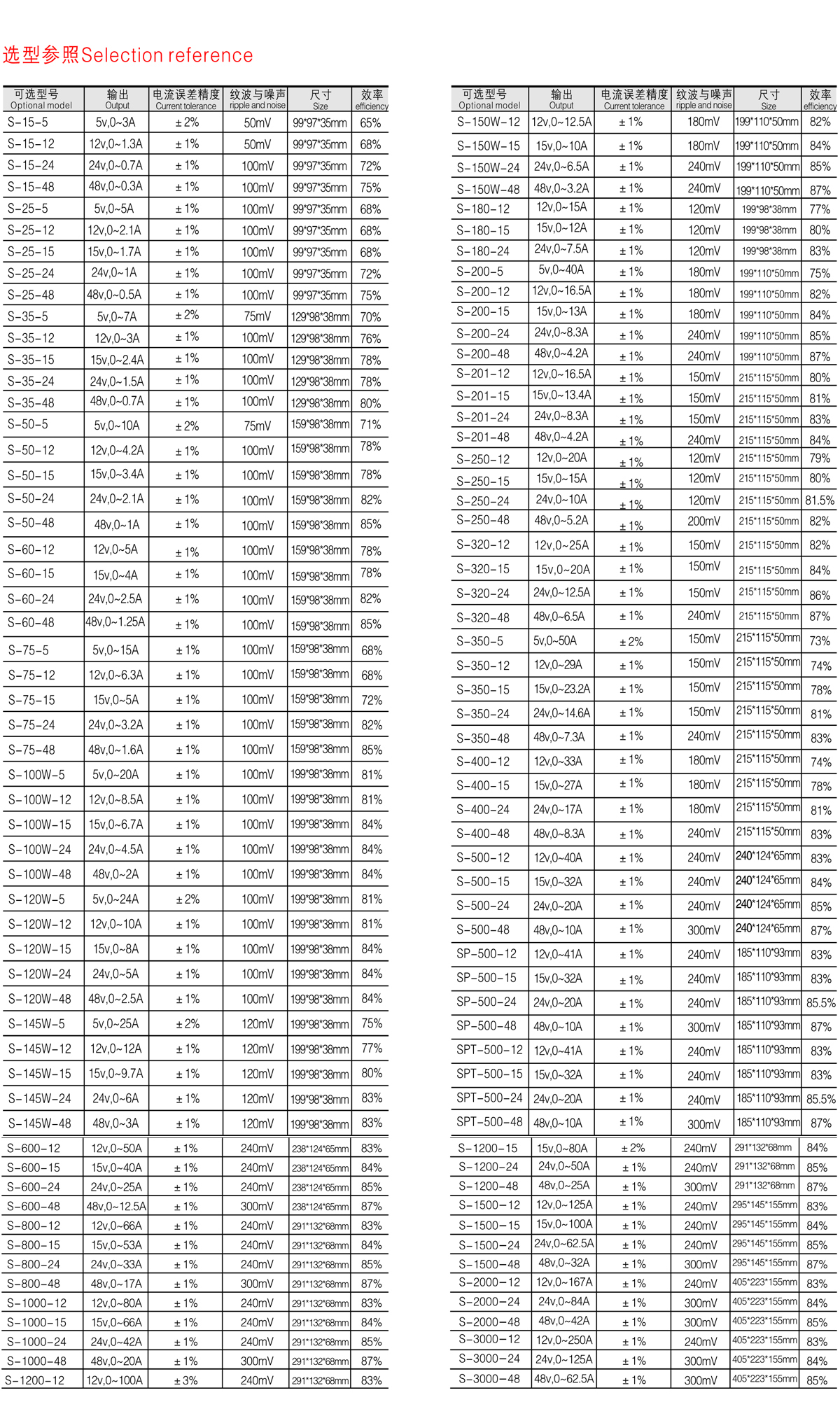

selection reference

If you need to know about or order switching power supplies of other specifications, Please check the model selection manual.

Or you are welcome to contact us.

Know your supplier

HK Electrical

Yueqing HK Electrical Trading Co., Ltd.
9yrs 100-500 1000+m² US$300000000+ China

Online store

On-time delivery rate

Response time

100.0%

≤4h

Company overview

Workplace: 1000m² Total staff: 100 Highest Annual Export(usD): 300000000

Services

Business Type: Sales

Main Categories: Power Wire and Cables/Medium and High Voltage Switchgear/Low Voltage Electrical Components/Renewable Energy and EV Charging/Electrical Testing and Metering/Power Generation and Backup Systems/Overhead Line Hardware/Instrument Transformers and Sensors/Transformer and Switchgear Parts/Construction Equipment and Tools/Electrical Manufacturing and Factory Automation/Cable Accessories/Lightning Protection and Electrical Insulation/Substations and E-Houses/Power Electronic Equipment/Electrical Panel and Controlgear/Grid Care and Automation/Power Quality Equipment

$47.00

Pricing calculator

Model

S-500-48

S-500-24

S-500-15

S-500-12

S-400-48

S-400-24

S-400-15

S-400-12

S-350-48

S-350-24

S-350-15

S-350-12

S-350-5

S-320-48

S-320-24

S-320-15

S-320-12

S-250-48

S-250-24

S-250-15

S-250-12

S-200-48

S-200-24

S-200-15

S-200-12

S-200-5

S-180-24

S-180-15

S-180-12

S-150-48

S-150-24

S-150-15

S-150-12

S-145-48

S-145-24

S-145-15

S-145-12

S-145-5

S-120-48

S-120-24

S-120-15

S-120-12

S-120-5

S-100-48

S-100-24

S-100-15

S-100-12

S-100-5

S-75-48

S-75-24

S-75-15

S-75-12

S-75-5

S-60-48

S-60-24

S-60-15

S-60-12

S-50-48

S-50-24

S-50-15

S-50-12

S-35-5

S-25-48

S-25-24

S-25-15

S-25-12

S-25-5

S-15-48

S-15-24

S-15-12

S-15-5
