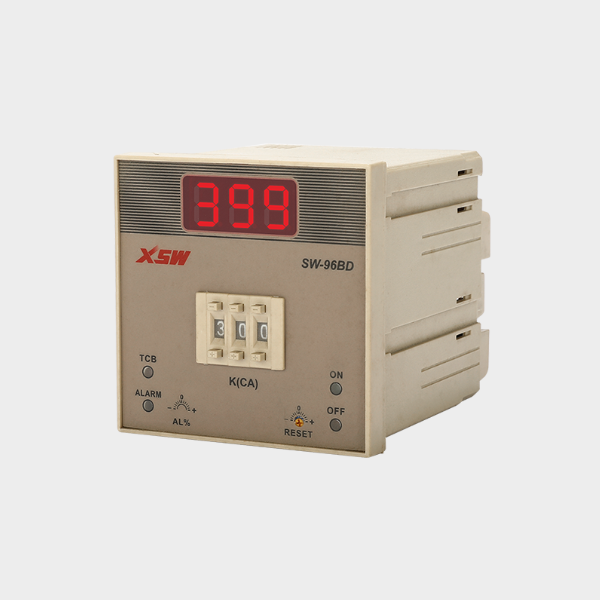

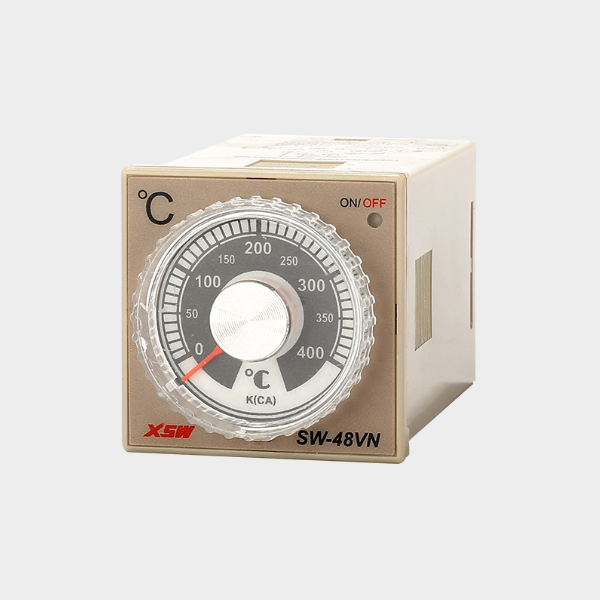

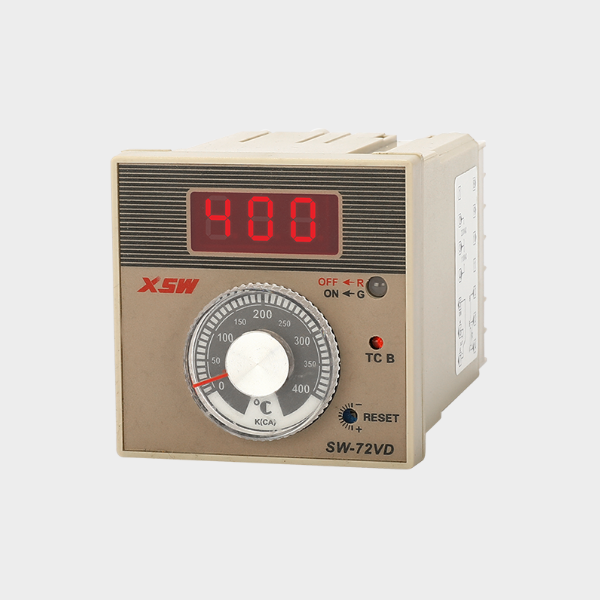

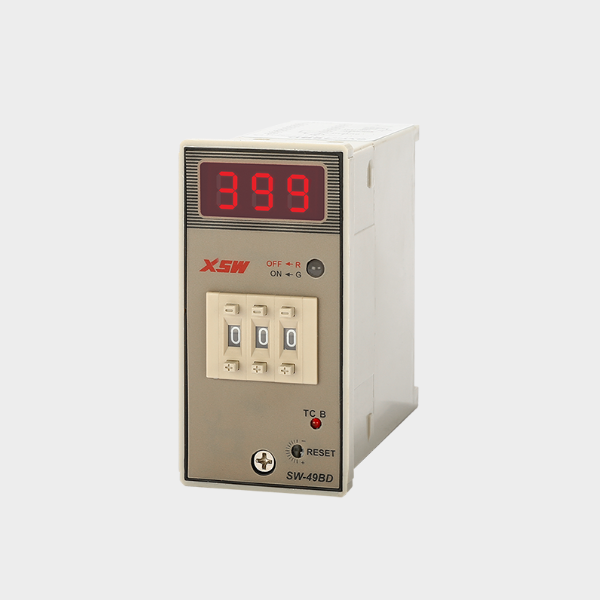

| Brand | HK Electrical |
| Model NO. | Digital Temperature Controller |
| size | 96*48mm |
| Series | SW |
SW series of export-temperature controller is the use of imported chips andelectronic components,lt was based on similar imported products updateddevelopment of a new generation of cost-effective instrument, with a beautifulappearance,small and exquisite, high precision control, stable performancecharacteristics, and it can completely replace the XMT series and TE series ofinstruments, widely used in machinery, chemicals, ceramics, light industry.metallurgy, petrochemical, heat treatment and other industries temperatureautomatic control system

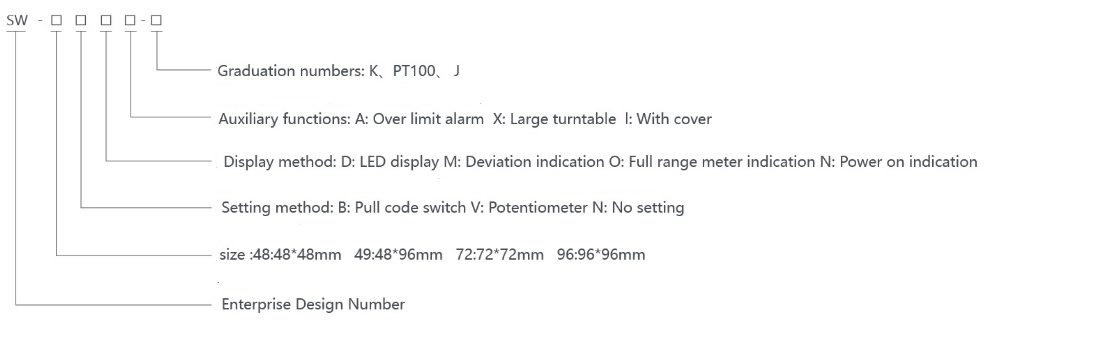

Model meaning:
Technical parameter：
| Parameter | Specification |
|---|---|
| Size (mm) | 48 * 48 * 90, 48 * 96 * 110, 72 * 72 * 110, 96 * 96 * 110 |
| Operating temperature range | 0 - 99.9°C, 0 - 199°C, 0 - 299°C, 0 - 399°C, 0 - 999°C |
| Input specifications | CA(K), PT00, J |
| Set accuracy | ±0.5% of full scale, ±1% of full scale |
| Indicating accuracy | ±0.5% full scale ± 1 digit |
| Control actions | ON/OFF, Proportional (PD) |
| Output method | Relay contact 5A 250VAC Contactless voltage DC12V (SSR use) |
| Rated voltage | AC110V/220V/380V±10%, 50/60Hz |
| Proportional period | Relay: 15 seconds No contact: 2 seconds |
| Power consumption | ~3W |
| Affiliated functions | Temperature sensing wire breakage detection |
| Ambient temperature range | -10°C - +55°C |
