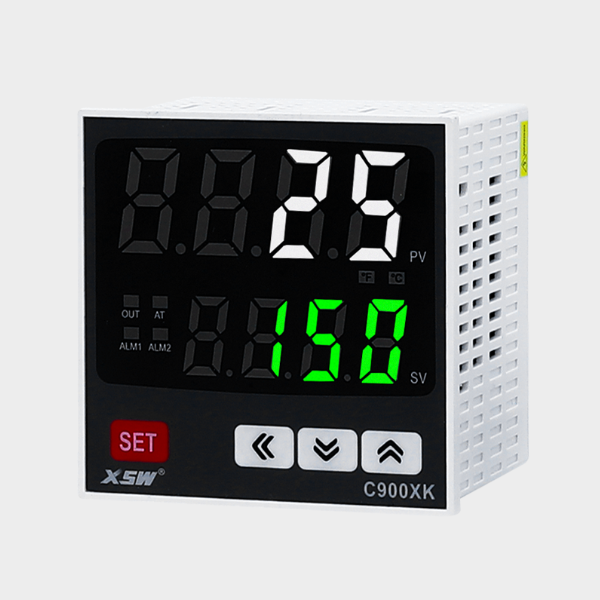

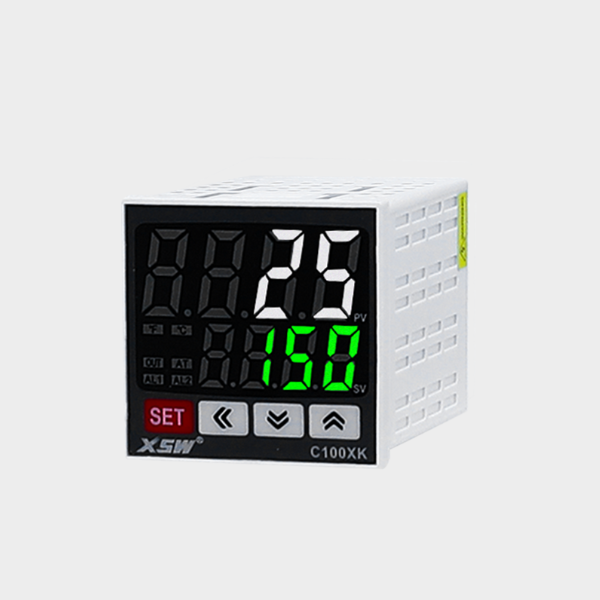

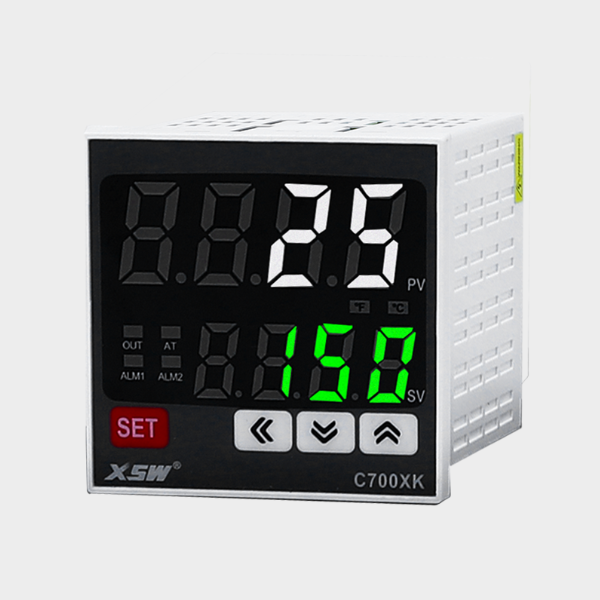

| Brand | HK Electrical |
| Model NO. | intelligent temperature controller |
| size | 96*96mm |
| Series | C |
C series of temperature controller was based on the most advanced modern controltheory, Used microcomputer SCM control, which has a PlD self-tuning (automaticoptimization) function of intelligent temperature control instruments, a clear reading.high precision temperature control, strong anti-interterence, compact appearanceand other characteristics. lt is a cost-effective product and it can be widely used inmachinery, chemicals, ceramics, light industry, the rule Gold, petrochemical, heattreatment and other industries temperature automation system.

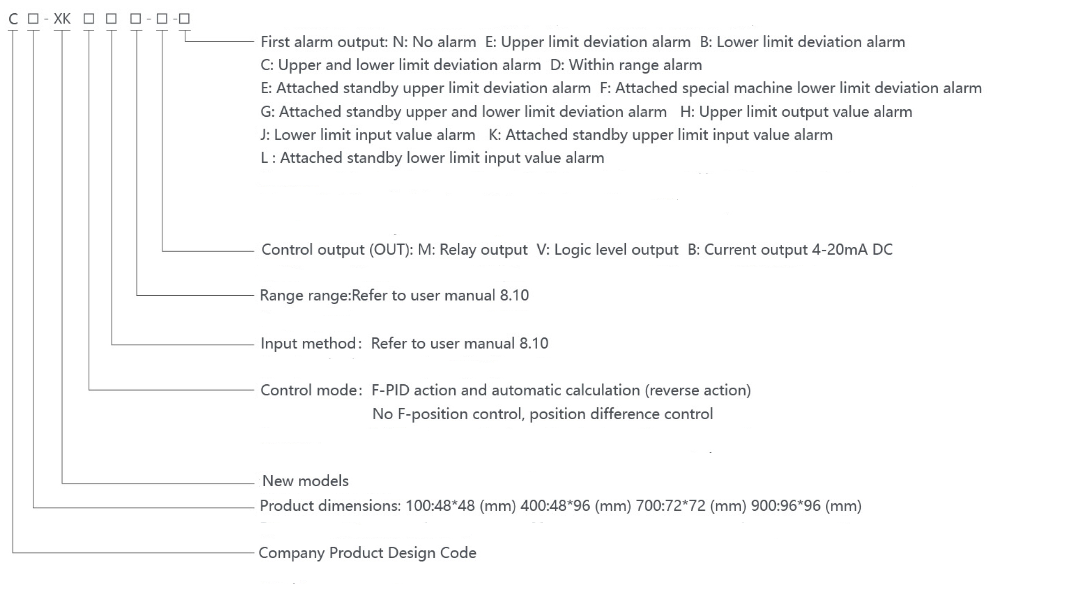

Model meaning:
Technical parameter：
| Specification | Details |
|---|---|
| Input | K, E, Pt100, Cu50 |
| Accuracy level | 0.5 |
| Resolution | 1°C / 0.1°C (Selectable) |
| Rated voltage | 220VAC ±10%, 50Hz |
| Power consumption | ≤4W |
| Ambient temperature | -5°C ~ 50°C |
| Relative humidity | 35%-85% (non-condensing) |
| Output | Relay Logic level SSR Current (4-20mA) Voltage (0-10V) |

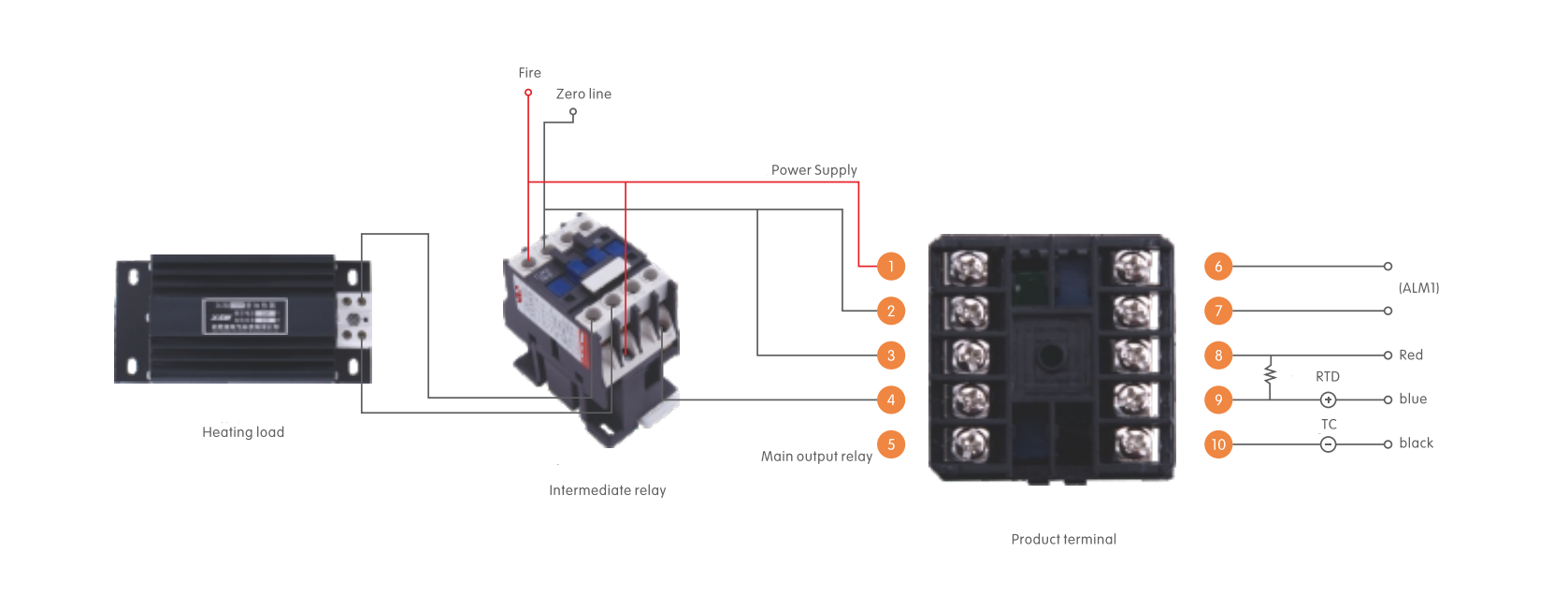

Physical wiring diagram example：
