Reliable SF6 Load Break Switch for Power Grids 24kV

This SF6 load break switch, an switchgear with the rated voltage of 12kV/24kV/36kV, adopted with SF6 gas as an arc-extinguishing and insulation medium, including the three contactors for switching-on and switching-off and to ground, and is characteistic in its small volume, its convenient for installation and operation and its the great adaptability with surroundings.

The SF6 load break switch and RLS-24D of SF6 load switch plus fuse combination can function to protect and control the electric equipments for power supply and transformer substations especially being suitable for ring net cabinet, cable branch cabinet and distribution switching substation.
The SF6 load break switch and RLS-24D load switch plus fuse combination

Product Showcase Video

Key Features

• Hermetic epoxy gas tank, stable SF6 insulation, low leakage risk
• Split external spring mechanism, visible 5-proof interlock, easy maintenance
• Tall upward bushings, ample space for large cable wiring
• Integrated 3-position (close/open/earth) design, reliable breaking capacity
• Standard size compatible with domestic RMUs, direct FLN36 replacement
• Long mechanical service life, stable performance for grid renovation
• Wide temperature & altitude adaptability for indoor cabinet installation

Service environment

• Air temperature：Maximum temperature: +40℃; Minimum temperature:-5℃
• Humidity：Monthly average humidity 95%; Daily average humidity 90%.
• Altitude above sea level：Maximum installation altitude: 2500m
• Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
• No frequent violent shake

Note: For short circuit breaking and peak current isbased on Fuseplus combination.

Technical data

Application Scenarios

• Ring main unit (RMU) installations
• Cable distribution networks
• Compact substations
• Industrial power distribution
• Renewable energy integration

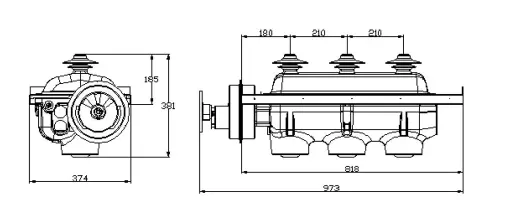

Dimension Drawing
