Pole Mounted Outdoor SF6 Load Break Switch 15kV

Add us on Google

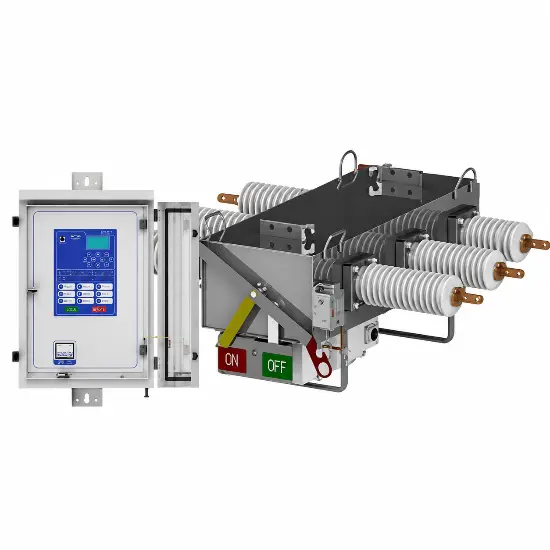

  • Pole Mounted Outdoor SF6 Load Break Switch 15kV

Key attributes

Brand ROCKWILL
Series RPS
Rated Voltage 15kV
Rated Normal Current 1250A
Rated Frequency 50/60Hz
Rated Load Breaking Current 1250A
Rated Line Charging Breaking Current 50A
Protection Grade of Mechanism Box IP67
Description

As a professional China Manufacturer, we support OEM/ODM customization for operating type, communication protocol, marking, bushings and secondary monitoring functions.

The RPS-15 15kV pole-mounted SF6 gas-insulated load break switch is KEMA type tested and fully compliant with IEC 62271-103:2021 and IEC 62271-1:2017+AMD1:2021. Developed for overhead pole installation, it offers multiple configurable versions: manual, motorized, remote control and automatic sectionalizer. It delivers safe, low-maintenance and intelligent switching solutions for global medium-voltage overhead distribution networks.

SF6 Load Break Switch Finished Product Showcase Video

Core Product Features

  • 3mm Stainless Steel Tank, Low Weld Seams & Internal Arc Resistance:High-quality stainless steel enclosure minimizes corrosion risks; withstands full internal arc faults without hot gas ejection to secure field operators.

  • Patented Spiral Spring Operating Mechanism:Independent spring unit with ROCKWILL® proprietary spiral spring, stable opening/closing speed to guarantee reliable load breaking and short-circuit making performance.

  • High-Visibility Reflective Position Indicator:Shaft-linked reflective marker, clear ON/OFF identification from ground level day and night, even under heavy rain or fog.

  • Full Sealed SF6 Gas Monitoring & Lock-out Protection:Hermetic gas chamber equipped with density switch, density gauge and low-pressure lock-out mechanism to prevent insulation failure from gas loss.

  • Optional Intelligent Secondary Control Terminal:Matching outdoor control box integrates full electrical monitoring, fault recording and remote control for unattended distribution automation.

  • IP67 Mechanism Box & Wide Environmental Adaptability:IP67 protection grade, operates stably from -40°C to +60°C, suitable for installation altitude up to 2500m.

Electronic automatic controller

Outdoor SF6 Load Break Switch Electronic automatic controller



Parameters

Parameter Item Technical Data
Rated Voltage (Ur) 15kV
Rated Frequency 50/60Hz
Rated Normal Current (Ir) 400A,630A,1250A
Power Frequency Withstand Voltage (to earth & between phases) 28kV
Power Frequency Withstand Voltage (across isolating distance) 32kV
Lightning Impulse Withstand Voltage (to earth and between phases) 95kV
Lightning Impulse Withstand Voltage (across the isolating distance) 110kV
Rated Load Breaking Current 1250A
Rated Number of Load-break CO Operations 400 times
Rated Line Charging Breaking Current 50A
Rated Cable Charging Breaking Current 50A
Rated Earth Fault Breaking Current 50A
Rated Short-time Withstand Current (Ik) / Duration 20kA / 4s
Rated Short-circuit Peak Withstand Current 50kA
Rated Short-circuit Making Current (peak) 50kA
Main Switch Making (50kA, Class E3) 5 times
Main Switch Making (31.5kA, Class E3) 10 times
Earthing Switch Making (50kA, Class E2) 3 times
Earthing Switch Making (31.5kA, Class E3) 5 times
Main Switch 5000 times
MEarthing Switch 2000 times
Protection Grade of Mechanism Box IP67
Standard Operating Ambient Temp -40°C ~ +60°C

External Dimensions

Outdoor SF6 Load Break Switch External dimensions

Monitoring Functions



Monitoring Functions
Primary/Secondary Phases and Earth Currents
Direction
Primary/Secondary Line and Phase Voltages
Apparent Power and Power Factor
Real and Reactive Power
Historical Demand Record
Positive Phase Sequence Voltage & Current
Negative Phase Sequence Voltage & Current
Zero Phase Sequence Voltage
Frequency
Binary Input/Output status
Trip circuit healthy/failure
Time and date
Fault records
Event records

Environmental requirement

Service environment(area/altitude/Minimum and maximum temperatures)

Air temperature: Maximum  temperature: +85℃; Minimum temperature:-45℃
Humidity: Monthly average humidity 95%; Daily average humidity 90%
Altitude above sea level: Maximum installation altitude: 2500m or more higher.
Ambient air not apparently polluted by corrosive and flammable gas, vapor etc. No frequent violent shake

Why choose Rockwill?

  • 20+ years experienced China Manufacturer, full production chain, OEM/ODM available
  • IEC / ANSI / IEEE certified, third-party lab verified, ISO management system
  • Digital quality control, stable performance & competitive cost
  • Global service network across 100+ countries, one-stop grid solution & technical support

Solutions - SF6 load break switch

  • Tanzania 33kV SF6 Load Break Switch Seal Failure Solution: EPDM Material Upgrade and IEC 62271 Repair Guide
    1.What Extreme Challenges Does the Tanzania 33kV LBS Seal System Face?This report provides in-depth technical countermeasures for the high-frequency failure ofSF6 Load Break Switch (LBS) seal systemsin Tanzania's 33kV distribution network. Based on field data from Dar es Salaam (coastal) and Dodoma (semi-arid), the primary failure drivers areaccelerated O-ring degradation and electrochemical corrosion. According to our team's operational statistics in East Africa from 2019–2025, leaks at t

Case Studies - SF6 load break switch

  • 84 Units 33kV Outdoor SF6 Load Break Switches for Tanzania White City Power Project
    Rockwill has successfully delivered 84 units of 33kV outdoor SF6 load break disconnectors. The equipment has been officially commissioned and connected to the grid for operation in the White City Power Project of Tanzania REA Phase II, empowering the upgrading and improvement of rural power grids in Tanzania.01 General Overview: Tanzania White City 33 kV Grid Upgrade Project1.1 Project BackgroundThe Phase II project (REA II) of the Tanzania Rural Energy Agency (REA) is one of the largest rural e
  • Rockwill Strengthens Partnership in Indonesia with Bulk Delivery of RLS SF6 Load Break Switches
    Project SummaryIn July 2022, Rockwill successfully completed a significant bulk shipment of RLS SF6 Load Break Switches to the Indonesian market. This large-scale delivery underscores the growing demand for Rockwill's high-performance electrical components in Southeast Asia and marks another milestone in our long-standing and trusted partnership with local clients.Solution at a GlanceThe RLS SF6 Load Break Switches supplied are designed for reliable circuit isolation and protection in medium-vol

Documentation Resource Library SF6 load break switch

RPS 38kV SF6 Load break switch(LBS) technology specification
Restricted
RPS 38kV SF6 Load break switch(LBS) technology specification RPS 38kV SF6 Load break switch(LBS) technology specification
Technical Data
English
PDF
RPS 15/27kV SF6 Load break switch(LBS) technology specification
Restricted
RPS 15/27kV SF6 Load break switch(LBS) technology specification RPS 15/27kV SF6 Load break switch(LBS) technology specification
Technical Data
English
PDF
RPS Pole Mounted Load Break Switch(LBS)
Restricted
RPS Pole Mounted Load Break Switch(LBS) RPS Pole Mounted Load Break Switch(LBS)
Installation Manual
English
PDF
RPS Pole-Mounted SF6 Load Break Switch(LBS)
Restricted
RPS Pole-Mounted SF6 Load Break Switch(LBS) RPS Pole-Mounted SF6 Load Break Switch(LBS)
Catalogue
English
PDF
15kV Switching Station requirements in Ethiopia Tender Documents
Restricted
15kV Switching Station requirements in Ethiopia Tender Documents 15kV Switching Station requirements in Ethiopia Tender Documents
Others
English
PDF
RSP specification for mv smart line sectionalizer
Restricted
RSP specification for mv smart line sectionalizer RSP specification for mv smart line sectionalizer
Others
English
PDF
