| Brand | ROCKWILL |
| Series | RLS |
| Rated voltage | 12kV |
| Rated normal current | 630/800A |
| Rated short-circuit making current peak | 80kAp |
| Rated frequency | 50 / 60Hz |
Rockwill RLS-12 indoor SF6 load break switch is a compact gas-insulated primary device developed for 12 kV indoor medium-voltage distribution systems. It adopts SF6 gas as both insulating and arc-extinguishing medium, equipped with standard three-position contact structure to realize Close, Open and Earthing functions.
| Item | Unit | 12 kV Parameter Value |
|---|---|---|
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 / 60 |
| Rated normal current | A | 630 / 800 |
| 1 min power frequency withstand voltage (Phase-to-earth / Across breaking gap) | kV | 38 / 48 |
| Lightning impulse withstand voltage (peak, Phase-to-earth / Across breaking gap) | kVp | 75 / 85 |
| Rated short-circuit making current (peak) | kAp | 80 |
| Rated active load & closed-loop breaking current | A | 630 |
| Rated cable charging breaking current | A | 10 / 50 |
| Cable charging breaking current under earth fault | A | 20 |
| Short-time withstand current (2 s, r.m.s.) | kA | 31.5 |
| Mechanical endurance operations | times | 3000 / 5000 |
Note: 1) According to IEC standards, this feature is effective at a maximum ambient temperature of 40 ℃ and an average temperature below 35 ℃ for 24 hours. At higher temperatures, it is necessary to perform rated current derating calculations
(2) This is the expected value, and the actual current is limited by the fuse
Plateau Installation Reminder：For installation sites over 1000 m altitude, please consult the manufacturer before order placement. Custom reinforced insulation structure is required to adapt to high-altitude low-pressure environments.

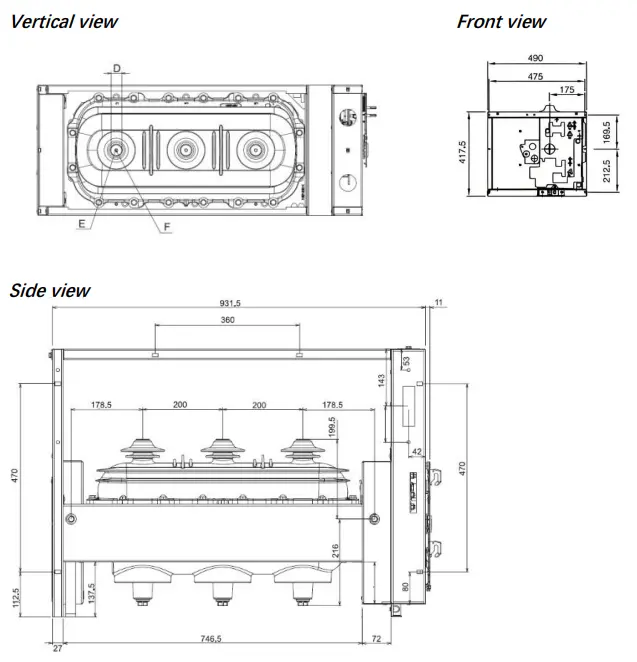

200mm phase distance
